7. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the
latest version of flash software, which is available on
Nokia Online.

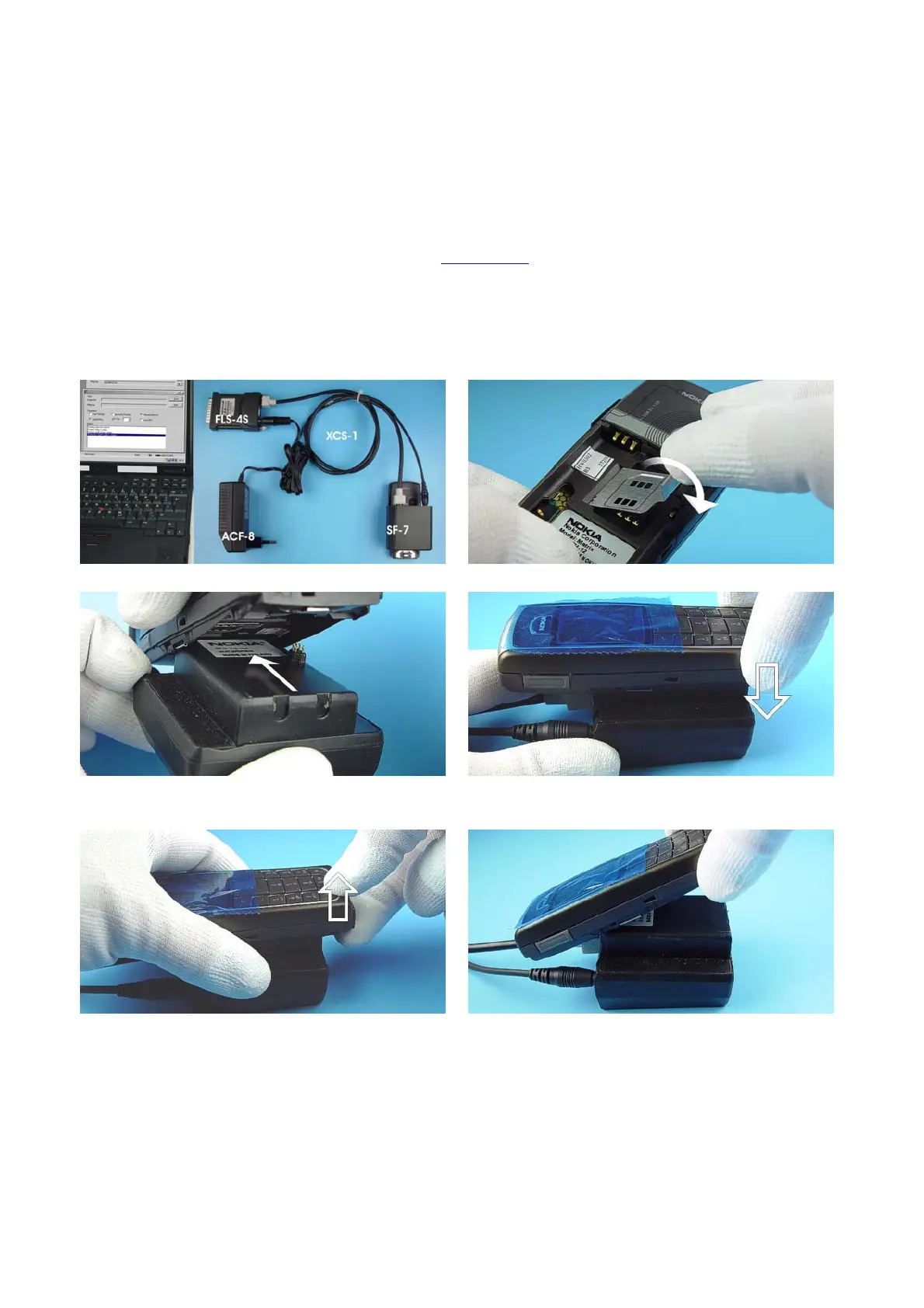

Flash Concept – (Point of Sales)
It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash Adapter
will be damaged.
Close SIM Lid before inserting the Flash Adapter.
Insert the Flash Adapter SF-7 like a battery, start at the
Battery Connector side.
Now, push down the bottom side of the phone, do not
use too much force.
When removing the phone, always start from the
bottom side of the unit.
Take away the unit now.
