Nokia 6230 Service Manual

nokia
EOPLE CONNECTING P
20 (23) Approved 3.0
CMO Operations & Logistics
DJk
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 24.01.2005
Service Manual 6230/i Level 1&2 Copyright © 2004-2005 Nokia Corporation. All rights reserved.
PAGE
14. BLUETOOTH & INFRARED TEST
Bluetooth test
You need another Bluetooth device (e.g. 6310i) to do a GoNoGo test.
Make sure that Bluetooth is activated in the reference and in the test unit. The distance of the devices should be
not more than 5m from each other.
Infrared test
You need another infrared device (e.g. 6310i) to do a GoNoGo test. The infrared windows of the devices must be
directed to each other and should have a distance of approximate 15 cm. Make sure that infrared is activated in
receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices. This
device is a Class 1 Laser product.

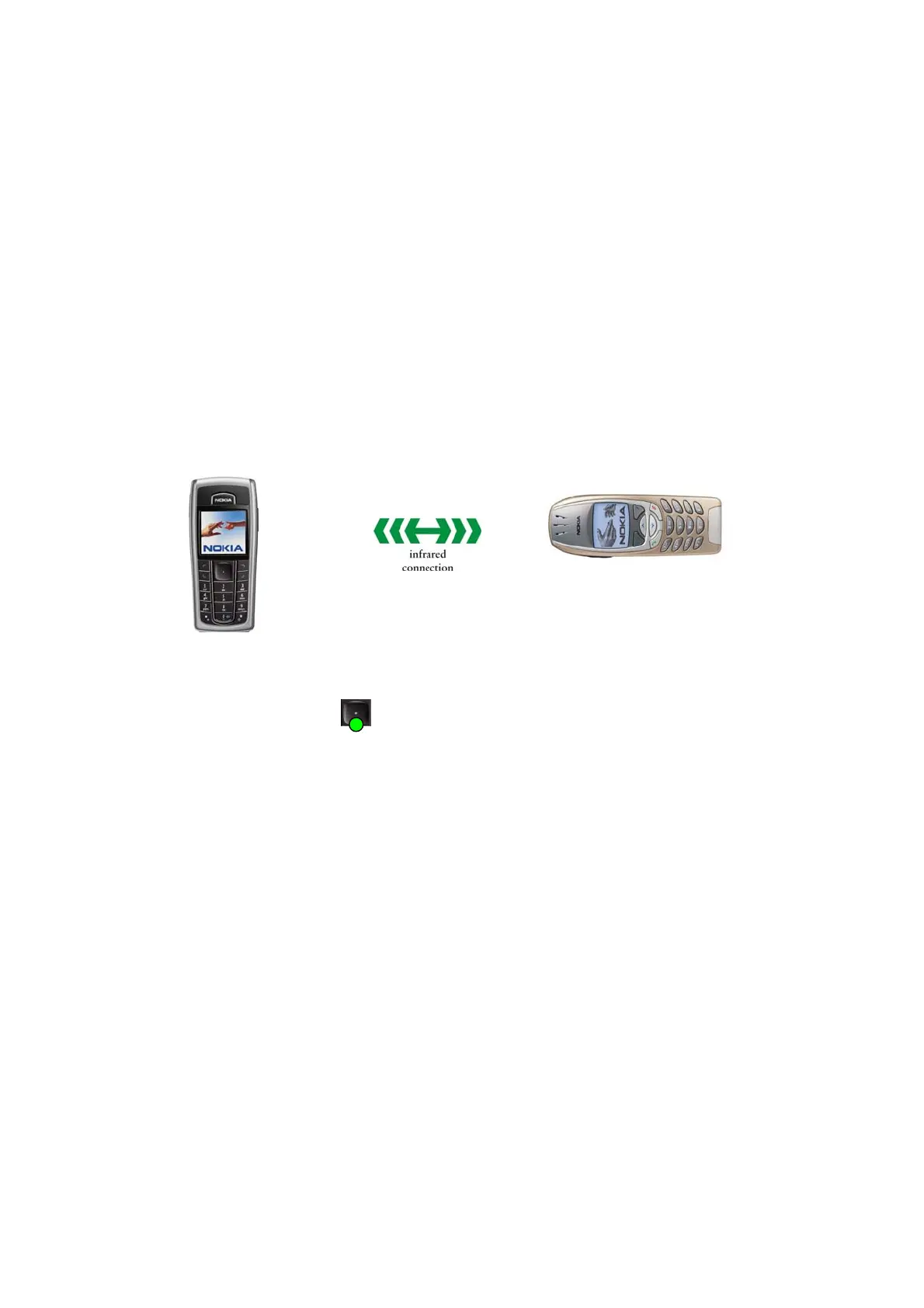

Test unit Bluetooth /infrared activated Reference unit, Bluetooth /infrared activated
Settings on the test unit:
• From Home Menu, push the Menu
key down. This displays Phonebook entries.
• If phone and SIM memory is empty, create one new entry.
For 6230 RH-12
• Choose one phonebook entry and select Details
• Select Options
• Select Send bus. Card
For 6230i RM-72
• Choose one phonebook entry and select Options
• Select Contact details
• Choose one entry and select Options
• Select Send business card
A) for infrared test: Select Via infrared
If sending of business card fails, make sure again that infrared windows are directed to each other and
infrared is activated in reference device. Then try again sending.
Test was successful, if you get this message on receiver device.
You will not get a confirmation on sender device.
B) for Bluetooth test: Select Via Bluetooth (Enter a phone name if needed)
Search window appears, if all Bluetooth devices in range will be displayed, the test is successful!
• Press red receiver button for Home Menu.
Note: If the Bluetooth is activated, switch it of!

Nokia 6230 Specifications

General

Display Type	TFT, 65K colors
Resolution	128 x 128 pixels
Internal Memory	6 MB
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Stand-by	Up to 300 h
Talk time	Up to 5 h
Status	Discontinued
Network	GSM
2G bands	GSM 900 / 1800 / 1900
SIM	Mini-SIM
5-way navigation key	Yes
Downloadable wallpapers, screensavers	Yes
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Infrared port	Yes
USB	Pop-Port
Messaging	SMS, MMS, Email, Instant Messaging
Browser	WAP 2.0/xHTML
Java	Yes, MIDP 2.0
Predictive text input	Yes
Organizer	Yes
Voice dial	Yes
Brand	Nokia
Weight	97 g (3.42 oz)
Display Size	1.5 inches
Card Slot	MMC
Main Camera	VGA
Announced	2003
GPRS	Class 10
Phonebook	1000 entries
Alert types	Vibration; Downloadable polyphonic ringtones
Games	Yes
Colors	Black
SAR	0.73 W/kg (head)
Dimensions	103 x 44 x 20 mm, 76 cc
Bluetooth	Yes, v1.1
Radio	FM radio
