Nokia 6230 Service Manual

nokia
CONNECTING PEOPLE
PAGE 15 (23) Approved 3.0
CMO Operations & Logistics
DJk
WW Service Solutions & Development
Bochum / Germany CONFIDENTIAL 24.01.2005

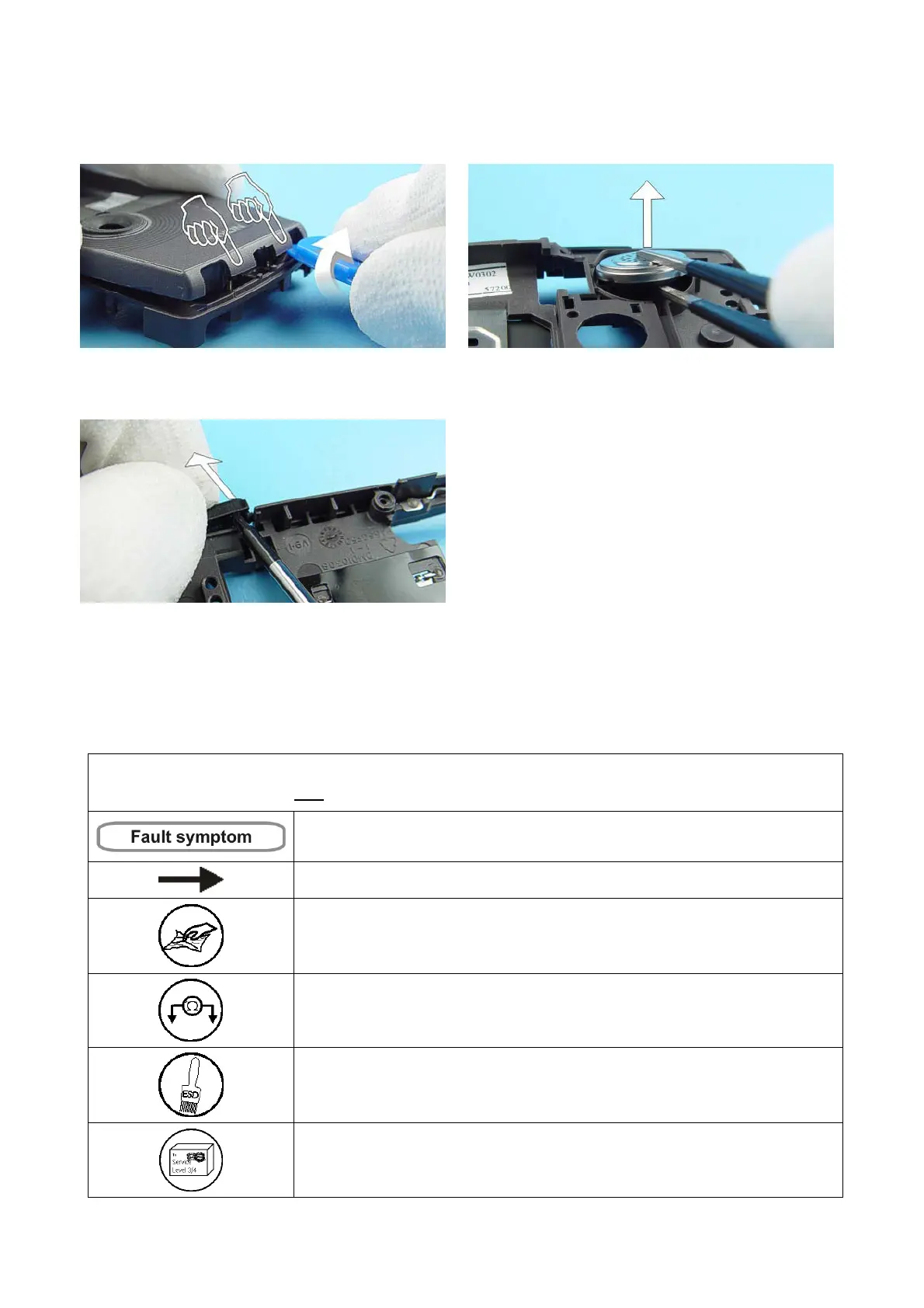

Place the opening tool between Antenna and D-Cover.
Use the SRT-6 as a lever to open the clips when
removing Antenna.
Remove the IHF Speaker by using tweezers.
A TORX driver can be used to push out the IrDA
Window of its fixing.
9. LEGEND FOR QUICK TROUBLE SHOOTER
This legend is valid for all parts of the Quick Trouble Shooter
Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward. Only
underlined components ( e.g.
I002) can be changed.
The start point of repair activities regarding the appeared fault symptoms.
Follow the arrows step by step
Pads or contacts: Check optical and mechanical condition particularly regarding
to corrosion. Clean if necessary.
Measure component for electrical functionality and change, if needed.
(Level 2 only)
Pads or contacts: Check optical and mechanical condition particularly regarding
to corrosion. Clean with ESD brush only, if necessary.
No more actions possible send product to the appropriate service partner with
higher service level.
Service Manual 6230/i Level 1&2 Copyright © 2004-2005 Nokia Corporation. All rights reserved.

Nokia 6230 Specifications

General

Display Type	TFT, 65K colors
Resolution	128 x 128 pixels
Internal Memory	6 MB
Battery Type	Removable Li-Ion 850 mAh battery (BL-5C)
Stand-by	Up to 300 h
Talk time	Up to 5 h
Status	Discontinued
Network	GSM
2G bands	GSM 900 / 1800 / 1900
SIM	Mini-SIM
5-way navigation key	Yes
Downloadable wallpapers, screensavers	Yes
Video	Yes
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
Infrared port	Yes
USB	Pop-Port
Messaging	SMS, MMS, Email, Instant Messaging
Browser	WAP 2.0/xHTML
Java	Yes, MIDP 2.0
Predictive text input	Yes
Organizer	Yes
Voice dial	Yes
Brand	Nokia
Weight	97 g (3.42 oz)
Display Size	1.5 inches
Card Slot	MMC
Main Camera	VGA
Announced	2003
GPRS	Class 10
Phonebook	1000 entries
Alert types	Vibration; Downloadable polyphonic ringtones
Games	Yes
Colors	Black
SAR	0.73 W/kg (head)
Dimensions	103 x 44 x 20 mm, 76 cc
Bluetooth	Yes, v1.1
Radio	FM radio
