Nokia MEDIAMASTER 9780 S User Manual

GB 6

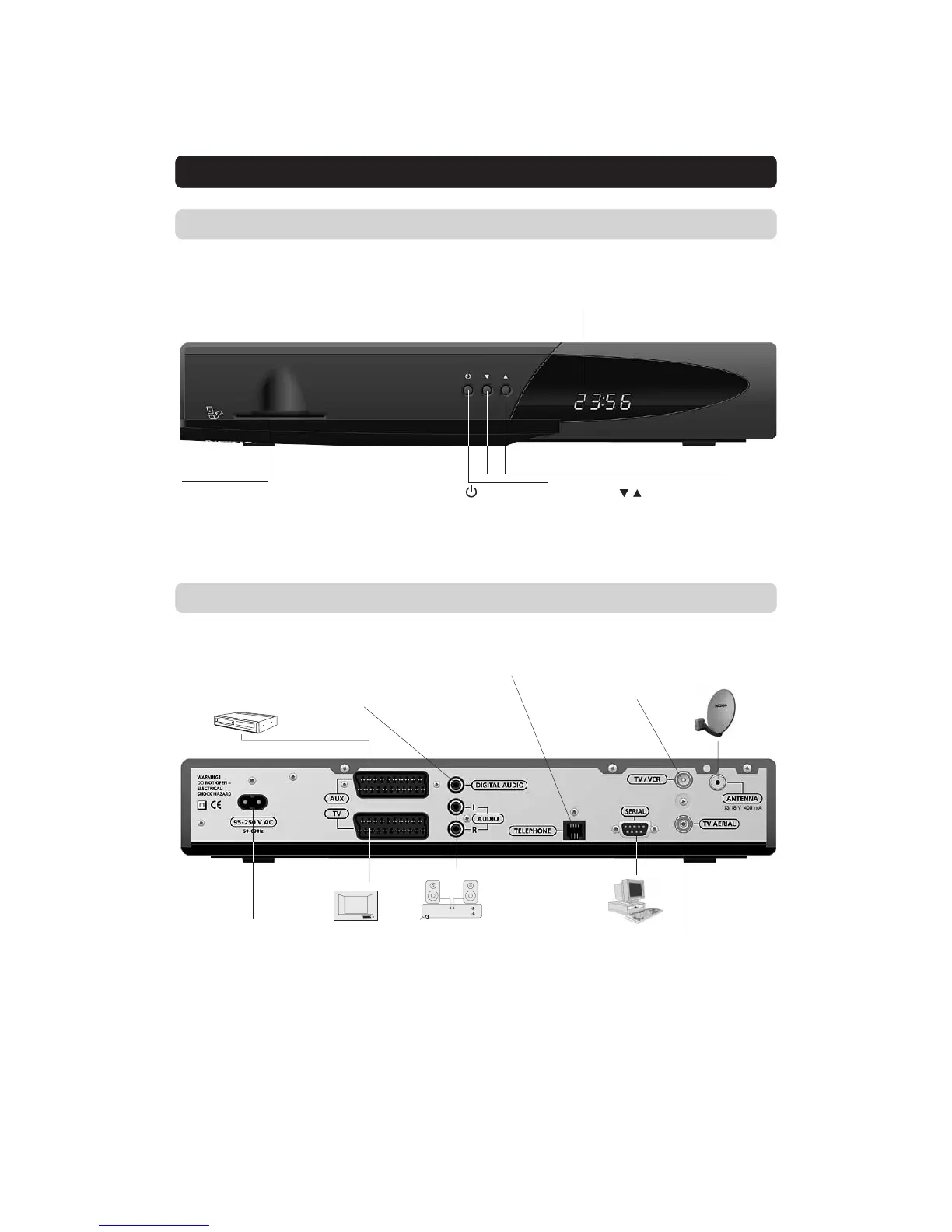

FRONT AND REAR PANEL
Rear Panel
to put the Mediamaster
in and out of standby
mode
to move up/down in
the menus and to
change channels.
Display
shows channel number, error messages, remote
control commands and time in standby mode
Front Panel
Slot
for a Smartcard
AUDIO L R
phono connectors
Stereo outputs for
connection to a HiFi
system
TV SCART
for connection
to the TV
AUX SCART
for connection to a
VCR, or an analogue
satellite receiver
* LNB cable also feeds the LNB with a supply voltage of
13/18 V (V/H polarisation) and a 0/22 kHz signal
(bandswitch). Max LNB current 400 mA.
DIGITAL AUDIO
phono connector
S/PDIF output for
connection to
a HiFi system
Mains lead
95-250 V AC
50-60 Hz
ANTENNA *
Satellite dish
input (F-connec-
tor)
SERIAL PORT
to read and load
data information
TV AERIAL
for a terrestrial
(conventional)
TV aerial
TV/VCR
for an RF-cable to
the aerial input of
the TV or VCR
TELEPHONE
Connection to the tel-
ephone
