GB 9

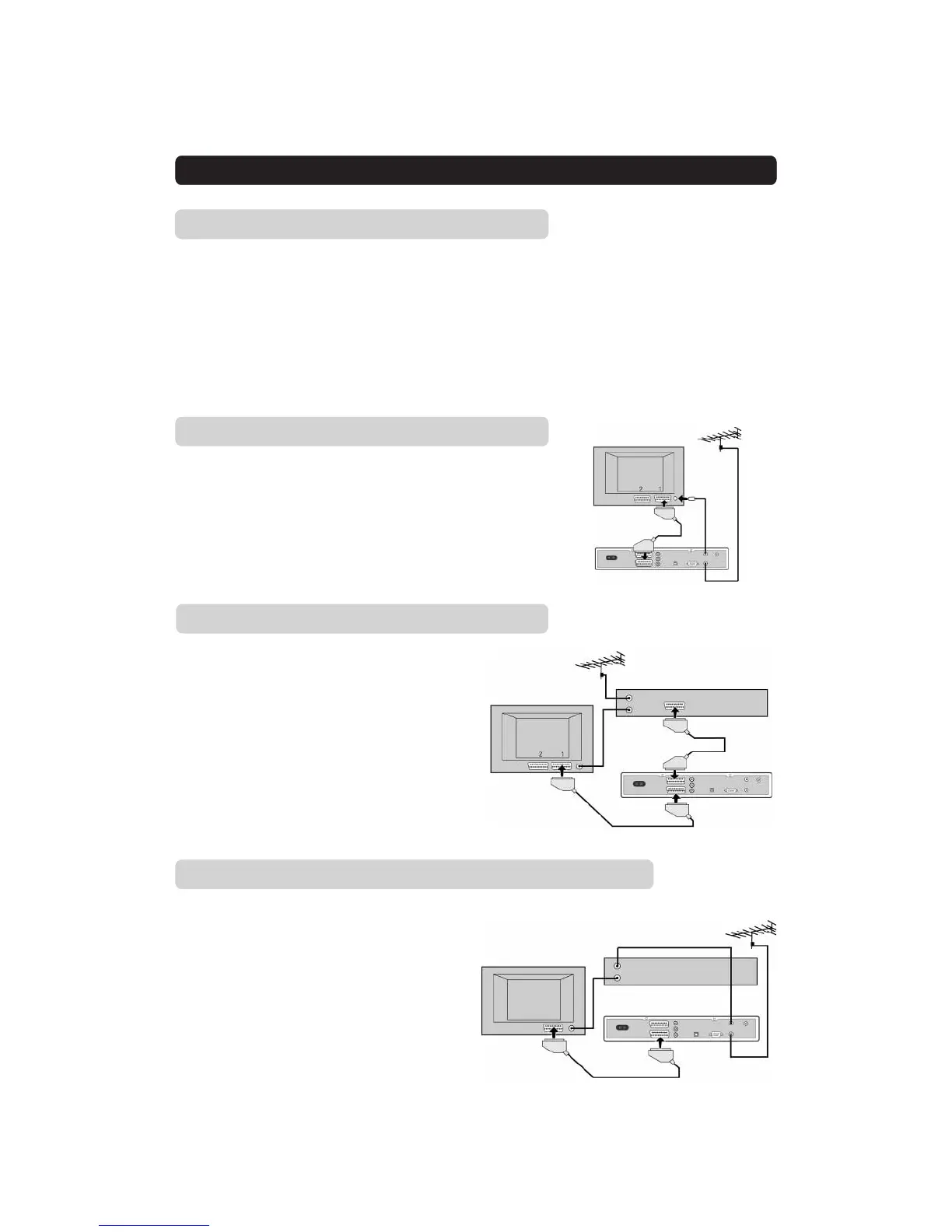

Connecting to the TV
• Connect the SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
• Connect an RF lead from the TV/VCR output on the Media-
master to the RF input socket on the TV.
• Connect the TV aerial to the TV AERIAL input socket on the
Mediamaster.
Connecting the Mediamaster
There are many different types of TV/VCR and other equipment
that you can connect to the Mediamaster.
In this manual you will see some of the most common ways to
connect your equipment.
If you use RF leads you will have to tune your TV and VCR to the
Mediamaster output channel (see page 11).
If you have problems with your connections and need help, con-
tact your Service Provider.
RF
SCART
Connecting a TV and VCR
Refer to your VCR’s manual for full instructions.
• Connect one SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
• Connect another SCART lead between the VCR
and the AUX SCART socket on the
Mediamaster.
• Connect the RF lead from the RF output on the
VCR to the TV aerial input on the TV.
• Connect the TV aerial to the RF input socket on the VCR.
VCR
Mediamaster
SCART
SCART
RF
• Connect a SCART lead between the main SCART socket on
the TV and the TV SCART socket on the Mediamaster.
• Connect an RF lead from the RF output on the
VCR to the TV aerial input on the TV.
• Connect an RF lead from the TV/VCR output on
the Mediamaster to the RF input socket on
the VCR.
• Connect the TV aerial to the TV AERIAL input
socket on the Mediamaster.
VCR
Mediamaster
SCART
RF
RF
CONNECTION OF THE MEDIAMASTER
If your TV has a SCART socket, but your VCR does not
