NORAUTO NS-228 DBT User Manual

139

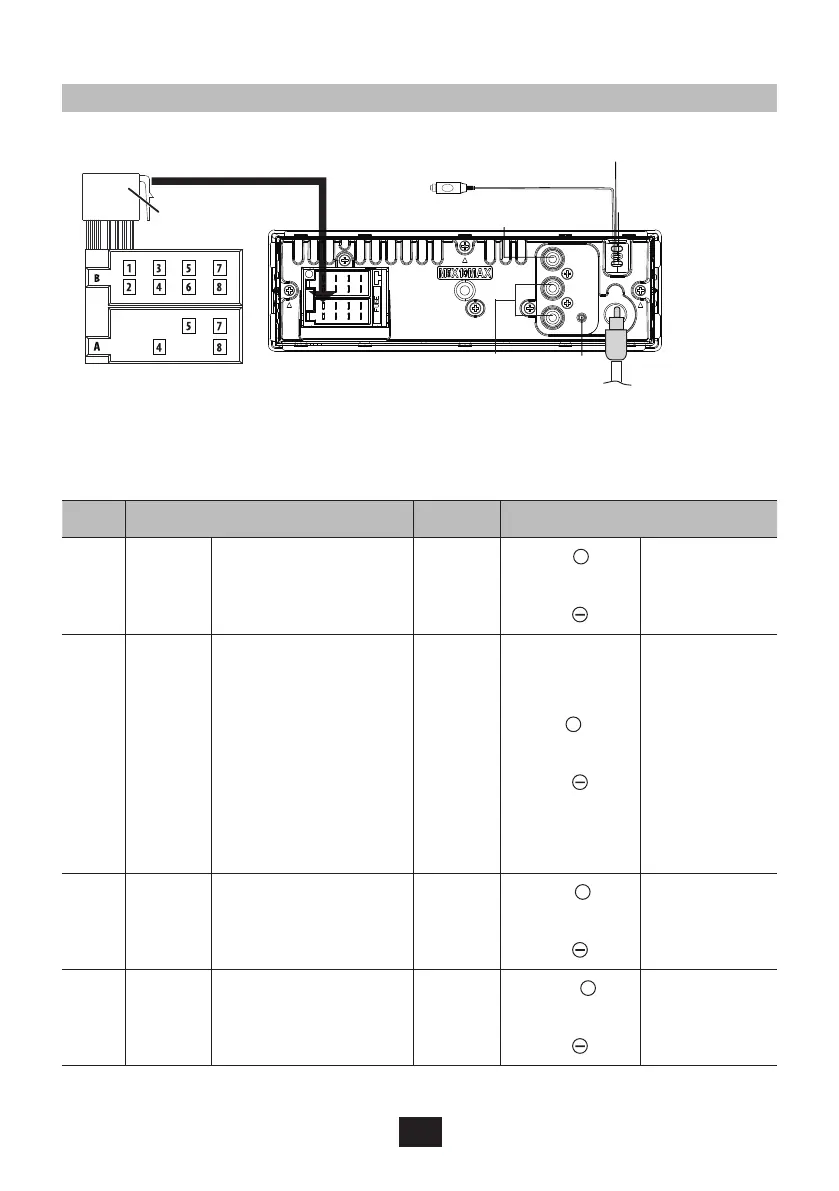

Wiring Connection
ISO Connector
External Mic Jack (Black)
OE Remote(Purple)
Ground (Black)
Rear RCA Output
(Left) (Right)
DAB
Antenna Jack (not
included)
SUB-W
ISO Connector Wiring Chart
Pin Color and function Pin Color and function
A4 Yellow Battery (+) B1/B2
Violet
+
/
Violet/
Black
Right rear
speaker
A5 Blue
Connect to
system control
terminal of the
power AMP or
auto antenna
relay control
terminal (Max
150MA 12VDC)
B3/B4
Grey
+
/
Grey/
Black
Right front
speaker
A7 Red Ignition (ACC) B5/B6
White
+
/
White/
Black
Left front
speaker
A8 Black Ground B7/B8
Green
+
/
Green/
Black
Left rear
speaker

NORAUTO NS-228 DBT Specifications

General

Brand	NORAUTO
Model	NS-228 DBT
Category	Car Receiver
Language	English
