B4400/B4600 User’s Guide – Operator panels > 16
O
PERATOR
PANELS
This chapter describes the function of the operator panel on your
printer. It is useful to describe the Status Monitor software at this
point as it provides the B4400, B4400n status information and
the equivalent of the menu control panel on the B4600, B4600n,
B4600PS, B4600nPS. (See “Printer Drivers” for installation of the
Status Monitor.)
B4400, B4400
N
O
PERATOR
PANEL

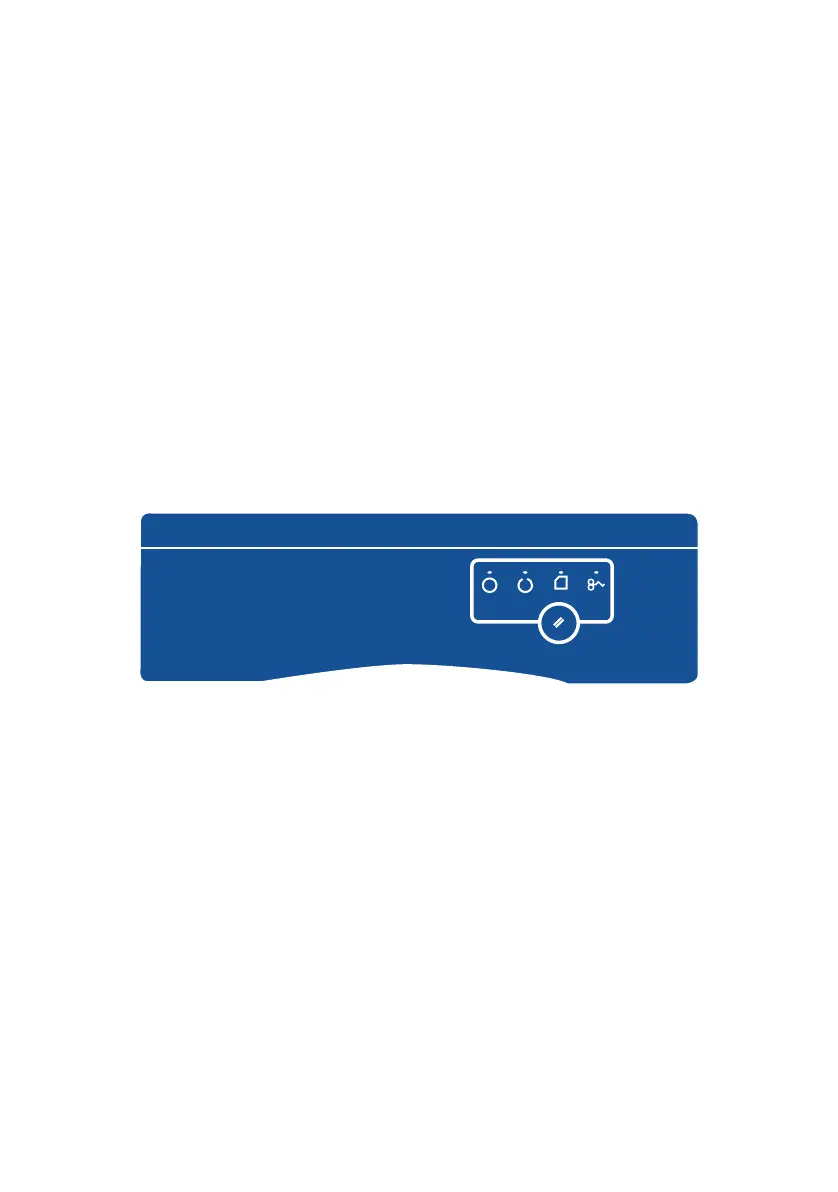

The B4400, B4400n operator panel consists of 4 indicating LEDs
and an Online button. From left to right, the LEDs indicate Power
On, Ready, Manual feed and Error.
LED
INDICATORS
The LED indicators show the status of the printer and have five
operating conditions as follows:
> Indicator off
> Indicator on
> Flash 1 - slow blink - 1 long flash every 4 seconds
> Flash 2 - blink - 1 flash per second
> Flash 3 - rapid blink - 4 flashes per second.
All four LED indicators come on momentarily when power is
switched on using the main power switch.
