B4400/B4600 User’s Guide – Operator panels > 32
B4600, B4600
N
, B4600PS, B4600
N
PS
O
PERATOR
PANEL

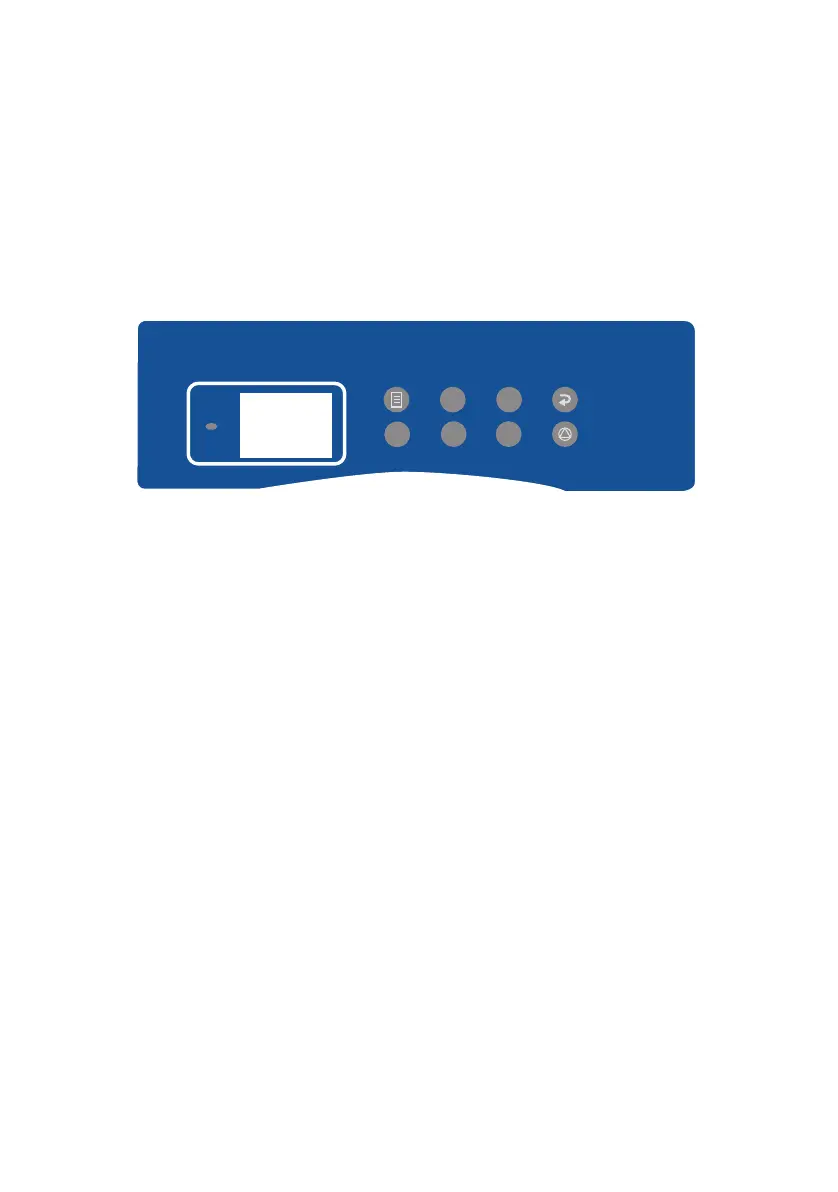

The B4600, B4600n, B4600PS, B4600nPS operator panel
consists of a menu driven control panel, an LCD display and a LED
indicator.
P
ANEL
ELEMENTS
Ready indicator (green). ON - ready to receive data. FLASHING
indicates processing data or error.
1. Liquid crystal display. (LCD) panel. Two rows of up to 8
alphanumeric digits displaying print status, menu items in
menu mode and error messages.
2. Menu Button. Press briefly to enter the MENU mode.
Press briefly again to select the next menu. Press for more
than 2 seconds to scroll through the different menus.
3. Item (+) button. Press briefly to scroll forward to the
next menu item.
4. Value (+) button. Press briefly to scroll forward to the
next value setting for each menu item.
5. Select button. Press briefly to select the menu, item or
value indicated on the LCD panel.
6. Cancel button. Press to cancel a print job.
7. Value (–) button. Press briefly to scroll backward to the
previous value setting for each menu item.
MENU
READY
ITEM VALUE SELECT
CANCEL
++
-
-
-
ON LINE
