8. Maintenance
This section describes how to replace the image drum and toner cartridge with new ones at
the same time.
• Use extra care when handling the image drum (the green cylinder), because it is fragile.
• Do not expose the image drum to direct sunlight or strong light (approximately 1,500 lux or more). Do not leave the
image drum for 5 minutes or more even under room light.
1
Prepare new image drum and toner cartridge.
2

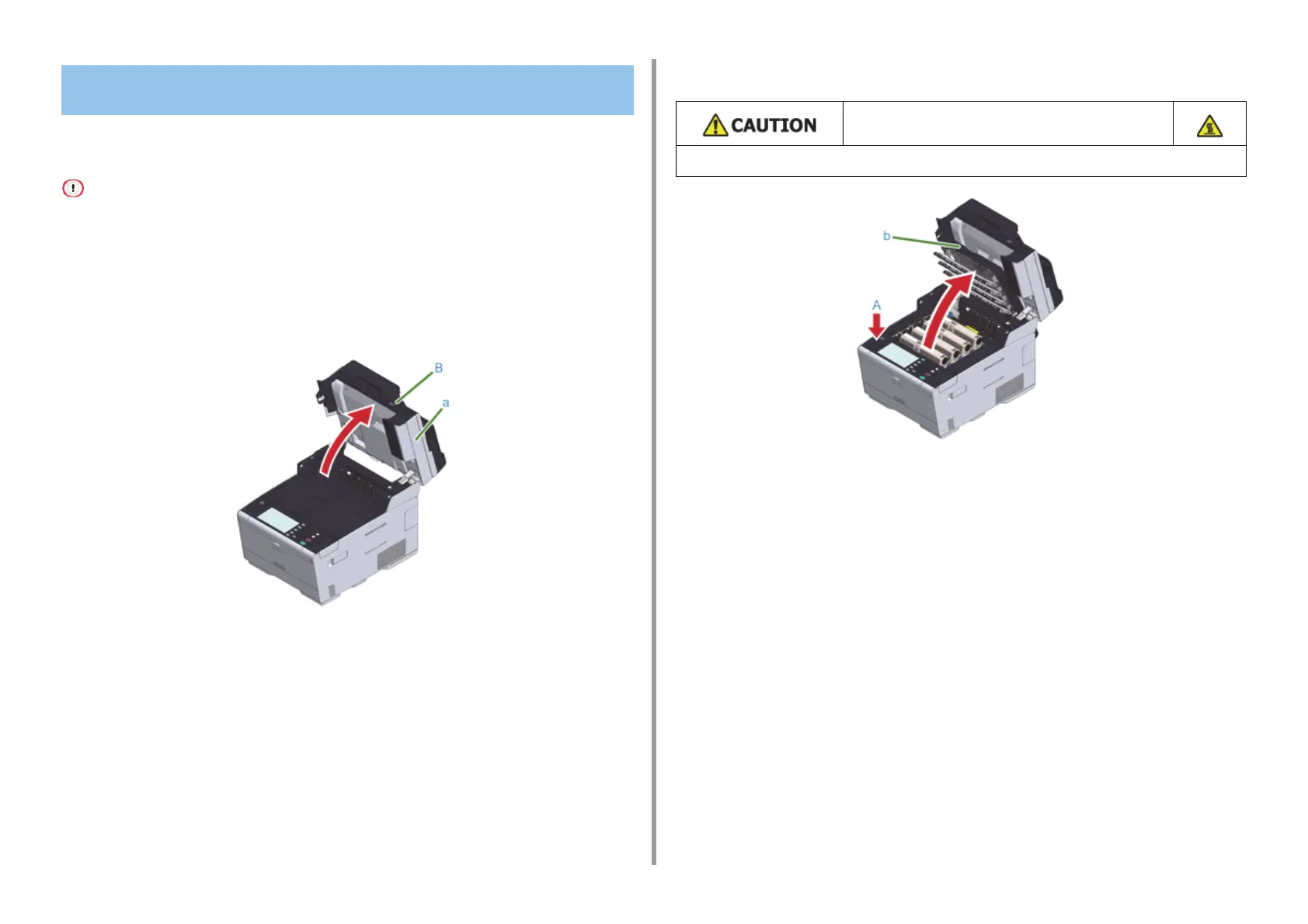

Hold the handle (B) and open the scanner unit (a) completely.
3
Press the button (A) and open the output tray (b) completely.
4
Identify an empty toner cartridge by its label color.
5
Remove the image drum (c) from the machine and place it on a flat surface.
Replacing the Image Drum and Toner Cartridge at the Same
Time
Possible to get burned.
The fuser unit is extremely hot. Do not touch it.
To Next Page
