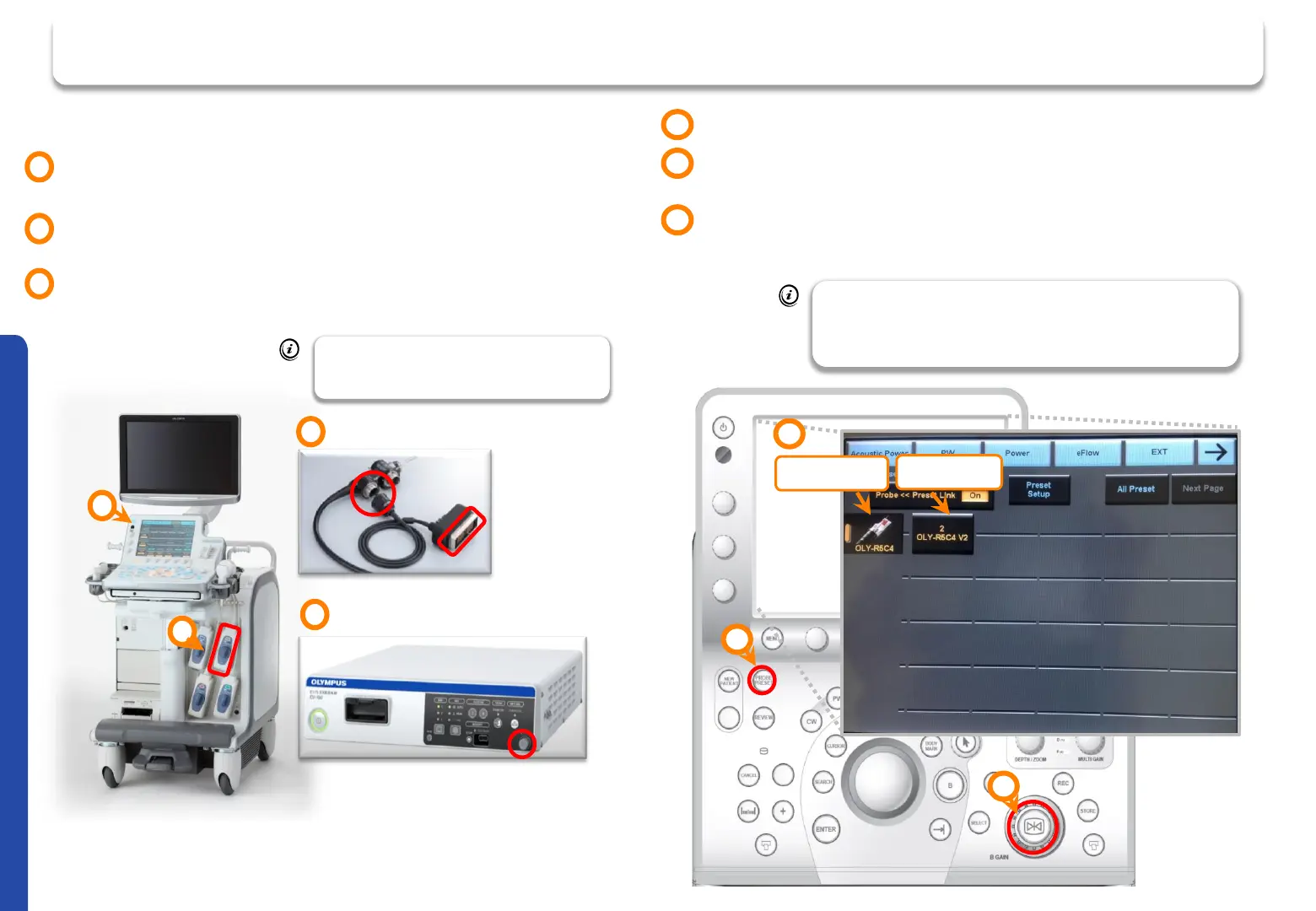

Getting Started – basic setup and shutdown
Attach EUS Connector Cable to the scope and to port, located
on the front side of the main body
If Picture-in-Picture is required, connect image cable from the
back of the main body to the “PiP” port on video processor
Holding the power button turns the ALOKA on/off. The power
switch at the back of the main body can remain on
1
2
3
*Settings may differ if your preset has been personalised
3
2
1
Press PROBE PRESET
Select the desired probe and preset on the touchscreen (both
should be yellow)
Press B GAIN to freeze
the image. Ensure image is frozen before
changing probes, unplugging EUS cable or turning power off
5
6
4
4
Probe
Preset
5
6
1
If storing images on ALOKA, a patient
file must be created (see next page).
• Yellow tiles are functions that are “active”
• Blue tiles are functions that are available but “inactive”
• Multiple presets can be created and linked to a probe
Aloka Prosound F75 Quick Reference Guide
