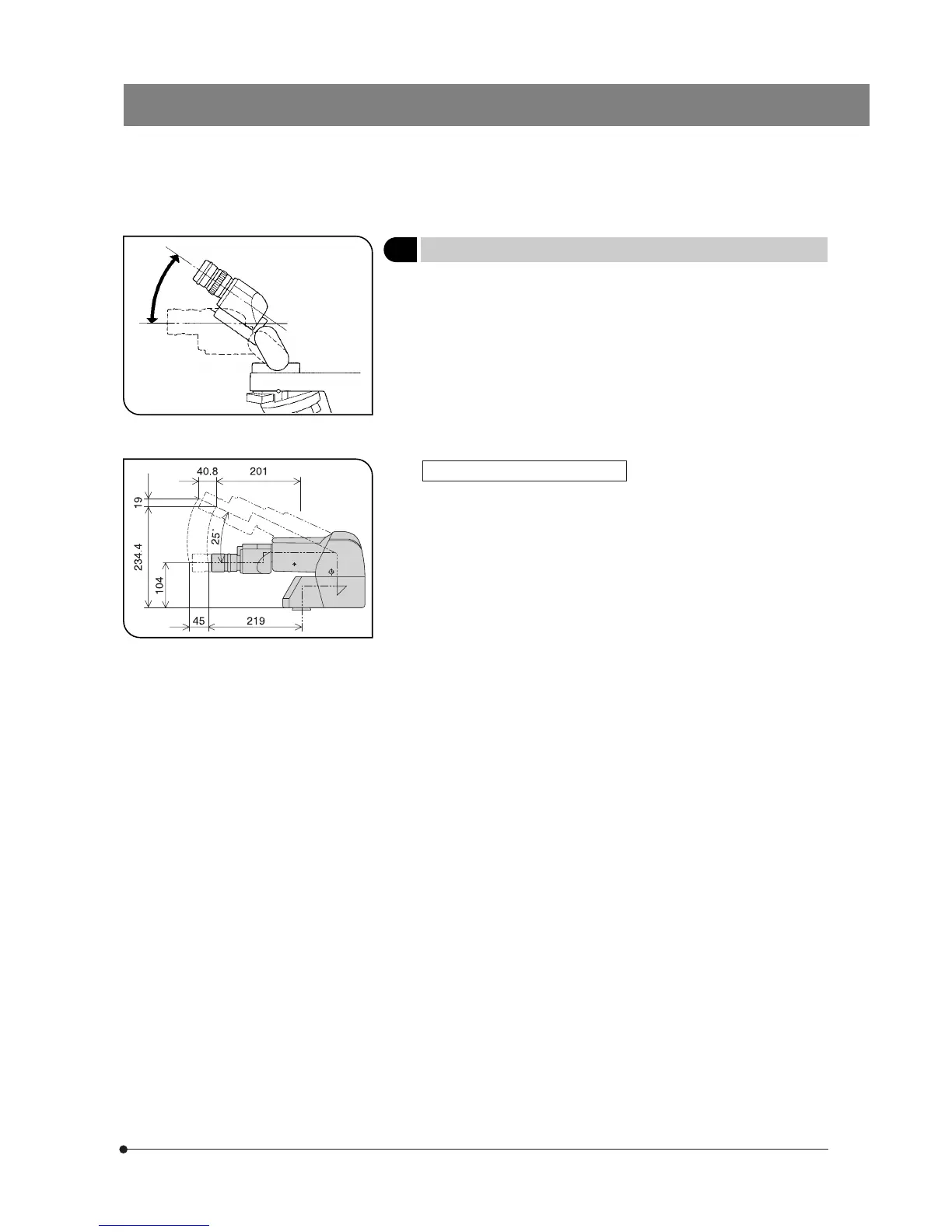

6 Adjusting the Tilt (with the U-TBI3)
(Fig. 27)
}Adjust the height and tilt of the observation tube to obtain the most com-
fortable viewing position.
Holding the binocular section with both hands, raise or lower it to the
desired position.
# Never attempt to force the binocular section past the upper or lower
stop position. Applying excessive force could destroy the limiting
mechanism.
}The U-TBI3 can be used in combination with only one intermediate at-
tachment.
}If you need photography using the U-TBI3, use the U-TRU trinocular tube.
With the U-ETBI/U-TTBI (Fig. 28)
The U-ETBI and U-TTBI are ergonomic observation tubes with normal
field, capable of the tilting adjustment as well as the adjustment of the
eyepiece position toward the front and rear (by 45 mm). The U-ETBI is the
erect image model and the U-TTBI is the inverted image model, and
both models are of the same size.
#The intermediate attachments that can be combined with the
U-TTBI are limited. For details, please contact Olympus.

Olympus BX51 Specifications

General

Type	Upright microscope
Optical System	UIS2 (Universal Infinity System)
Eyepiece	Widefield, 10x (FN 22)
Eyepiece Tube	Binocular, Trinocular (various models and inclination angles)
Nosepiece	Revolving nosepiece (5-position or 6-position)
Stage	Mechanical stage
Focus	Coaxial coarse and fine focus knobs
Condenser	Abbe condenser
Power Supply	100-240V, 50/60Hz
Observation Methods	Brightfield, Phase contrast, Fluorescence, Polarized light, Darkfield, DIC
Illumination	Transmitted light (halogen or LED)
