BX60

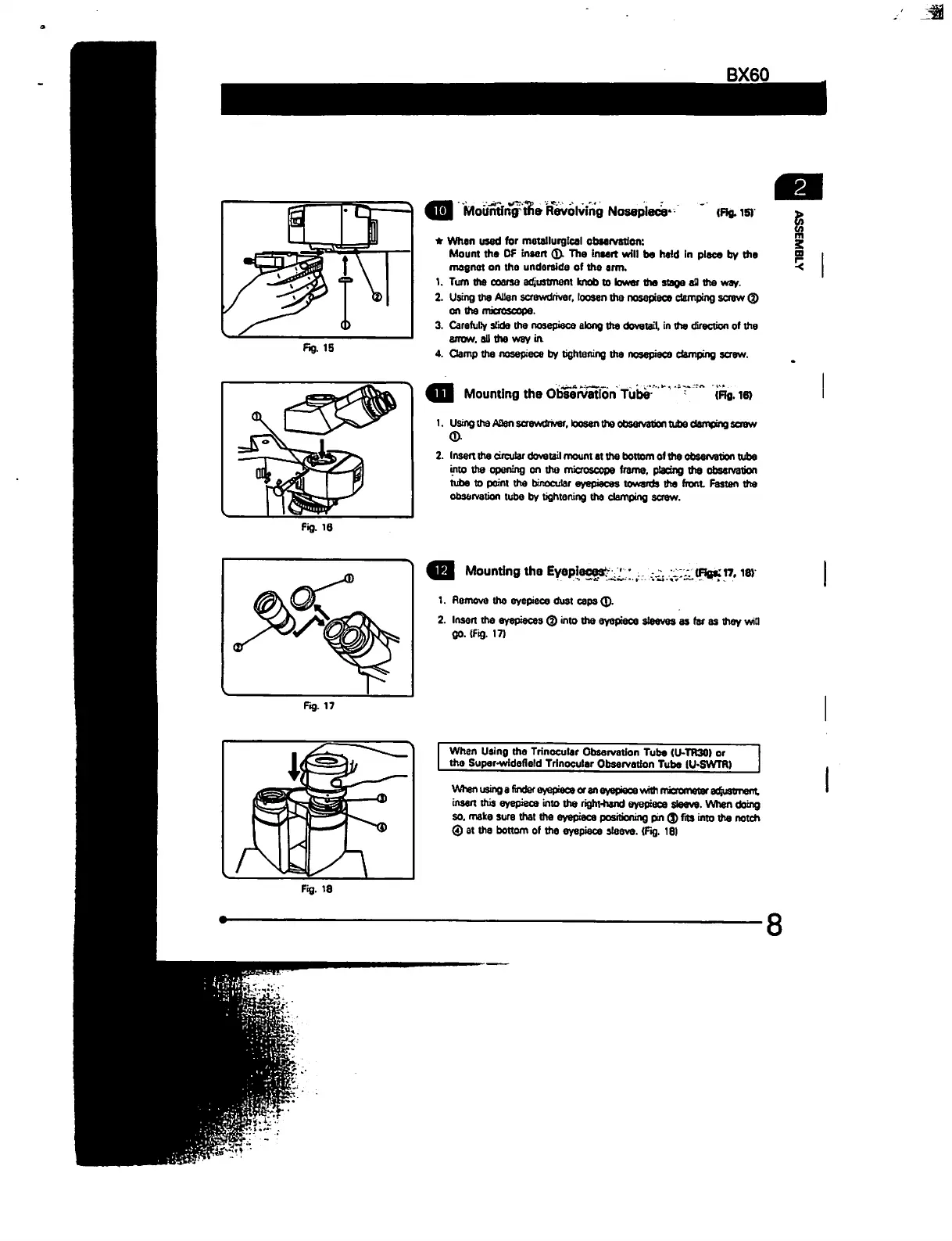

Mounting tfie Revolving Noseplece* * (Rg.15)
* Whan used for metallurgical obaarvatien:
Mount tha DF insert ©. The insert will be held in place by the
magnet on tha underside of the arm.
1. Turn tha coarse adjustment knob to lower the stage all the way.
2. Using the Allen screwdriver, loosen the nosaptece clamping screw @
on the microscope.
3. Carefully slide the nosepisce along the dovatail, in the direction of the
arrow, all the way in
4. Clamp the nosepiece by tightening the nosepiace clamping screw.
Mounting the Observation Tuber * r " {Rg. is>
1. Using ihe ASen screwdriver, loosen the observation tube damping screw
©■
2. Insert the circular dovetail mount at the bottom of the observation tube
into the opening on the microscope frame, placing the observation
tube to point the binocular eyepieces towards the front Fasten the
observation tube by tightening the clamping screw.
Mounting the Eyepieces;-/
(Fig* 17,18)
go. (Fig. 17)
Whan Using the Trinocular Observation Tube (U-TR30) or
the Supar-widaflold Trlnocular Observation Tuba IU-SWTR)
When using a finder eyepiece or an eyepiece with irtci
xijustn
insert this eyepiece into the right-hand eyepiece sleeve. When doing
so. make sure that the eyepiece positioning pin <j) fits into the notch
® at the bottom of tha eyepiece sleeve. (Fig. 18)
8
