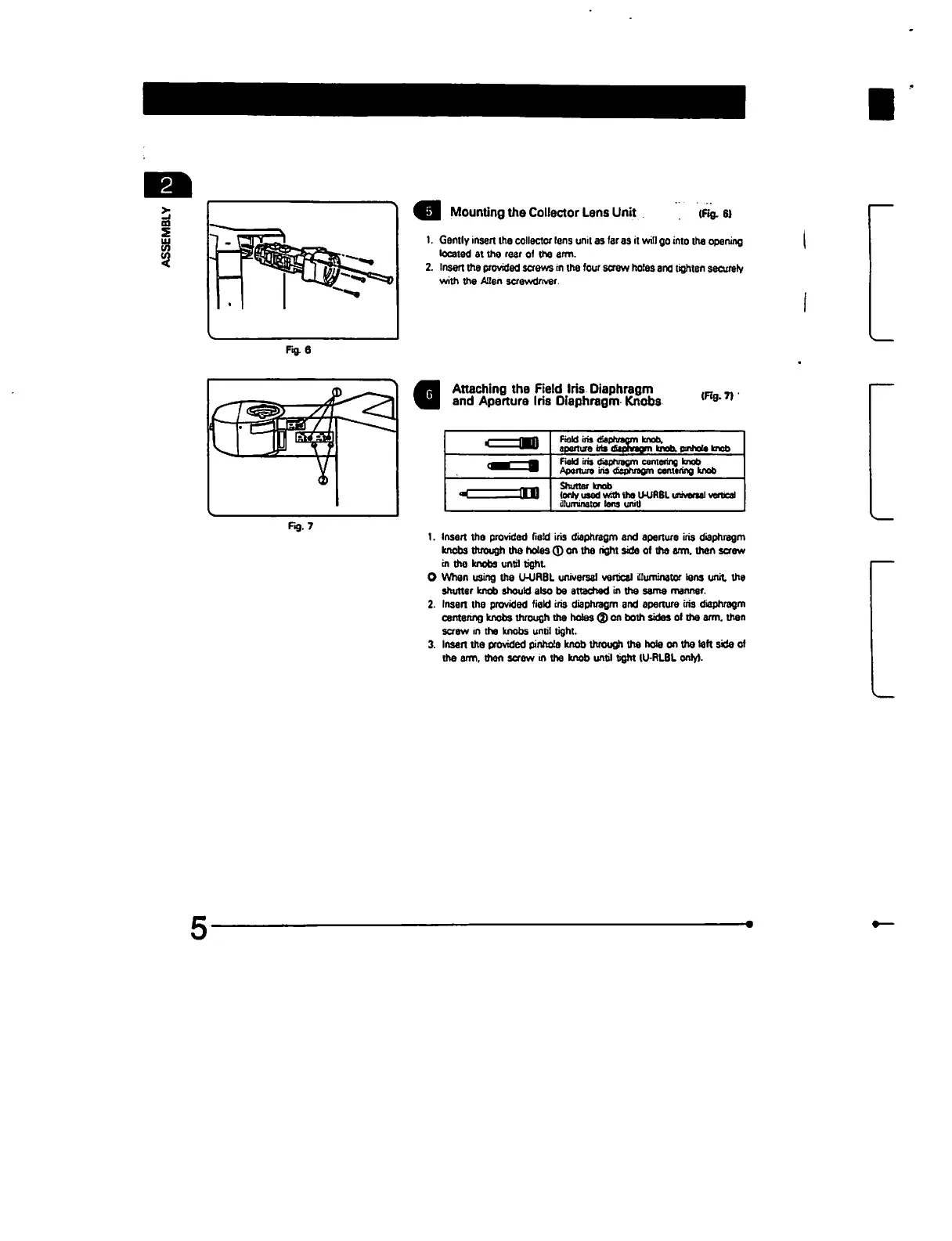

Mounting the Collector Lens Unit
(Fig. 6)
1. Gently insert the collector lens unit as far as it will go into the opening
located at the rear of the arm.
2. Insert the provided screws in the four screw holes ana tighten securery
with the Allen screwdriver
Fig. 6
Attaching the Field Iris Diaphragm
and Aperture Iris Diaphragm Knobs
(Rg.7»
Rg.7
1. Insert the provided field iris diaphragm and aperture iris diaphragm
knobs through (he holes 0 on the right side of the aim. then screw
in the knobs until tight
O When using the LMJflBL universal vertical illuminator lens unit the
shutter knob should also be attached in the same manner.
2. Insert the provided field iris diaphragm and aperture iris diaphragm
centering knobs through the holes (D on both sides of the arm. then
screw in the knobs until light.
3. Insert the provided pinhda knob through the hole on the left side of
the arm, then screw in the knob until tight (U-RLBL only).
