BX60
Fig. 3
fio-4

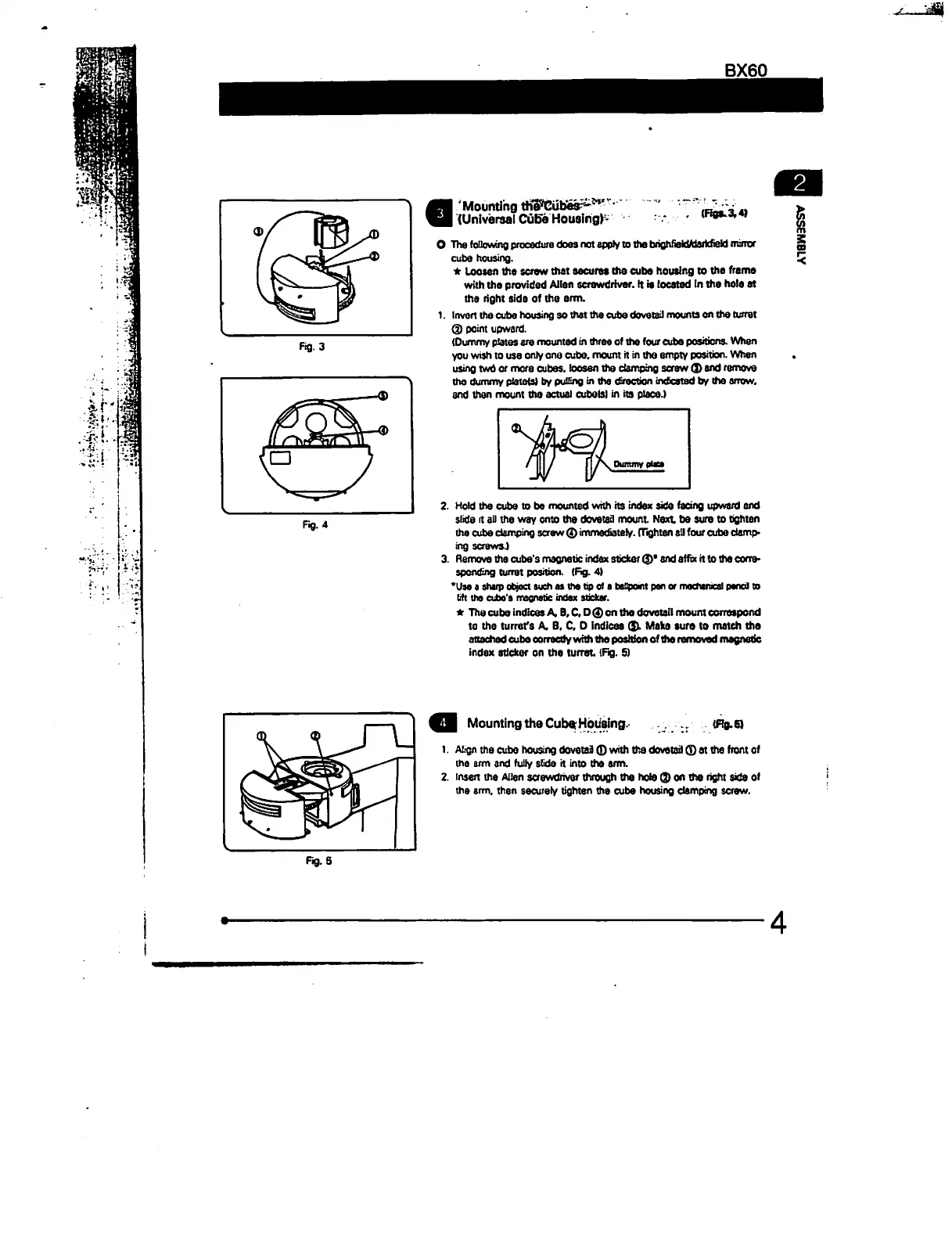

Mounting tKS
(Universal COBe Housing)-
. (Rg*. 3,*)
O The following procedure does not apply to the briflhfieMWartfield mirror
cube housing.
* Loosen the screw that secures tha cube housing to the frame
with tha provided Allan screwdriver. It is located In the hole at
the right side of the arm.
1. Invert the cube housing so that the cube dovetail mounts on the turret
@ point upward.
(Dummy plates are mounted in three of the four cube positions. When
you wish to use only one cube, mount it in tha empty position. When
using tw6 or more cubes, loosen the clamping screw <D and remove
the dummy ptatels) by puffing in the direction infested by the arrow,
and then mount tha actual eubslsl in its place.)
2. Hold tha cube to be mounted with its index side facing upward and
slide it all the way onto the dovetail mount Next be sure to tighten
the cube damping screw © immediately. (Tighten all (our cube damp
ing screws.)
3. Remove the cube's magnetic index sticker rj>* end affix it to the corre
sponding turret position. (Fig. 4)
*U» a sharp abject such as the tip of a ballpoint pan or macfiinical pared to
lift tha Cuba's mfignatic indax sockar.
* The cube indices A, B.C. D® on the dovetail mount correspond
to the turret's A, B, C, D Indices (JX Make sure to match tha
attached cube correctly with the position of the removed magnetic
index sticker on the turret (Fig. 5)
Mounting the Cub« Housing.
(Ro,«
1. Align the cube housing dovetail © with the dovetai)® at the front of
the arm and fully slide it into tha arm.
2. insert the Allen screwdriver through the hole ® on the right side of
the arm. then securely tighten the cube housing damping screw.
\
Fig. 8
