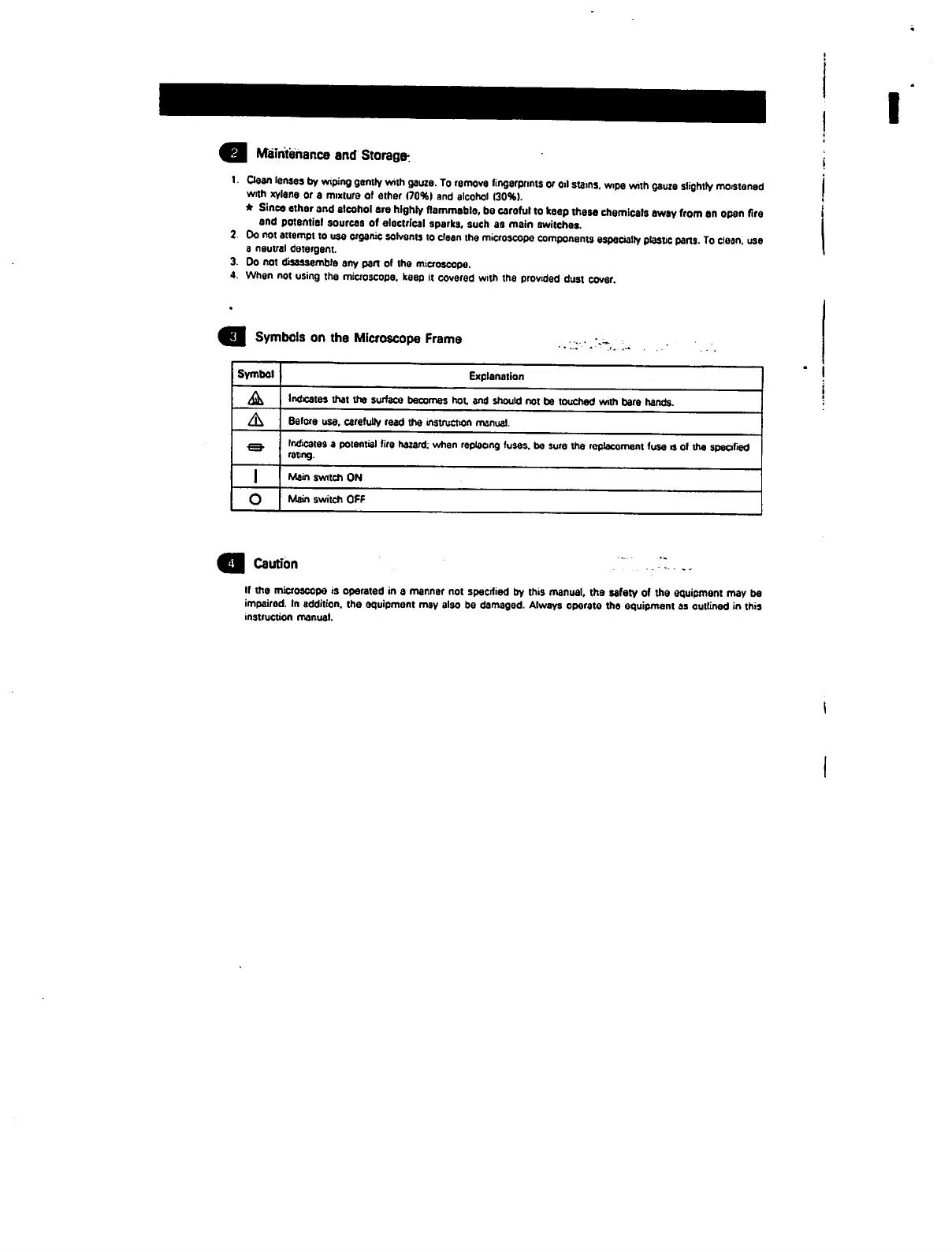

I
Maintenance
and
Storage;
1
Clean
lenses
by
wiping
gently
with
gauze.
To
remove
fingerprints
or
oil
stains,
wipe
with
gauze
slightty
moistened
with
xylene
or
a
mixture
of
ether
(70%)
and
alcohol
130%).
*
SIneo
ethar
and
alcohol
are
highly
flammable,
be
careful
to
keep
these
chemicals
away
from
an
open
fire
and
potential
sources
of
electrical
sparks,
such
as
main
switches.
2.
Do
not
attempt
to
use
organic
solvents
to
clean
the
microscope
components
especially
plastic
pans
To
dean
use
a
neutral
detergent
3.
Do
not
disassemble
any
pan
of
the
microscope.
4.
When
not
using
the
microscope,
keep
it
covered
with
the
provided
dust
cover.
Symbols
on
the
Microscope
Frame
Caution
"...
If
the
microscope
is
operated
in
a
manner
not
specified
by
this
manual,
the
safety
of
the
equipment
may
be
impaired.
In
addition,
the
equipment
may
also
be
damaged.
Always
operate
the
equipment
as
outlined
in
this
instruction
manual.
2
4
Table of Contents
Getting Ready
2
Maintenance and Storage
3
Symbols on the Microscope Frame
3
Contents
4
Nomenclature
5
Assembly
6
Attaching the Stage (U-SIC4, U-SV)
7
Mounting the Condenser
7
Mounting the Cubes
8
Mounting the Cube Housing
8
Mounting the Collector Lens Unit
9
Attaching the Field Iris Diaphragm and Aperture Iris Diaphragm Knobs
9
Installing the Halogen Bulb
10
Attaching the Lamp Housing to the Microscope
11
Mounting the Objectives
11
Transmitted Light Lamp Homing
11
Reflected Light Lamp Homing
11
Mounting the Revolving Noseplace
12
Mounting the Observation Tube
12
Controls
14
Biological Microscopy
17
Summary Observation Procedure
17
Metallurgical Microscopy
19
Using the Controls
21
Using the Light Preser Button
21
Using Built-In Filters
22
Loading Filters into the Filter Housing
22
Mounting the Filter Housing
22
Using the Filter Cassette
23
Using the Aperture Iris Diaphragm
25
Using the Pinhola Diaphragm
25
Specimen Placement
26
Biological Specimen
26
Using an Oil Immersion Objective
26
Metallurgical Specimen
26
Adjusting the Tension of the X-Axis and Y-Axis Knobs
27
Rotating the Stags
28
Stage Height Adjustment
28
Interpupllary Distance Adjustment
29
Diopter Adjustment
29
Using the Eye Shades
29
Using Eyepiece Micrometers
30
Light Path Selection (U-TR30, U-SWTR)
30
Condenser Centering
31
Field Iris Diaphragm
31
Aperture Iris Diaphragm
32
Compatibility of Objectives and Condensers
32
Adjusting the Coarse Adjustment
33
Using the Fine Adjustment Knob Rubber Cap
33
Pre-Focusing Lever
33
Use-Of Immersion Objectives
34
Attaching Straight/ Photo Tube (U-SPT)
34
Photo Eyepiece
35
Mounting the Camera Unit
35
Focus Adjustment
35
Observation Methods
36
Selecting the Light Path for Observation
36
Glare Shielding ND Filter
36
Selecting the Light Perth for Observation
37
Installing Analyzer and Polarizer
37
Installing the Nomarski Prism
37
Switching between Brightfield and Darkfield Observation
38
Specifications
40
