Olympus Microscope User Manual

BXFM frame
BXFM-F
Widely used system that allows use in combination with fiber illumination, motorized revolving nosepiece and telan lens unit.
Can easily be integrated into other equipment. Attach to the equipment by rear bolt mounting screw or pillar mounting hole.
19

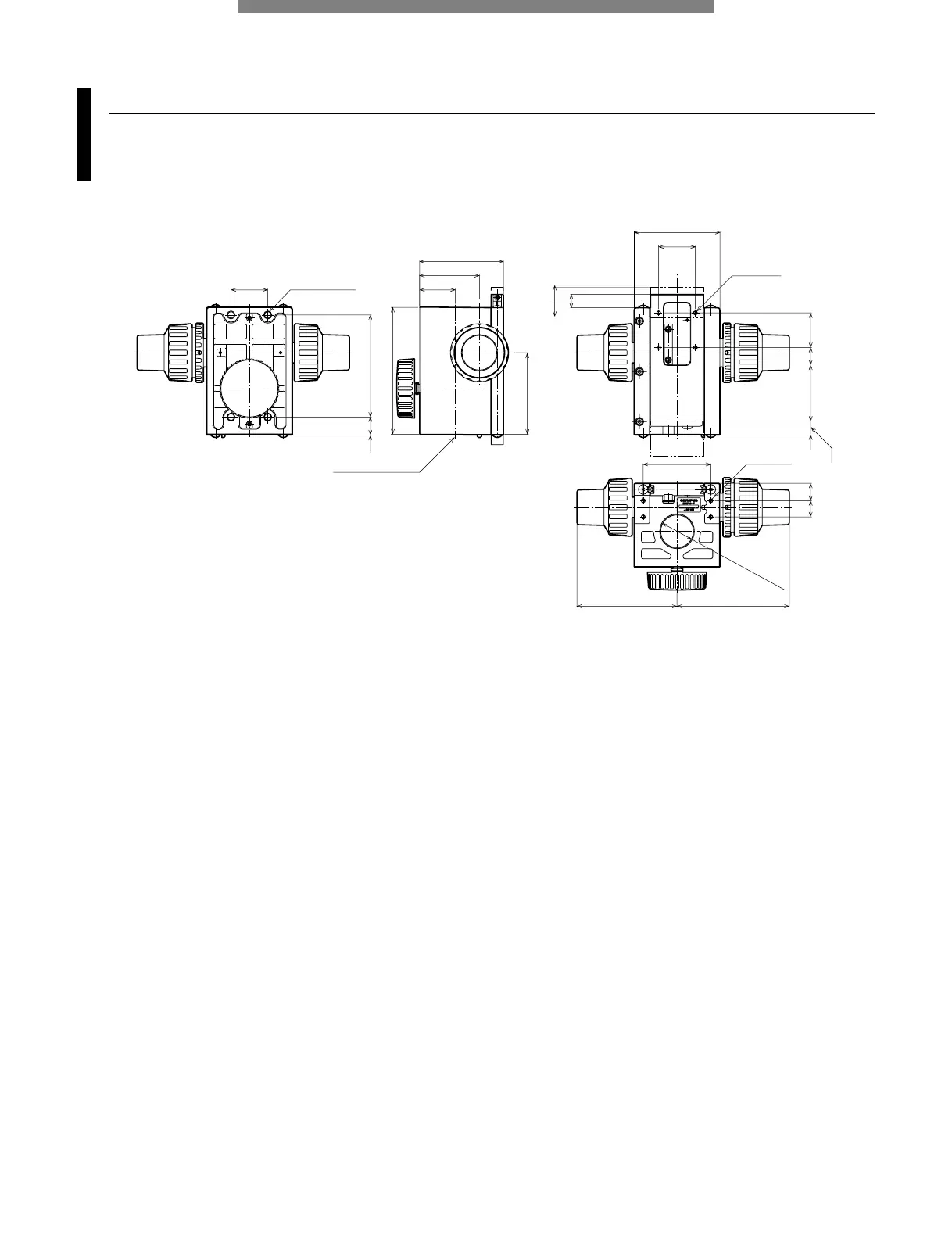

MICROSCOPE SYSTEM BXFM
Weight: 1.9kg Unit: mm
98 110
80
58.5
0.5
(13)
(13)
55
23 7
4–M4 depth9
4–M4 depth7
Pillar mount hole center
66.2
16 17 17 34
36
35
82
4-M8 depth8
(Bolt mount screw)
0.5 17 100
124
36
ø32H8
(Pillar mount hole)
84
Stroke
2A00002
