ASSEMBLY
8-1 Assembly Diagram

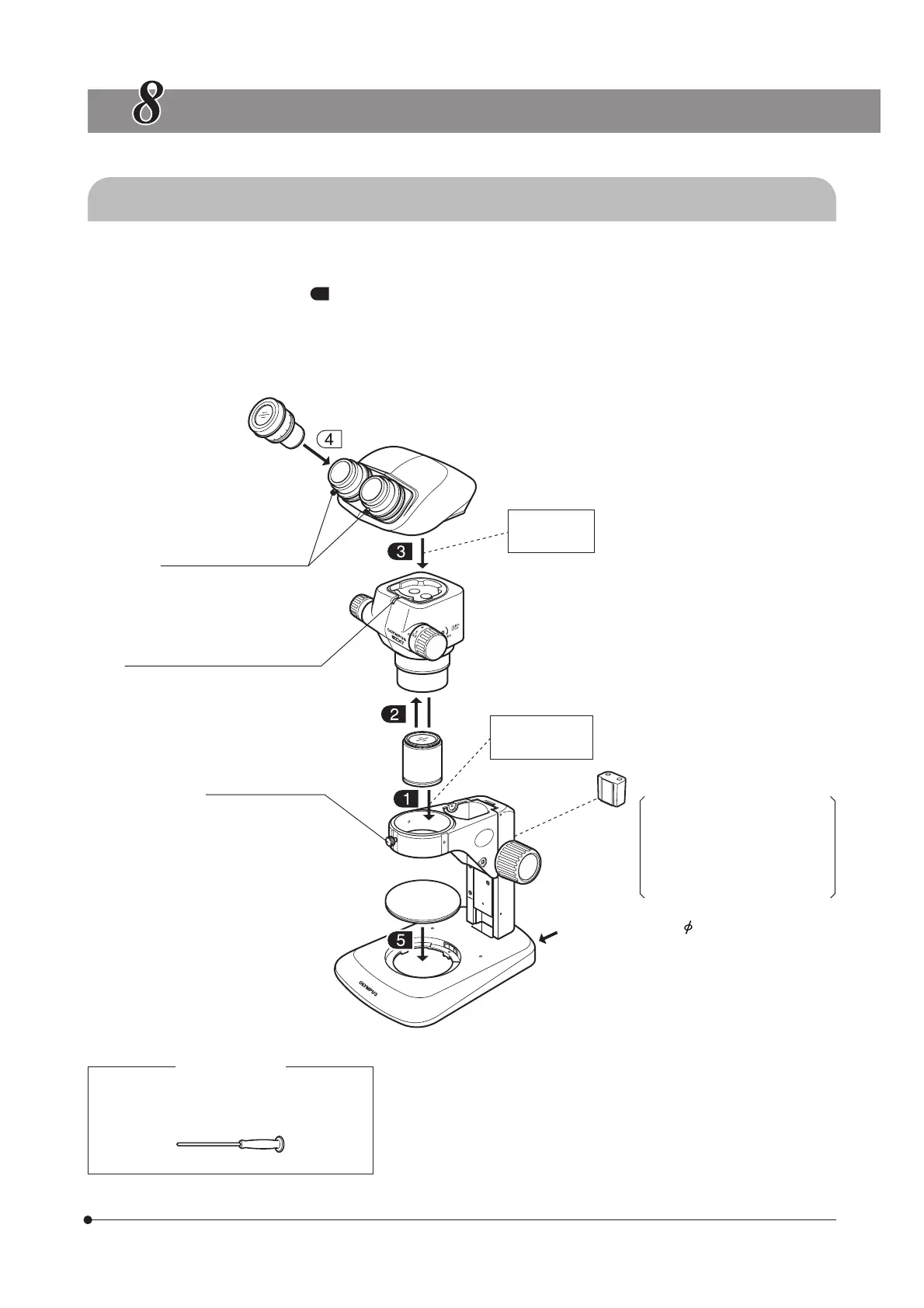

The diagram below shows the sequence of assembly of the various modules. The numbers indicate the order of
assembly.
Assembly steps enclosed in will be detailed on the subsequent pages.
#When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any
parts or touching glass surfaces.
Eyepieces
WHSZ series
Eyepiece clamping knobs
Observation tube clamping screw
Loosen using an Allen screwdriver.
Objective
Body clamping knob
Stage plate
SZ2-SPBW
Binocular tube
SZX-BI45
Zoom microscope body
SZX-ZB7
Standard stand
SZ2-ST
Ground lead wire (for 4 mm banana plug)
*
* To utilize the ESD protection performance, be sure to ground the equip-
ment using a grounding lead wire having a 4 mm banana plug.Allen screwdriver
(Provided with the zoom microscope body)
Allen screwdriver holder
Attach to a position that does
not hinder operation.
#The adhesive force weak-
ens when dust is attached
to the adhesive surface. Be
sure to remove dust before
attaching.
Intermediate
attachment
Auxiliary sleeve
SZ2-ET
To Next Page
