19
9
OPTIONAL MODULES

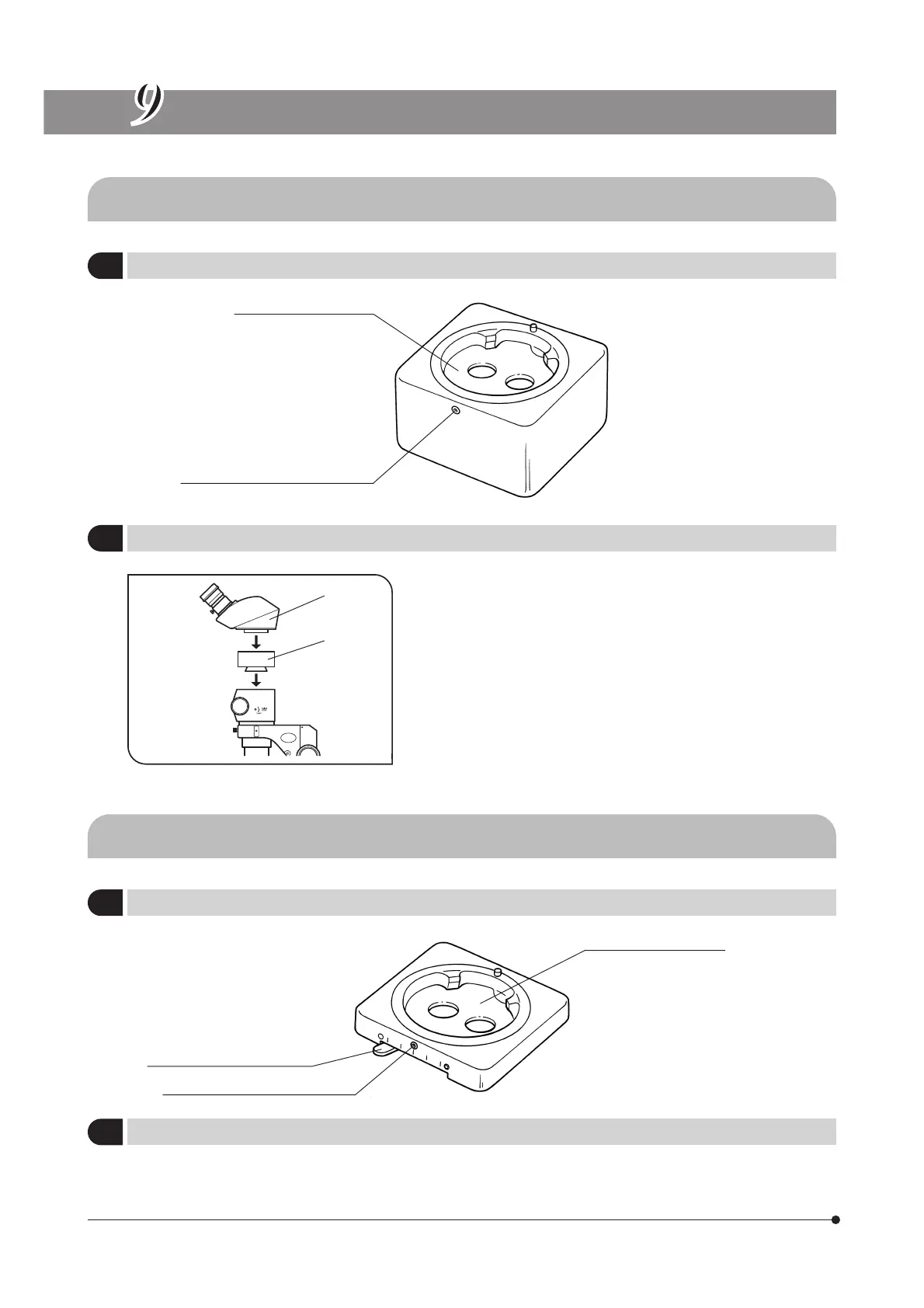

9-1 Eye Point Adjuster SZX-EPA
1
External View and Nomenclature
Observation tube mount
Observation tube clamping screw
2
Installation
(Fig. 18)
1. Remove the observation tube @ using the Allen screwdriver provided
with the SZX microscope body.
2. Attach the eye point adjuster ² to the position where the observation
tube has been attached.
3. Attach the observation tube above the eye point adjuster. This raises the
eye point by 40 mm.
Up to two eye point adjusters can be stacked provided that no other
intermediate attachment is used.
9-2 AS Unit SZX-AS (For the SZX-ZB7/ZB9)
1
External View and Nomenclature
Observation tube mount
Aperture iris diaphragm lever
Observation tube clamping screw
2
Installation
}The AS unit can be attached in the same way as the SZX-EPA eye point adjuster.
Fig. 18
²
1
