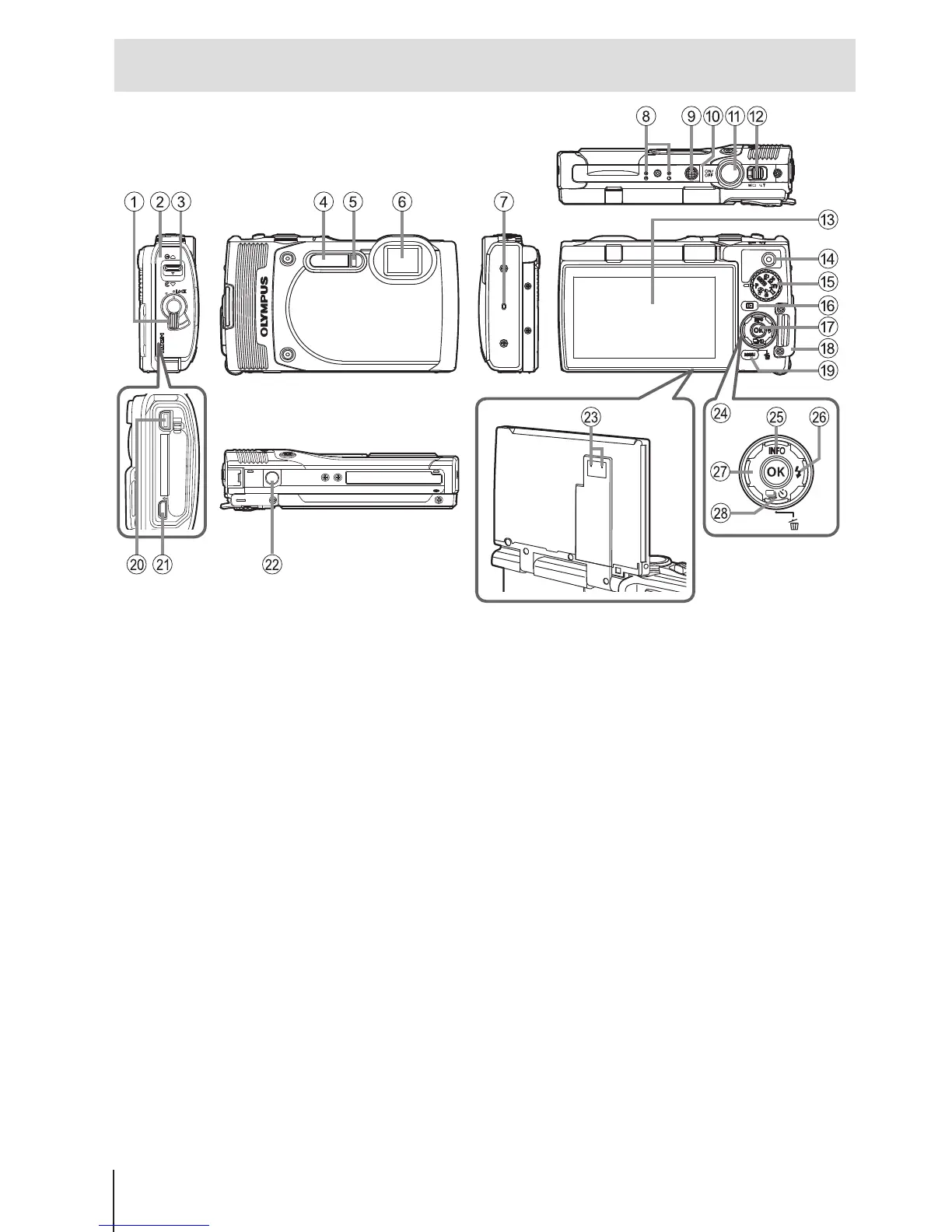

Names of parts
1 Battery/card compartment/
connector cover lock
2 Battery/card compartment/
connector cover
3 Battery/card compartment/
connector cover latch
4 Flash
5 Self-timer lamp/LED Illuminator/
AF illuminator
6 Lens
7 Speaker
8 Stereo microphone
9 n button
0 Indicator lamp
a Shutter button
b Zoom lever
c Monitor
d R (Movie) button
e Mode dial
f q (Playback) button
g Q button
h Strap eyelet
i button
j Multi-connector
k HDMI micro connector
l Tripod socket
m Pressure adjustment hole*
n Arrow pad
o F (Up) / INFO (Information
display) button
p I (Right) /# (Flash) button
q H (Left) button
r
G (Down) / jY (Sequential
shooting/Self-timer) /
(Erase)
button
* Do not stick pointed objects like a pin into the hole.
