Olympus UES-40 Service Manual

UES-40
Product Specification 1-10 ISSUE4
4. Name and Function of Each Part

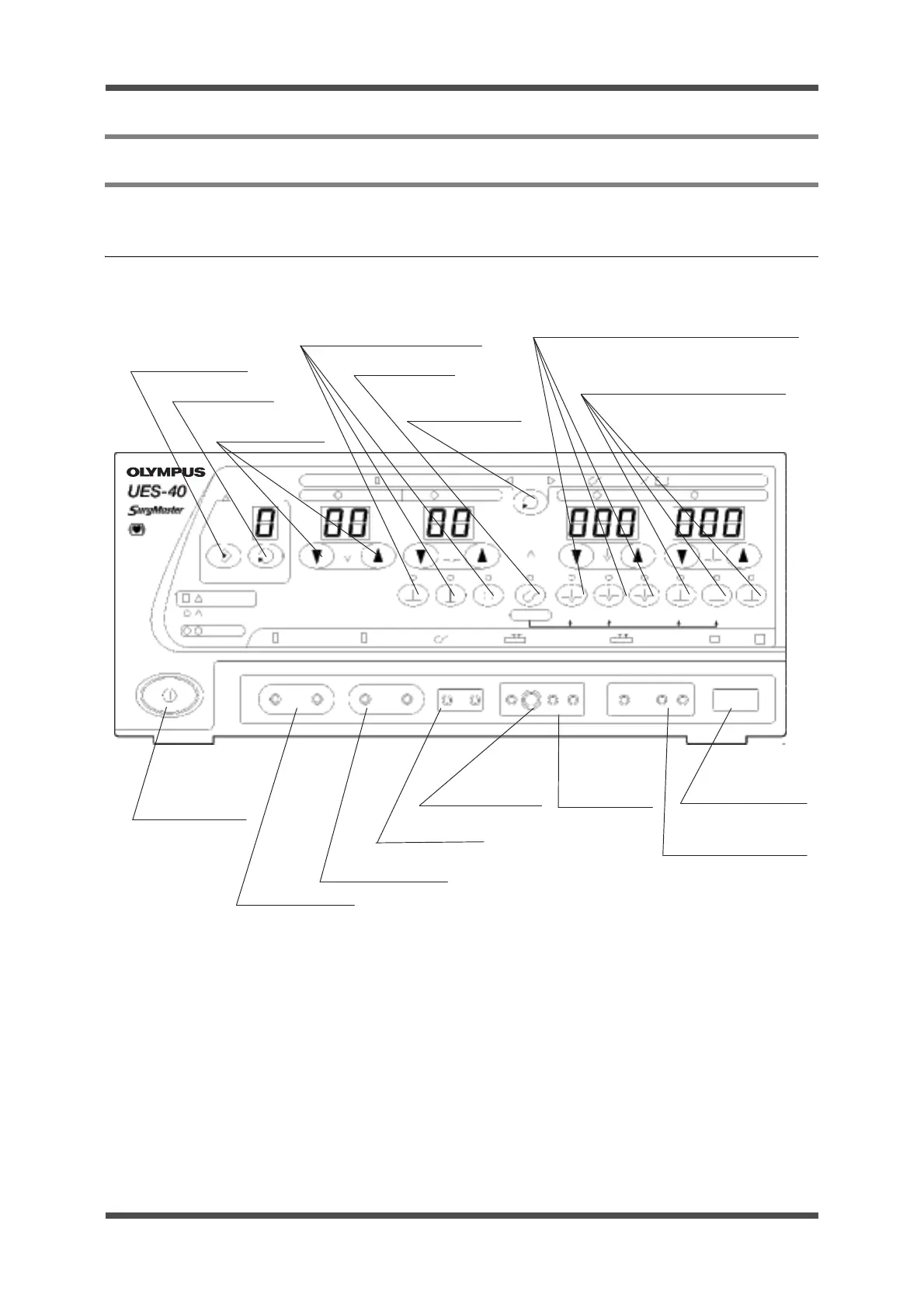

4-1 Front panel (for 120 V and 220 V)
4-1-1 Switches and ports
(1) Memory switch
This switch is used to store output settings and modes that have been previously set.
(2) Select switch
This switch is used to recall stored output settings and modes.
(3) Output control switches
To increase the displayed setting value, press s. To decrease it, press t.
(4) Bipolar coagulation mode select switches
These switches are used to select bipolar coagulation modes.
(5) Saline switch
This switch is used to select the saline mode.
WW W W
BIPOLAR
CUT
PRESET
MEMORY
WARNING
COM
POWER
BIPOLAR1 HAND PIECE1 HAND PIECE2
PATIENT
F
BIPOLAR2
SOFT1 SOFT2 HARD
SALINE
SALINE PURE COAG.1 COAG.2 BLEND URO SPRAY
SELECT
COAG
FOOT
SWITCH
SELECT
CUT COAG
SALINE MONOPOLAR
(1) Memory switch
(16) Power switch
(15) Bipolar port 1
(14) Bipolar port 2
(12) Active port
(11) Hand piece
port 1
(9) Patient plate port
(10) Hand piece port 2
(13) Saline port
(2) Select switch
(3) Output control
switch
(4) Bipolar coagulation mode
select switch
(7) Monopolar/saline cut mode select switch
(8) Monopolar/saline coagulation
mode select switch
(5) Saline switch
(6) Foot switch
select switch
