Ethernet / Livewire Connection

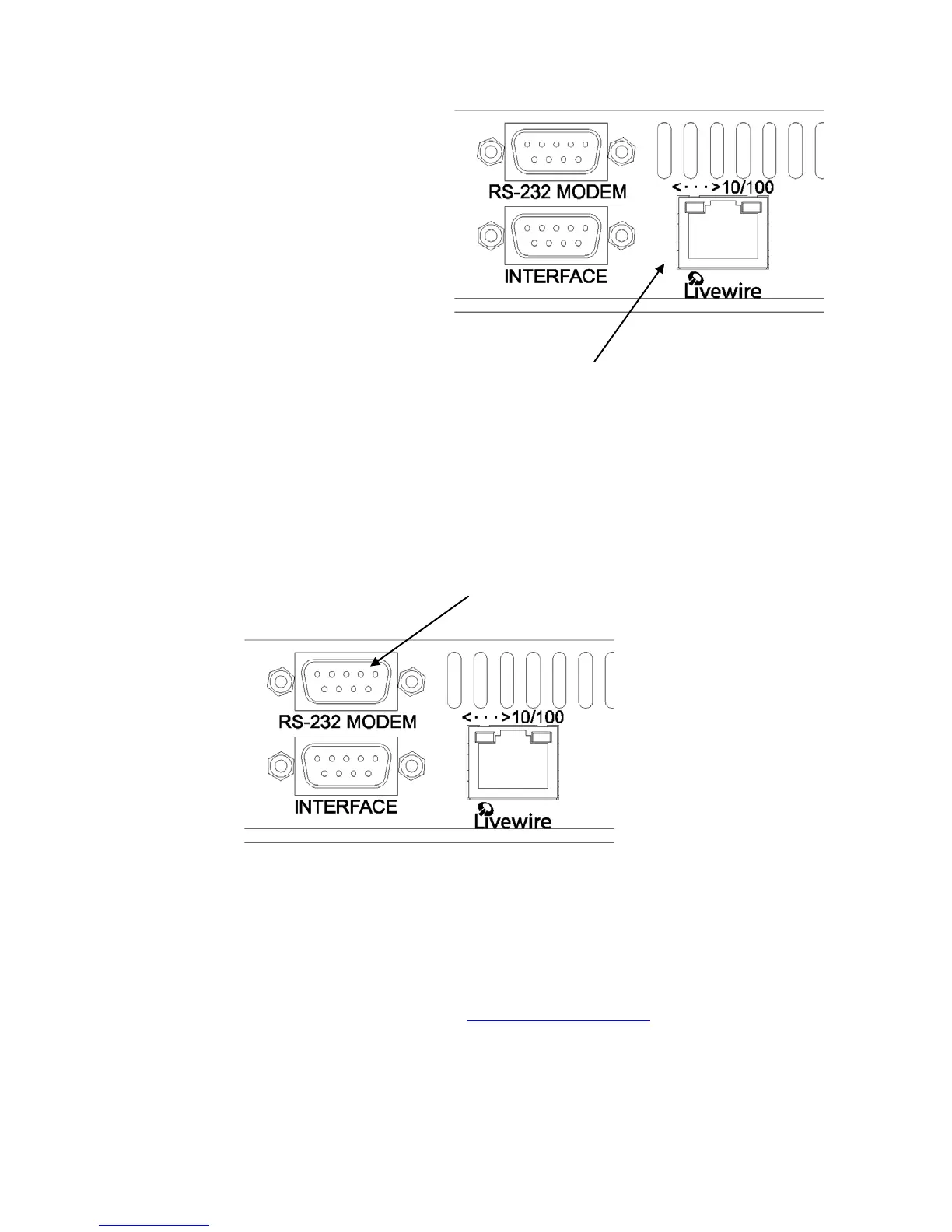

The RJ-45 10BaseT / 100BaseT Ethernet / Livewire
I/O jack can be used simultaneously for both
TCP/IP based remote control of your Omnia.ONE
and audio input/output to your existing Livewire
network.
Ethernet 10BaseT/100BaseT Remote and Livewire I/O
RS-232 Modem Connection (DB-9M)*
This DB9-male connector can be used to connect an external dialup modem for a bi-directional computer remote
control connection.
1
NOTE: This connector is for a remote control external modem connection only. Please see Appendix B for
information on how to use a terminal program along with an internal RS-232 connector for troubleshooting
purposes.
RS-232 Modem Port
NOTE: You must use a standard straight-through serial cable and not a null modem cable when connecting the RS-
232 connector of the Omnia and the external modem. Typically this would be 9-pin to 25-pin cable. (External
modems traditionally have 25 pin connectors in "DCE" configuration. The Omnia.ONE has a 9 pin in "DTE"
configuration, so the standard 9-pin to 25-pin cable will work).
1
The setup and operation of the Omnia Remote Control application is covered in detail in Appendix C.
*Please note that the RS-232 Modem functionality is not yet implemented in the current software but will be
available with a free downloadable software update. Please check the Omnia website for new software
announcements, download links and manual updates at: http://www.omniaaudio.com/
