Omron E4C-UDA User Manual

- 17 -
* Value one hour after the product is turned on. Note, however, that external disturbance sometimes causes minute output.

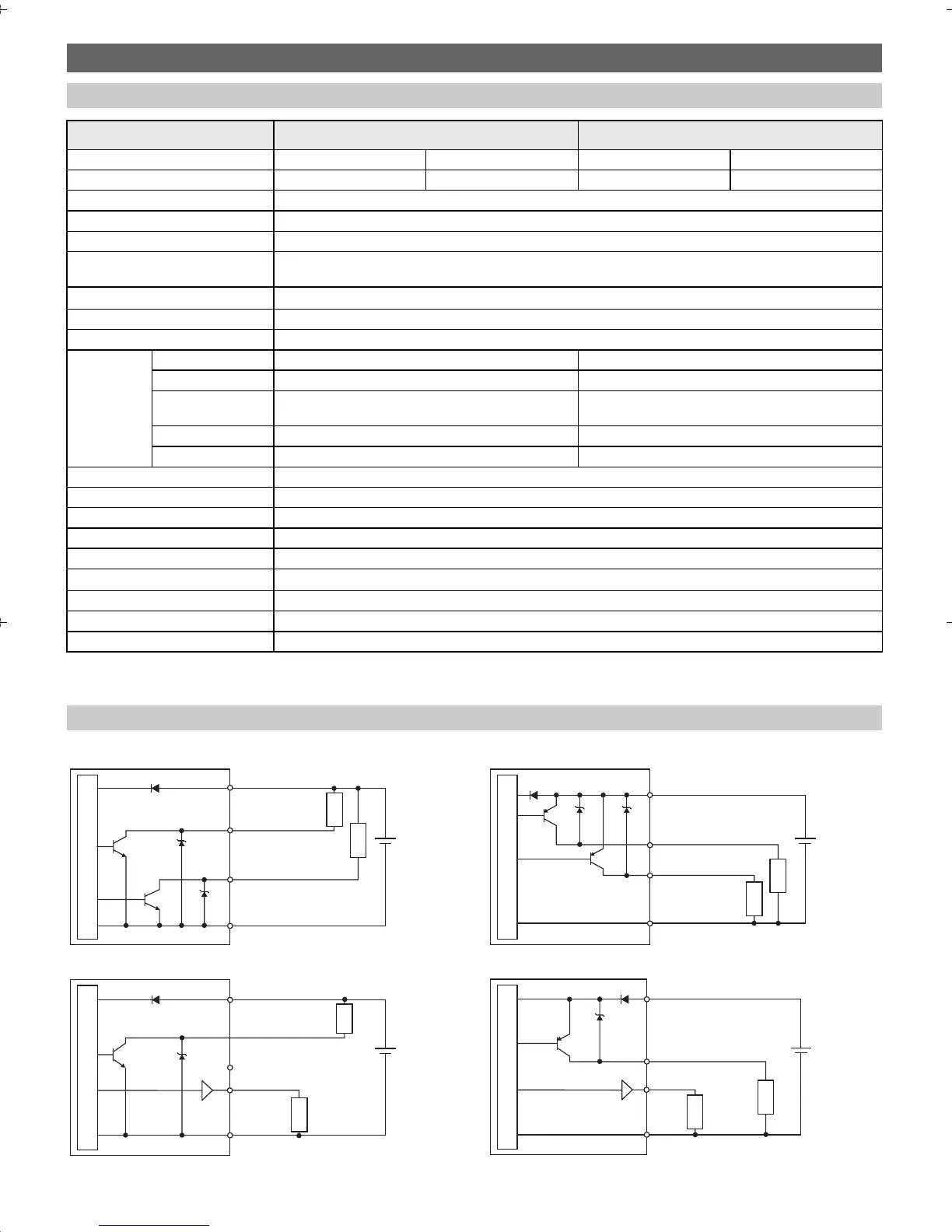

8. Ratings
Ratings and Specifications
Type Twin output model Analog output model
Model E4C-UDA11 E4C-UDA41 E4C-UDA11AN E4C-UDA41AN
NPNoutput PNPoutput NPNoutput PNPoutput
Connection method Prewired
Supply voltage 12 to 24 VDC ± 10%, ripple 10% max.
Current consumption 80 mA max.
Control output NPN open collector (26.4 VDC max.)
Load current: 50 mA max., Residual voltage: 1 V max.
Hysteresis
2.0% F.S.max.
Timer OFF/OFF-delay/ON-delay/one-shot
Timer time 1 ms to 5 s
Analog
output
Output form - Voltage output (DC 1 to 5 V)
Connected load - 10 kΩ min.
Temperature
characteristics
- 0.3% F.S./°C
Resolution - 2.0% F.S.max. *
Linearity - 2.0% F.S.max.
Operating temperature Operating: -25 to +55°C Storage: -30 to +70°C (with no icing)
Operating humidity Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 50 MΩ min. (by 500 VDC)
Dialectic strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance 10 to 150 Hz, 0.75 mm double amplitude, 80 min each in X, Y, and Z directions
Shock resistance
500 mm/s
2
, 3 times each in X, Y and Z directions
Materials Case: PBT (polybutylene terephthalate), Cover: Polycarbonate
Weight Approx. 150 g
Accessories Instruction Manual
I/O Circuit Diagrams
JE4C-UDA11 (NPN type) JE4C-UDA41 (PNP type)
JE4C-UDA11AN (NPN type) JE4C-UDA41AN (PNP type)
DC
12 to 24 V
Brown
Black 1CH output
Orange 2CH output
Blue
Internal circuit
Load
Load
DC
12 to 24 V
Brown
Black
1CH output
Orange
2CH output
Blue
Internal circuit
Load
Load
Brown
Blue
10 KW min.
DC
12 to 24 V
Black Control output
Orange Analog output
Internal circuit
Load
Load
Brown
Blue
10kǡ
MIN
DC
12 to 24 V
Black control output
Orange
Analog
output
Internal circuit
Load
Load
