H5F
H5F
233

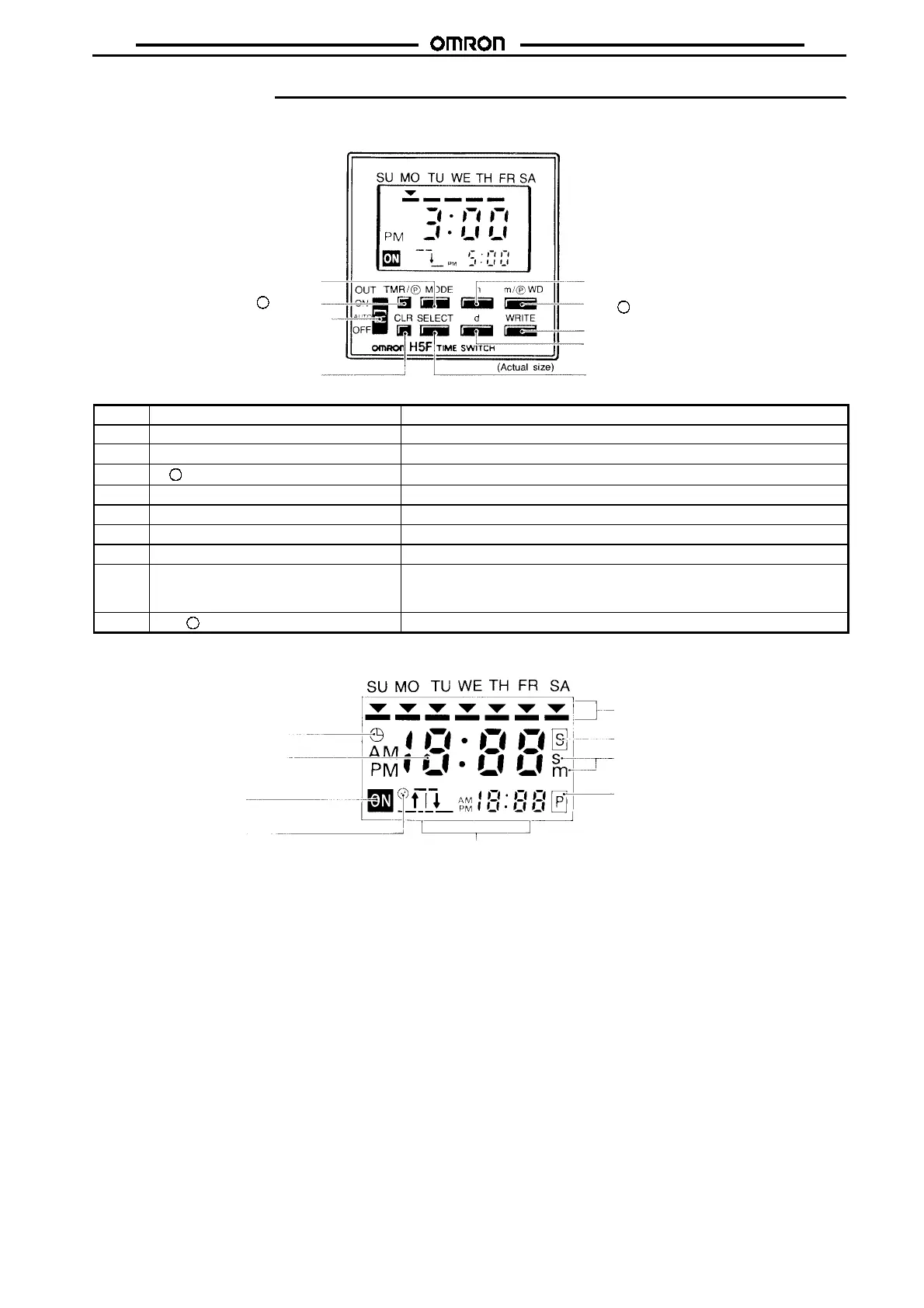

Nomenclature
Front Panel
A
Mode Key
I
TMR/ Key
H
OUT ON/OFF Key
G
CLR Key
B
hKey
C
m/ WD Key
D
Write Key
E
dKey
F
Select Key
P
P
No. Name Function
A
Mode Key Selects an operation mode.
B
h (Hour) Key Sets hours.
C
m/ WD (Minute/Pulsetime width) Key
P
Sets minutes or a pulse time width.
D
Write Key Writes the set data to memory.
E
d (Day shift) Key Moves the cursor to specify a date.
F
Select Key Specifies or cancels a specified day.
G
CLR (Clear) Key Erases the set data and initializes the date of operation.
H
OUT ON/OFF Key ON: Turns on the output regardless of the setting.
OUT: Turns on the output according to the setting.
OFF: Turns off the output regardless of the setting.
I
TMR/ (Timer/pulse output) Key
P
Selects timer operation or pulse operation.
Display
Time Adjustment Mode Indicator
Displays the Present Time,
Operation Time, and Time
Width
Output Circuit Indicator
Pulse Operation Indicator
Present Date/Date of Operation Indicator
Partial Operation on Special Day Indicator
Pulse Width Unit Indicator
Operation Setting Mode Indicator
Lights while the time and day of op-
eration are being set.
Next operation Indicators
Indicate the time scheduled for the next operation while the time
switch is in operation; indicate the set operation number while data
is being set in the time switch.
