Omron H5CR series User Manual

H5CR H5CR
10
Key name Operation
Increment keys (1-4) Used to change the corresponding digit of the set value. Used to change data in the set mode.
Display key Switches to the present value display.
Mode key Switches from run mode to set mode. Changes items in the set mode.
Reset key Resets timing and outputs.
■ KEY OPERATIONS
The following table shows the timer settings when it is shipped. Change the settings as necessary to suit the system before
operation. Settings and the display receive power from the internal battery and are, therefore, unaffected by external power
interruptions. With the initial settings, there will be no output even if the power supply is connected. External inputs and outputs
cannot be used without a power supply.
Model H5CR-B (Standard)/H5CR-S (Short body) H5CR-L (Economy)
Time range - -.- -s
Present value 0.00 s
Presets 0.00 s
UP/DOWN mode UP
Output mode A: Signal ON-delay (1)
Output time Hold
Input signal time 20 ms
Key protect level KP-1 —
■ FACTORY SETTINGS
Inputs Start signal Stops timing in A-2 and A-3 (power ON-delay) modes. Starts timing in other modes.
Reset Resets present value (to zero in UP mode, to preset in DOWN mode).
Control inputs are not accepted while reset input is ON.
Reset indicator lit while reset input is ON.
Gate Inhibits timer operation.
Key protect Makes keys inoperative according to key protect level.
Key protected indicator lit while key protect input is ON.
Effective when protect terminals are shorted.
Effective if power supply is turned off.
Outputs Control output (OUT) Outputs made according to designated output mode when corresponding preset is reached.
■ OPERATIONAL OVERVIEW

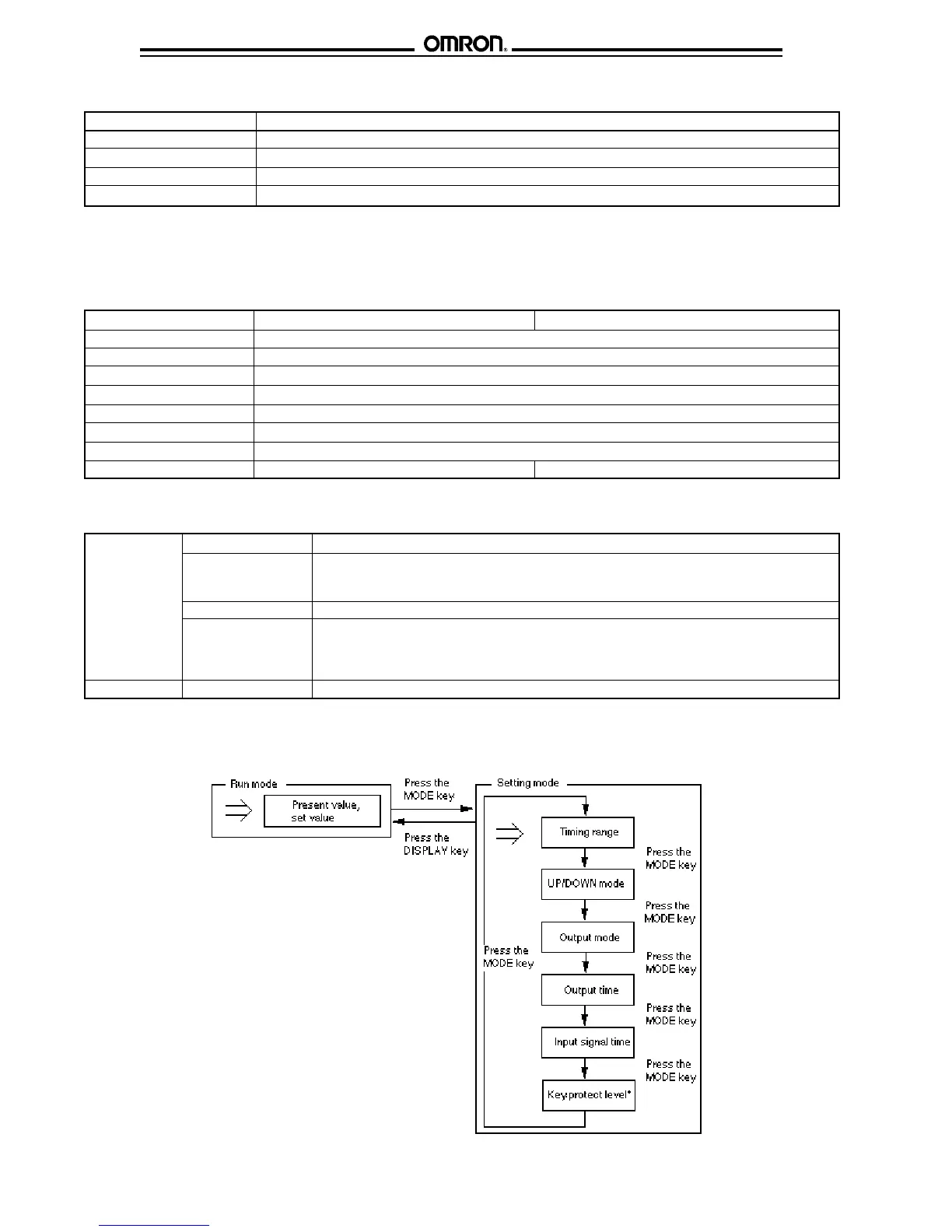

The flowchart below shows operation common to all H5CR models. Refer to the Setting Item Table for details on the operation of specific
modes.
Note: 1. Set values are changed using
the increment keys (1 to 4).
2. The large arrows indicate the
parameter displayed first when the mode
is changed with the MODE or DISPLAY key.
* Key protection is not included in the H5CR-L.
■ INPUT/OUTPUT FUNCTIONS
