Digital Time Switch H5S 19

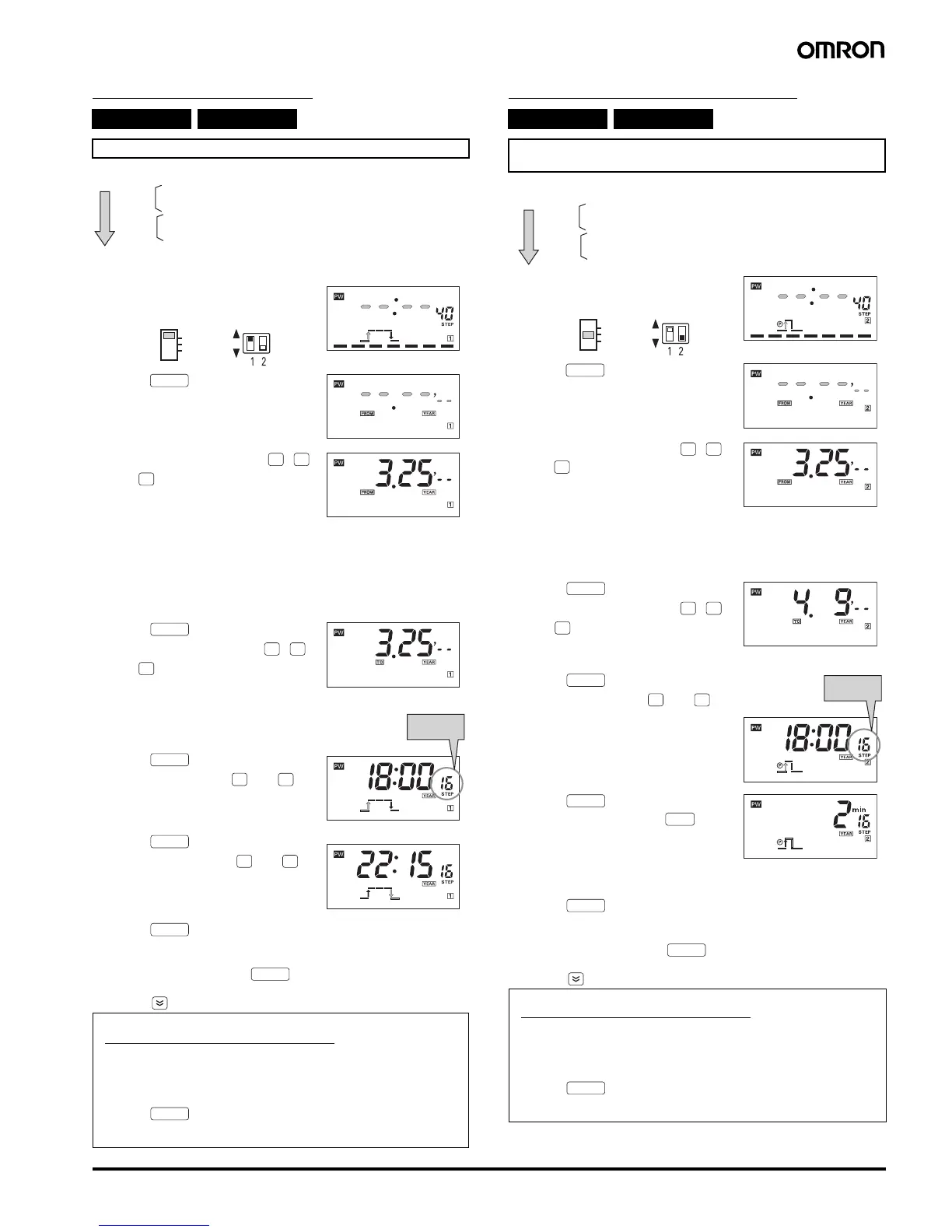

Yearly Timer Operation Yearly Pulse-output Operation
Yearly, 2 Circuits Yearly, 4 Circuits
Example: ON at 18:00 and OFF at 22:15 on March 25 every year.
Shaded portion indicates
blinking of the indicator.
1. Set the Mode Switch to P1 or P2.
→For 4-circuit models, refer to
page 18.
2. Press for 1 s or more. (The
Time Switch enters yearly program
setting mode. *1)
3. Specify the start date using ,
and . *2
The year can be set from the current
year to the next two years as shown
in the example. If the year is set to
“--”, the operation performs every
year.
<Example>
If the current year is 2006, the
displayed year changes as follows.
--
→ 06 → 07 → 08 → -- → 06 →
4. Press .
Specify the end date using ,
and . *2
If the starting year has been set to
“--”, the ending year cannot be set.
5. Press .
Set the ON time with and . *2
6. Press .
Set the OFF time with and . *2
7. Press to enter the settings.
*1 If one or more programs have already been set, the display starts showing the
set programs.
To add another program, press repeatedly until “--:--“ is displayed.
*2 Holding down the date- or time-setting keys rapidly advances the value.
Pressing decrements the value of the key that was last pressed.
Note:
• Yearly programs are added to weekly programs.
• All the start/end dates and ON/OFF times must be set. the maximum
number of yearly timer operations that can be set is four for each output
circuit.
• If multiple settings are required, repeat steps 3 through 7.
• All of the yearly programs for the selected circuit (output) can be checked by
pressing in yearly program setting mode.
• The set data will be cleared if the Output Setting Switch is moved between
the TIMER and PULSE positions after the data has been set.
Set the program in the following order.
March 25, 2006 (Start date)
March 25, 2006 (End date)
18:00 (ON time)
22:15 (OFF time)
Day
period
Time
period
SUN MON TUE WED THU FRI SAT
P1
P2
RUN
PULSE
TIMER
YEAR
Y
m
D
WRITE
Y
m
D
Number of
remaining steps
WRITE
h
m
WRITE
h
m
WRITE
WRITE
WRITE
Yearly, 2 Circuits Yearly, 4 Circuits
Example: To produce output for 2 minutes at 18:00 from March 25 to
April 9.
Shaded portion indicates
blinking of the indicator.
1. Set the Mode Switch to P1 or P2.
→For 4-circuit models, refer to
page 18.
2. Press for 1 s or more. (The
Time Switch enters yearly program
setting mode. *1)
3. Specify the start date using ,
and . *2
The year can be set from the current
year to the next two years as shown in
the example. If the year is set to
“--”,
the operation performs every year.
<Example>
If the current year is 2006, the
displayed year changes as follows.
--
→ 06 → 07 → 08 → -- → 06 →
4. Press .
Specify the end date using ,
and . *2
If the starting year has been set to
“--”, the ending year cannot be set.
5. Press .
Set the ON time with and . *2
6. Press .
Set the pulse width with .
The displayed pulse width changes
by pressing this key in the following
order.
1 s
→ 2 s → ··· 59 s → 1 m → ···
59 m → 60 m → 1 s
7. Press to enter the settings.
*1 If one or more programs have already been set, the display starts showing the
set programs.
To add another program, press repeatedly until “--:--“ is displayed.
*2 Holding down the date- or time-setting keys rapidly advances the value.
Pressing decrements the value of the key that was last pressed.
Note:
• Yearly programs are added to weekly programs.
• All the start/end dates, ON time, and pulse width must be set. The maximum
number of yearly pulse output operations that can be set is four for each
output circuit.
• If multiple settings are required, repeat steps 3 through 7.
• All of the yearly programs for the selected circuit (output) can be checked by
pressing in yearly program setting mode.
• The set data will be cleared if the Output Setting Switch is moved between
the TIMER and PULSE positions after the data has been set.
Set the program in the following order.
March 25, 2006 (Start date)
April 9, 2006 (End date)
18:00 (ON time)
2 minutes (Pulse width)
Day
period
Time
period
SUN MON TUE WED THU FRI SAT
P1
P2
RUN
PULSE
TIMER
YEAR
Y
m
D
WRITE
Y
m
D
WRITE
h
m
Number of
remaining steps
WRITE
PLS
WRITE
WRITE
WRITE

Omron H5S Specifications

General

Output	Relay
Contact Configuration	SPDT
Contact Rating	5 A at 250 VAC
Number of Digits	4
Control Output	Relay
Type	Digital Timer
Operating Temperature	-10°C to 55°C
Supply Voltage	100 to 240 VAC
Operating Modes	Flicker, Interval
Time Range	0.1 s to 9999 h
Power Supply Voltage	100 to 240 VAC, 12 to 24 VDC
Time Setting Range	0.1 s to 9999 h
Power Supply	100 to 240 VAC, 12 to 24 VDC
