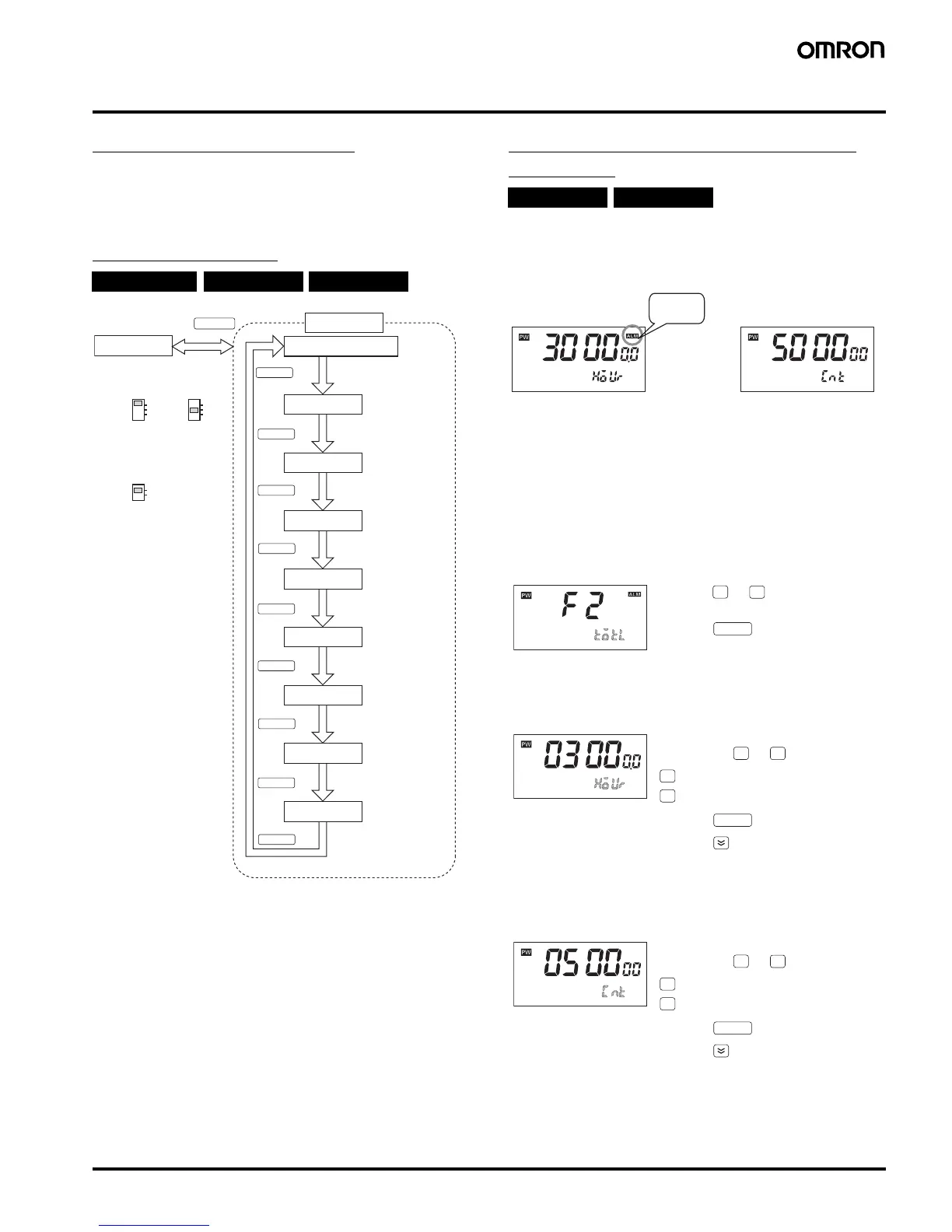

Digital Time Switch H5S 23
Using Advanced Functions
About Advanced Functions
Set the advanced functions as required to perform more advanced
operation. Outlines of the advanced functions are provided on the
following pages.
Refer to the Instruction Manual enclosed with the H5S for details.
Initial Setting Mode
Time Counter/Total Counter Display
(F2, F3, F4)
This function displays the total elapsed time and total input count for
an external input.
The alarm indicator can also be displayed if an alarm value has been
set.
Note: For display details, refer to Display Switching on page 22.
Input selection (F2)
• Set Input selection (F2) in initial setting mode to Time Counter/Total
Counter.
Alarm for time counter (F3)
Alarm for total counter (F4)
Weekly, 2 Circuits Yearly, 2 Circuits Yearly, 4 Circuits
<2-circuit models >
P1
P2
RUN
P1
P2
RUN
<4-circuit models >
PRGM
RUN
Program setting mode
Initial setting mode
F1:Next operation display
F2:Input selection
*2-circuit models only
F3:Total time alarm
*Only when "totl"
is selected in F2.
F4:Total count alarm
F5:Date format
selection
*Yearly models only
F6:Summer time
(DST) adjustment
*Yearly models only
F7:Summer time
schedule selection
*Yearly models only
Only when "auto"
is selected in F6.
F8:Season switching *Yearly models only
F9:Period of season *Yearly models only
Only when "on"
is selected in F8.
TIME ADJ
Press briefly
.
TIME ADJ
or
Press
for 3 s or more.
*Only when "totl"
is selected in F2.
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Press briefly
.
TIME ADJ
Yearly, 2 Circuits Yearly, 2 Circuits
Shaded portion indicates
blinking of the indicator.
1. Press or to change the
display to totl.
2. Press to enter the setting.
Shaded portion indicates
blinking of the indicator.
1. The display will automatically change
to the alarm setting screen 2 s after
switching to F3.
Press the or .
Key: Increments in units of 1,000 h*
Key: Increments in units of 10 h*
Note: The default setting
is 0.0 h (no alarm
display).
2. Press to enter the setting.
*
Pressing decrements the value of the
key that was last pressed.
Shaded portion indicates
blinking of the indicator.
1. The display will automatically change
to the alarm setting screen 2 s after
switching to F4.
Press the or .
Key: Increments in units of 10,000*
Key: Increments in units of 100*
Note: The default setting
is 0 (no alarm
display).
2. Press to enter the setting.
*
Pressing decrements the value of the
key that was last pressed.
Alarm
indicator
Time counter display
(Example shows display
when the total elapsed time
is 30,000 hours.)
Total counter display
(Example shows display
when the total input
count is 500,000.)
h
m
WRITE
h
m
h
m
WRITE
h
m
h
m
WRITE

Omron H5S Specifications

General

Output	Relay
Contact Configuration	SPDT
Contact Rating	5 A at 250 VAC
Number of Digits	4
Control Output	Relay
Type	Digital Timer
Operating Temperature	-10°C to 55°C
Supply Voltage	100 to 240 VAC
Operating Modes	Flicker, Interval
Time Range	0.1 s to 9999 h
Power Supply Voltage	100 to 240 VAC, 12 to 24 VDC
Time Setting Range	0.1 s to 9999 h
Power Supply	100 to 240 VAC, 12 to 24 VDC
