Cam Positioner H8PS 11

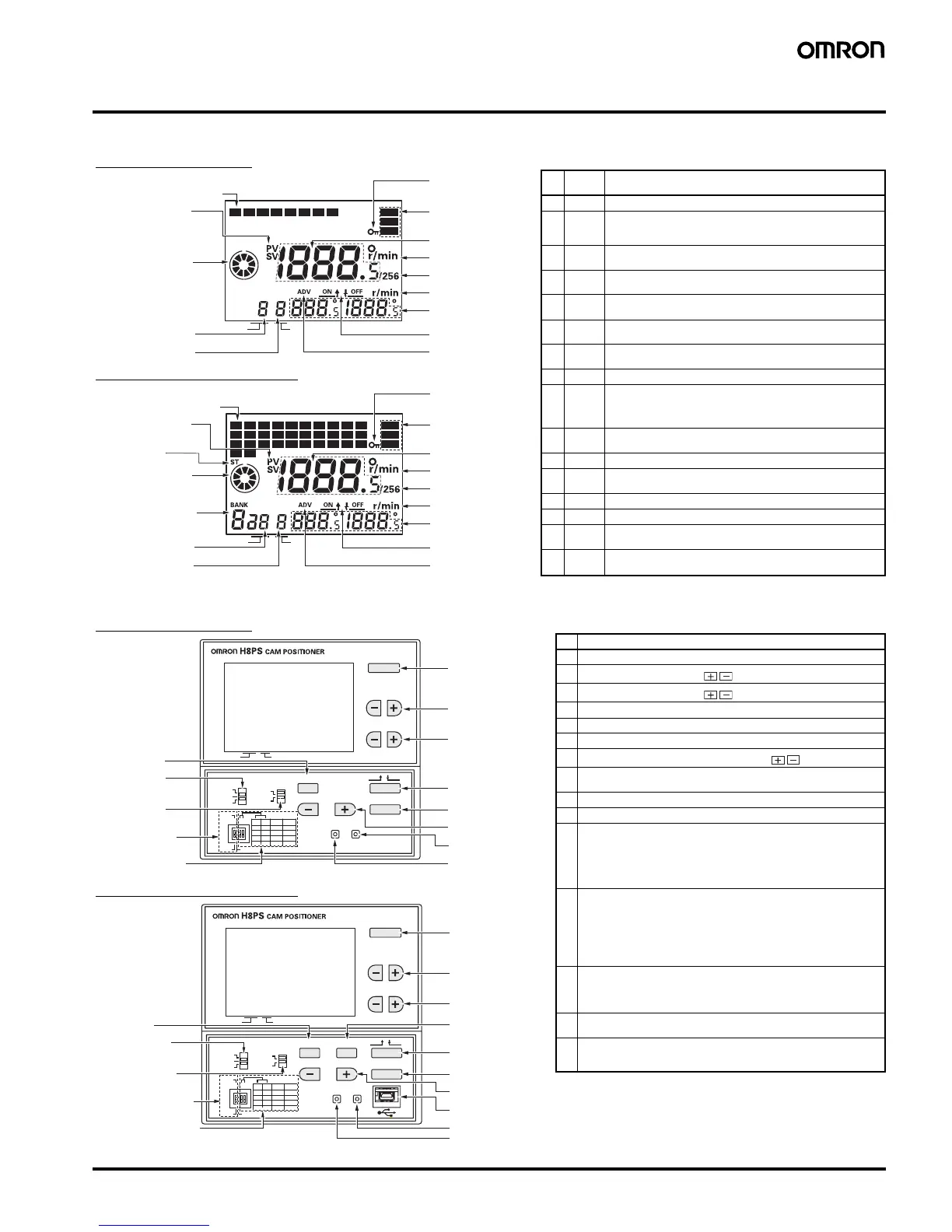

Nomenclature
■ Displays
■ Operation Keys
8-output Models
16-/32-output Models
Display Details
No. Display
color
Description
(1) Orange Lit while cam outputs are ON.
(2) Red PV: Lit while the present angular position or speed is displayed in
main display.
SV: Lit while the setting value is displayed in main display.
(3) Orange Lit while the start input is ON in Run or Test Mode.
Not lit when an error occurs.
(4) Orange Displays Encoder present angular position, direction, and speed
guidelines.
(5) Green Displays the bank number that is running in Run or Test Mode and
the bank number selected in Programming Mode.
(6) Green Displays the cam number for the angle setting displayed on sub-
display.
(7) Green Displays the step number for the angle setting displayed on sub-
display.
(8) Orange Lit while the All Protection function is enabled.
(9) Orange The indicator for the selected mode is lit.
PRG: Programming Mode
TST: Test Mode
RUN: Run Mode
(10) Red Displays the present angular position or the speed and settings
being made.
(11) Red Displays units for the angle or the speed displayed on main display.
(12) Red Lit while using an Encoder with a resolution of 256 if 256° display is
selected.
(13) Green Displays units for the angle or the speed displayed on sub-display.
(14) Green Displays the speed or the ON/OFF angle settings.
(15) Green Indicates whether main display displays the ON or OFF angle
setting.
(16) Green Lit while setting the Advance Angle Compensation (ADV) Function.
CAM
STEP
(1) Cam output indicators
(2) PV/SV indicator
(4) Rotation display
monitor
(6) Cam No. display
(7) Step No. display
(8) All protect
indication
(9) Mode indicator
(10) Main display
(11) Unit indication
(13) Unit indication
(12) 256 indication
(14) Sub-display
(15) ON/OFF
indication
(16) ADV indication
12345678
PRG
TST
RUN
CAM
STEP
(8) All protect
indication
(9) Mode indicator
(10) Main display
(11) Unit indication
(13) Unit indication
(12) 256 indication
(14) Sub-display
(15) ON/OFF
indication
(16) ADV indication
12345678910
PRG
TST
RUN
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
31 32
(3) Start input
indication
(5) Bank No. display
(2) PV/SV indicator
(4) Rotation display
monitor
(6) Cam No. display
(7) Step No. display
(1) Cam output indicators
8-output Models
16-/32-output Models
Operation Key Details
No. Description
1 Displays program details in Run Mode.
2
Selects the cam number with Keys.
3
Selects the step number with Keys.
4 Selects the bank number.
5 Selects the ON angle, or OFF angle
6 Writes the set data to memory.
7
Changes the angle or other setting value with Keys.
8 Connects the Cam Positioner to a personal computer via USB cable (order
separately) for programming with the Support Software (order separately).
9 Moves to the screen for clearing settings
10 Designates the current angle of the machine (Encoder) as the origin (0°).
11 Programming or Test Mode:Press to shift to the ADV function setting
screen.
Programming Mode: Press and hold at least 3 s to shift to the Function
Setting Mode.
Run Mode: Press and hold at least 5 s to enable/disable the All Protection
function.
12 Switches modes.
Programming Mode (PRGM):
Used to write cam programs, set the ADV function,
etc.
Test Mode (TEST): Used to modify settings while the Encoder is running.
Run Mode (RUN): Used for normal operation and to check the cam
program.
13 Select the method used for programming cams.
Teaching: ON/OFF Angles can be set based on actual machine (Encoder)
operation.
Manual: ANGLE Keys can be used to set ON/OFF angles.
14 Sets the H8PS rotation direction (rotation display monitor, etc.) to the
machine (Encoder) rotation direction.
15 Sets the resolution of the connected Encoder.
Also sets the unit for angle display when using an Encoder with a
resolution of 256.
ORIGIN
CHECK
CAM
STEP
CLEAR
ANGLE
ADV
WRITE
DO NOT USE.
CW
CCW
PLS/R
ANG
DSPL
CAM
STEP
1. CHECK key
2. CAM keys
3. STEP keys
5. ON/OFF key
6. WRITE key
7. ANGLE keys
9. CLEAR key
10. ORIGIN key
13. Programming
mode switch
15. Encoder resolution
switch
12. Mode switch
PRGM
TEST
RUN
TCH
MAN
ON
OFF
OFF
ON
4321
OFF
OFF
ON
ON
OFF
ON
OFF
720 360
360360
360256
256256
ON
43
11. ADV key
14. Rotation direction
switch
1. CHECK key
2. CAM keys
3. STEP keys
5. ON/OFF key
6. WRITE key
7. ANGLE keys
9. CLEAR key
10. ORIGIN key
8. USB connector
4. BANK key
ON
OFF
OFF
ON
4321
OFF
OFF
ON
ON
OFF
ON
OFF
720 360
360360
360256
256256
ON
43
ORIGIN
CHECK
CAM
STEP
CLEAR
ANGLE
ADV
WRITE
DO NOT USE.
CW
CCW
PLS/R
ANG
DSPL
CAM
STEP
PRGM
TEST
RUN
TCH
MAN
BANK
13. Programming
mode switch
15. Encoder resolution
switch
12. Mode switch
14. Rotation direction
switch
11. ADV key
