Omron H8PS Manual

Cam Positioner H8PS 25
Clearing Settings
Clearing All Programs
The all clear function can be used to delete all cam programs, the
settings for advance angle compensation function, and all other
settings. All settings in the Function Setting Mode will be returned to
their default settings.
Clearing Individual Steps, Cams, and Banks
ON/OFF angle settings can be deleted by step, by cam, or by bank. If
settings are deleted by cam, the settings for the advance angle
compensation (ADV) function will not be deleted. If settings are
deleted by bank, the settings for the ADV function will also be
deleted. Settings in the Function Setting Mode will not be deleted.

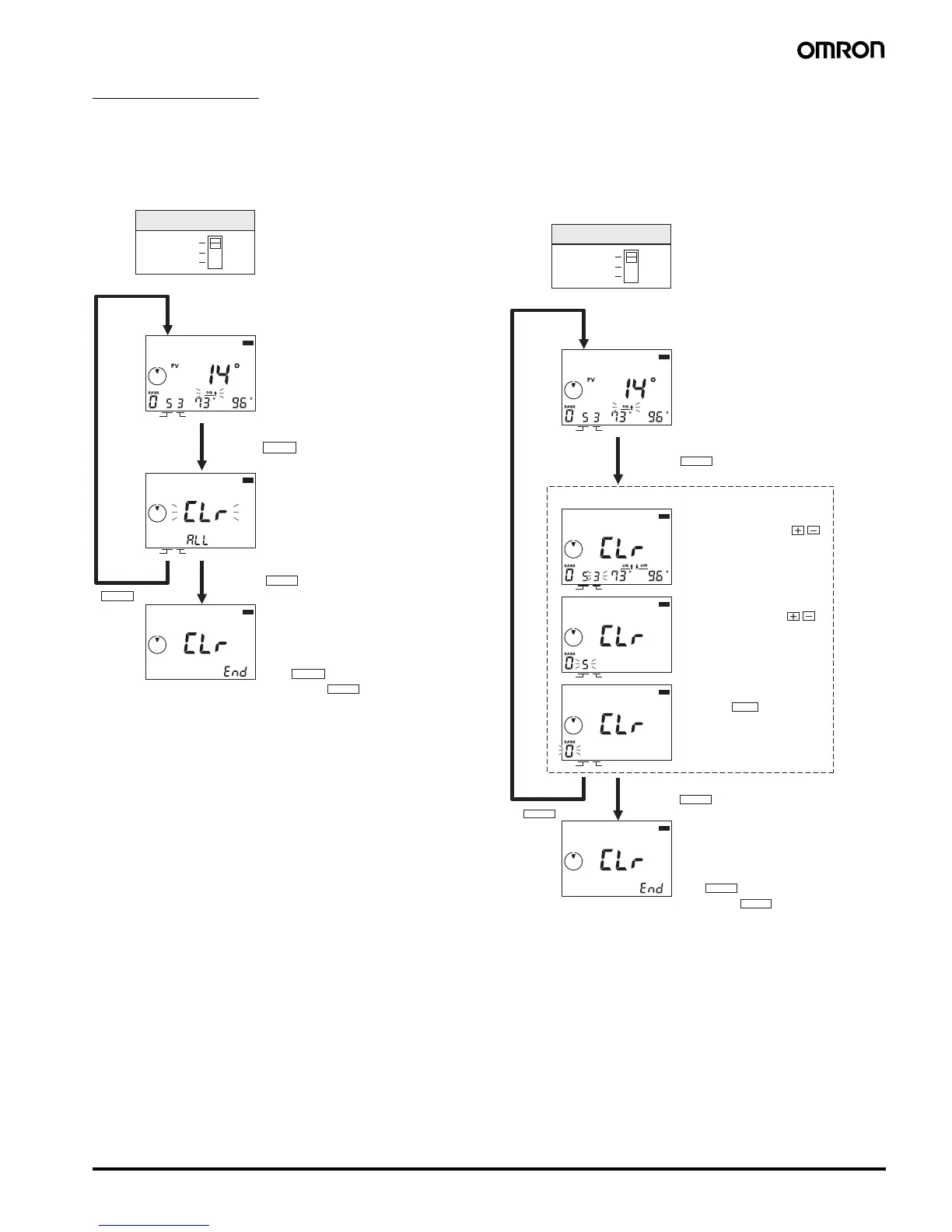

Initial Display
Set the mode switch to PRGM or TEST.
Press the
WRITE Key.
CLEAR Key
Press the
CLEAR Key for 3 s min.
Confirm that clr flashes on the display.
After the completion of all clear
processing, the screen displays end for
approximately one second and then
resume the previously displayed screen.
If the
CLEAR Key is pressed again before
pressing the
WRITE Key, the settings will
not be deleted and the previous display
will be resumed.
Mode
PRGM
TEST
RUN
CAM
STEP
PRG
CAM
STEP
PRG
PRG
Initial Display
Screens for Individually Clearing Items
Set the mode switch to PRGM or TEST.
Press the
WRITE Key.
Press the
CLEAR Key.
Deleting Settings by Step
Press the STEP Keys
to specify the step to be
deleted.
Deleting Settings by Cams
Press the CAM Keys to
specify the cam to be
deleted.
Deleting Settings by Banks
Press the
BANK Key to
specify the bank to be
deleted.
CLEAR Key.
After the completion of all clear
processing, the screen displays end for
approximately one second and then
resume the previously displayed screen.
If the
CLEAR Key is pressed again before
pressing the
WRITE Key, the settings will
not be deleted and the previous display
will be resumed.
Mode
PRGM
TEST
RUN
CAM
STEP
PRG
CAM
STEP
PRG
CAM
STEP
PRG
CAM
STEP
PRG
PRG
