22 Cam Positioner H8PS

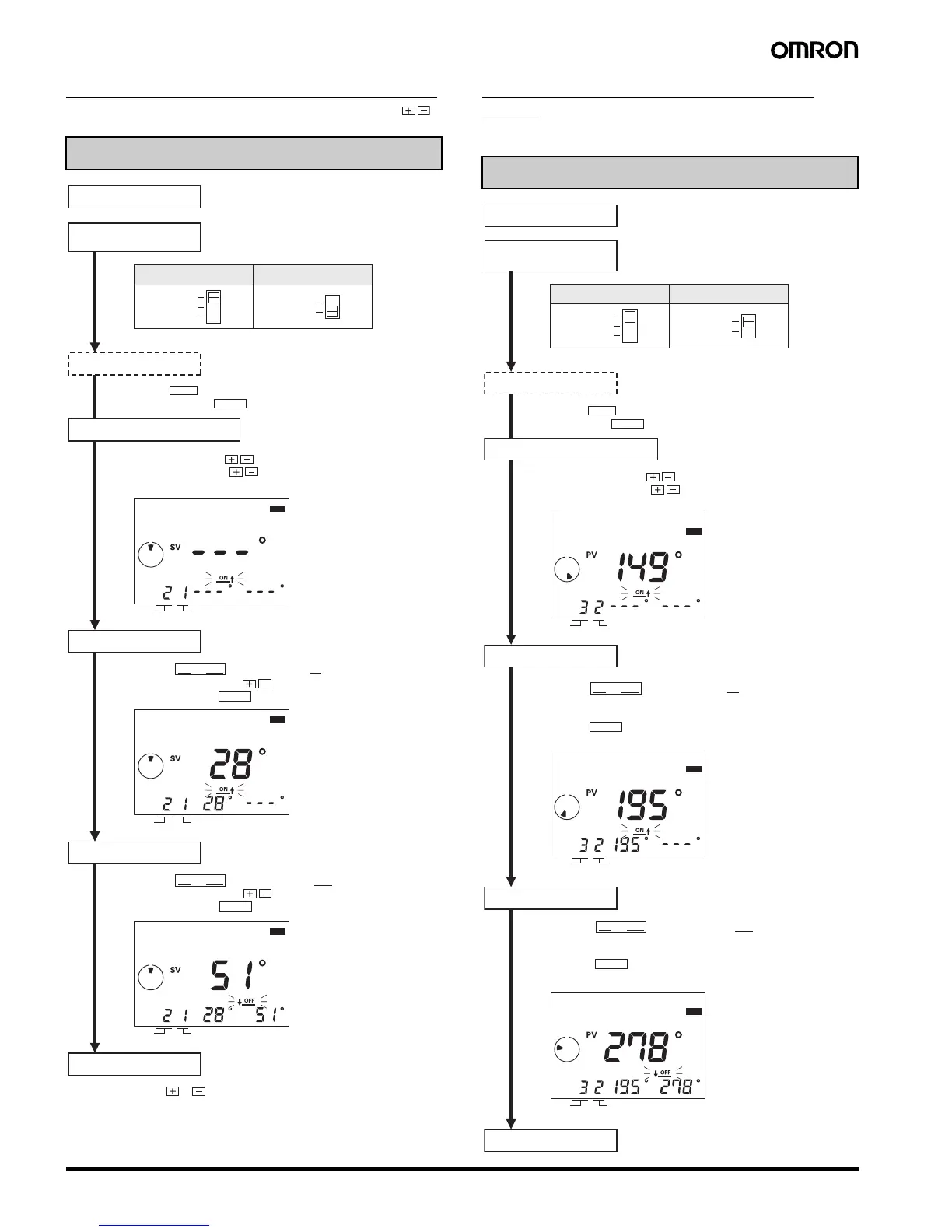

Setting ON/OFF Angles in Manual Mode
ON/OFF angles can be set manually using the ANGLE Keys
on the front of the Cam Positioner.
Setting ON/OFF Angles in Teaching
Mode
ON/OFF angles can be set based on actual machine (Encoder)
operation.
Example: Setting Step 1 of Cam No. 2 to Turn ON at 28° and
Turn OFF at 51
°
Set the bank No.
Set the cam and step No.
Set the ON angle.
Set the OFF angle.
End
Change the mode.
Set the programming
mode switch.
Set the mode switch to PRGM.
Set the programming mode switch to MAN.
Banks can be specified only for
16-/32-output models.
Note: Pressing the or Key continually will automatically increment or
decrement the value. Pressing the other key during automatic increment
or decrement will increase the speed.
• Press the BANK Key to specify the bank number
and then press the
WRITE Key.
• Press the CAM Keys to specify cam No. 2.
• Press the STEP Keys to specify step No. 1.
• Press the Key to flash the .
• Press the ANGLE Keys to set an angle of 28
and then press the
WRITE Key.
• Press the Key to flash the .
• Press the ANGLE Keys to set an angle of 51
and then press the
WRITE Key.
"↓OFF"
"ON↑"
ON↑ ↓OFF
ON↑ ↓OFF
Mode Programming mode
PRGM
TEST
RUN
TCH
MAN
CAM
STEP
PRG
CAM
STEP
PRG
CAM
STEP
PRG
Example: Setting the ON/OFF Angles by Teaching Step 2 of
Cam No. 3
Set the bank No.
Set the cam and step No.
Set the ON angle.
Set the OFF angle.
End
Change the mode.
Set the programming
mode switch.
• Press the Key to flash the .
• Turn the machine (Encoder) to the desired ON angle.
(195° in this example)
• Press the
WRITE Key.
• Press the Key to flash the .
• Turn the machine (Encoder) to the desired OFF angle.
(278° in this example)
• Press the
WRITE Key.
Set the mode switch to PRGM.
Set the programming mode switch to TCH.
Banks can be specified only for
16-/32-output models.
• Press the CAM Keys to specify cam No. 3.
• Press the STEP Keys to specify step No. 2.
• Press the
BANK Key to specify the bank number and
then press the
WRITE Key.
Mode Programming mode
PRGM
TEST
RUN
TCH
MAN
CAM
STEP
TST
CAM
STEP
TST
CAM
STEP
TST
"ON↑"
ON↑ ↓OFF
"↓OFF"
ON↑ ↓OFF
