Chapter 10: Maintenance

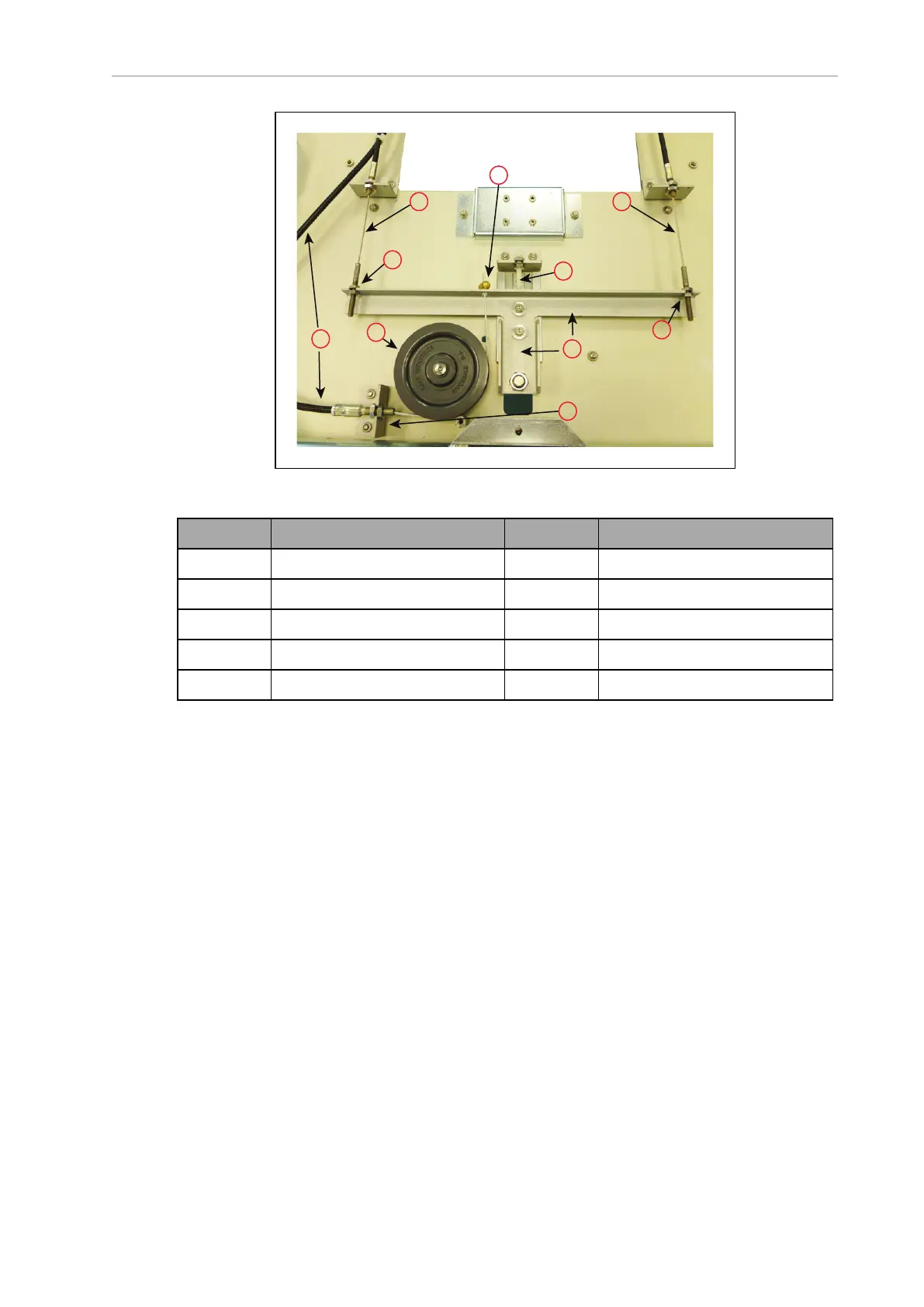

Figure 10-26. Internal Brake-Release Mechanism
Callout Description Callout Description
A Right Brake Cable F Actuator Bar
B Right Brake Adjust G Actuator Bar Hard Stop
C Lever Cable H Left Brake Cable
D Pulley I Left Brake Adjust
E Lever Cable Anchor K Lever Cable Clamp
Replacing Brake Lever Cable
To replace the cart brake-release cable:
1.
Remove the cart top plate. See Removing Top Plate on page 156.
2.
Disconnect the end of the cable from the brake control mechanism.
a.
Disconnect the inner wire from the lever cable clamp.
b.
Disconnect the lever cable from the lever cable anchor.
3.
Feed the lever cable out through the hole in the horizontal back bar of the cart.
You will need to cut the cable tie at the saddle.
4.
Disconnect the brake-release lever from its mounting place.
This will vary, depending on how and where you mounted it.
Adjusting the Lever Cable
The brake lever cable needs to be adjusted so there is no excess slack, but so the brakes are
engaged when the lever is not being actuated.
14766-000 Rev H LD Cart Transporter User's Manual 183
