Chapter 3: Setup
Rolling the LD Platform Cart Transporter off of the Crate Base
1.
Install the crate front onto the crate base, to serve as a ramp.
There are two hanger bolts that stick up out of the front of the crate base. These fit into
two holes in the end of the ramp. Orient the ramp as shown in Figure 3-7. to ensure
there is a smooth transition between the ramp and the ground.
2.
Roll the transporter off of the crate base and down the ramp.

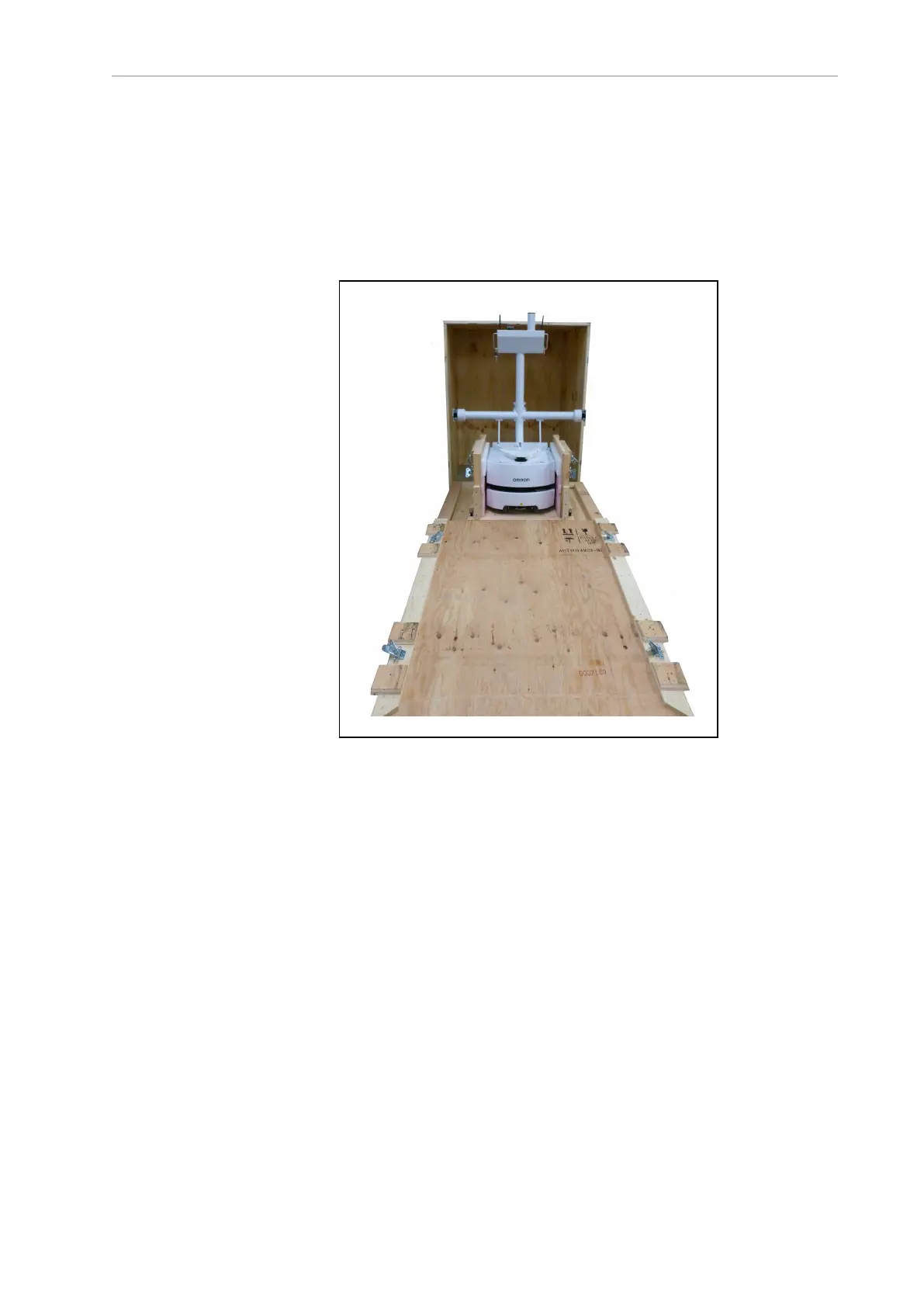

Figure 3-7. LD Platform Cart Transporter on Crate Base, with Ramp
3.
Remove the two wheel pins that held the wheels up during transit.
The wheels are pinned up to protect the motors and drives. When you receive your LD
Platform Cart Transporter, the drive wheels will not touch the ground until you remove
the wheel pins. The wheel pin hole is shown in the following figure.
14766-000 Rev H LD Cart Transporter User's Manual 45
