4 Optics and Lighting
4-6
MicroHAWK F320-F / F330-F / F420-F / F430-F Smart Camera User Manual
4-4 MicroHAWK F430-F External
Illumination Control and Wiring
The MicroHAWK F430-F Smart Camera supports external lighting with Omron Microscan’s NERLITE
Smart Series lights. The diagrams below demonstrates how the camera and light can be configured.
The light is controlled using the Lighting control in the Camera configuration settings of AutoVISION
software.
Item Description Part Number
1 MAX Series Lights NER-011660XXXG
2
Power Supply DSP100 24VDC 4.2A DIN Mount 97-000006-01
Power Supply DSP60 24VDC 2.5A DIN Mount NER-011504100
3
Cable, 5P M12 Socket To Flying Leads, 3M 61-000186-01
Cable, 5P M12 Socket To Flying Leads, 5M 61-000187-01
4
Cable, 5P M12 Plug To 5P M12 Socket, 1M 61-000184-01
Cable, 5P M12 Plug To 5P M12 Socket, 3M 61-000185-01
5 Cable, Power Smart Series to QX-1 61-000204-01
3
2

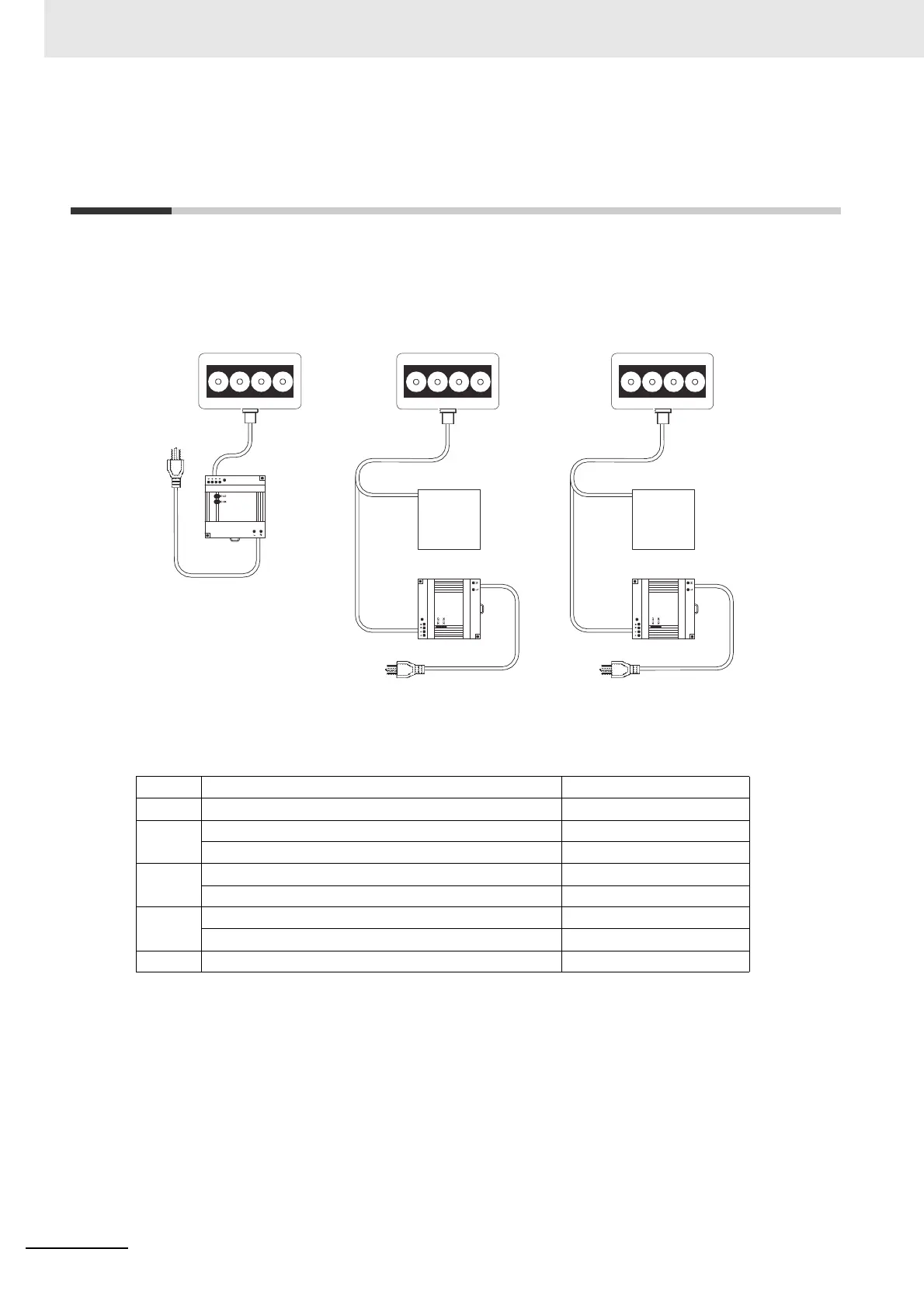

Figure A
MAX Series Illuminator
with power supply
1
3
2
Customer
supplied
signal source
3
Customer
supplied
signal source
11
Figure C
MAX Series Illuminator
with customer supplied
strobe trigger
signal source
Figure B
MAX Series Illuminator with
customer supplied dimming
or on-off signal source
