Wiring Section 2-2
40
2-2 Wiring
2-2-1 I/O connector
The I/O connector is a 28-pin connector. Input 0 and input 1 can also be used
as registration inputs.

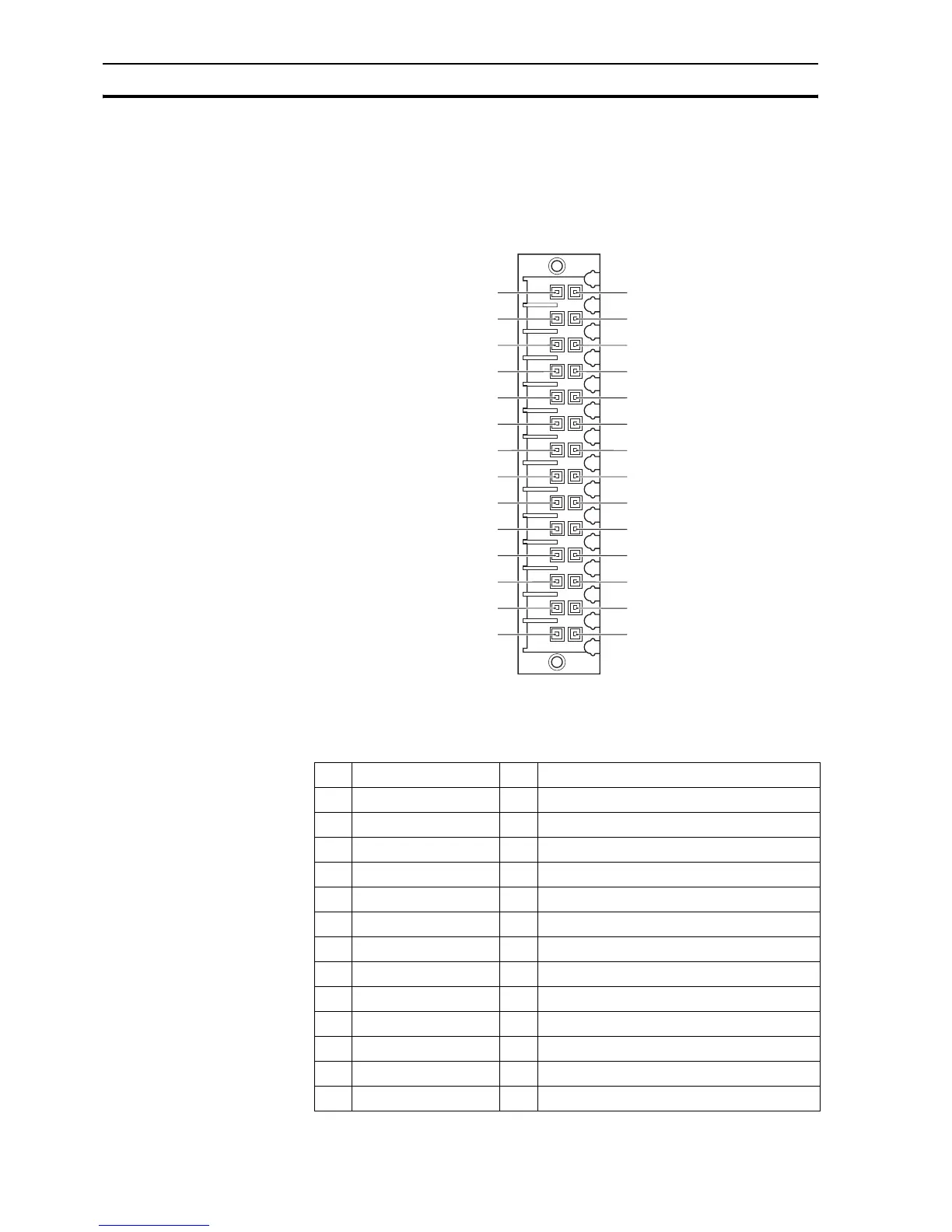

I/O connector pins
The connections of the pins are given in the table below.
/i
Pin Connection Pin Connection
1 Input common 2 Input common
3 Registration input 0 4 Registration input 1
5 Input 2 6 Input 3
7 Input 4 8 Input 5
9 Input 6 10 Input 7
11 Input 8 12 Input 9
13 Input 10 14 Input 11
15 Input 12 16 Input 13
17 Input 14 18 Input 15
19 Output 8 (PSWITCH) 20 Output 9
21 Output 10 22 Output 11
23 Output 12 24 Output 13
25 Output 14 26 Output 15
1
3
5
7
9
11
13
15
17
2
4
6
8
10
12
14
16
18
19
21
23
25
27
20
22
24
26
28
