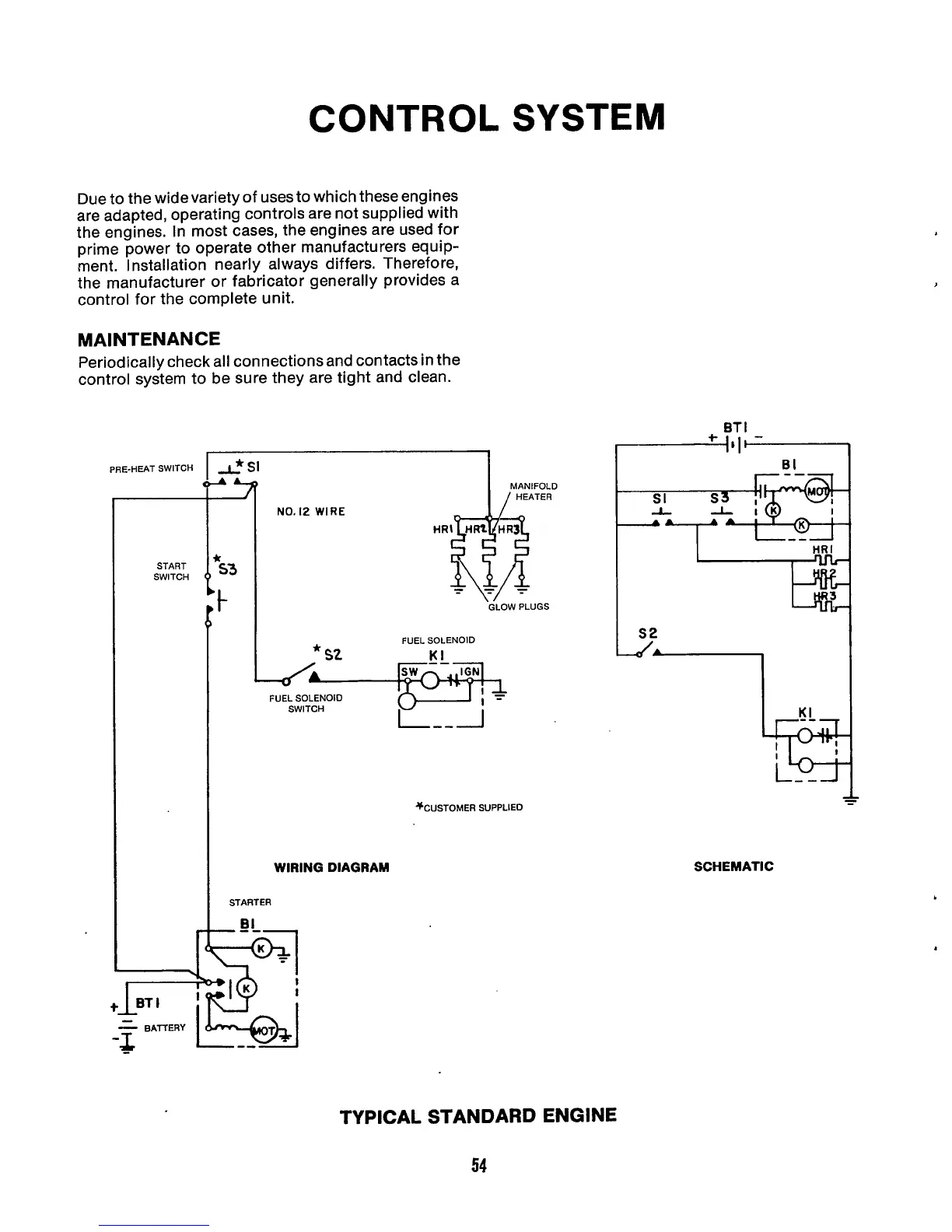

CONTROL
SYSTEM
Due to the widevariety of uses to which these engines
are adapted, operating controls are not supplied with
the engines. In most cases, the engines are used for
prime power to operate other manufacturers equip-
ment. Installation nearly always differs. Therefore,
the manufacturer
or
fabricator generally provides a
control for the complete unit.
MAINTENANCE
Periodically check all connections and contacts
in
the
control system to be sure they are tight and clean.
PRE-HEAT SWITCH
I
A*
SI
I
SWITCH
I
NO.
12
WIRE
GLOW PLUGS
FUEL SOLENOID
*
s2
FUEL SOLENOID
SWITCH
I
WIRING
DIAGRAM
STARTER
81
----
*I
+CUSTOMER SUPPLIED
,
SCHEMATIC
TYPICAL STANDARD ENGINE
54
