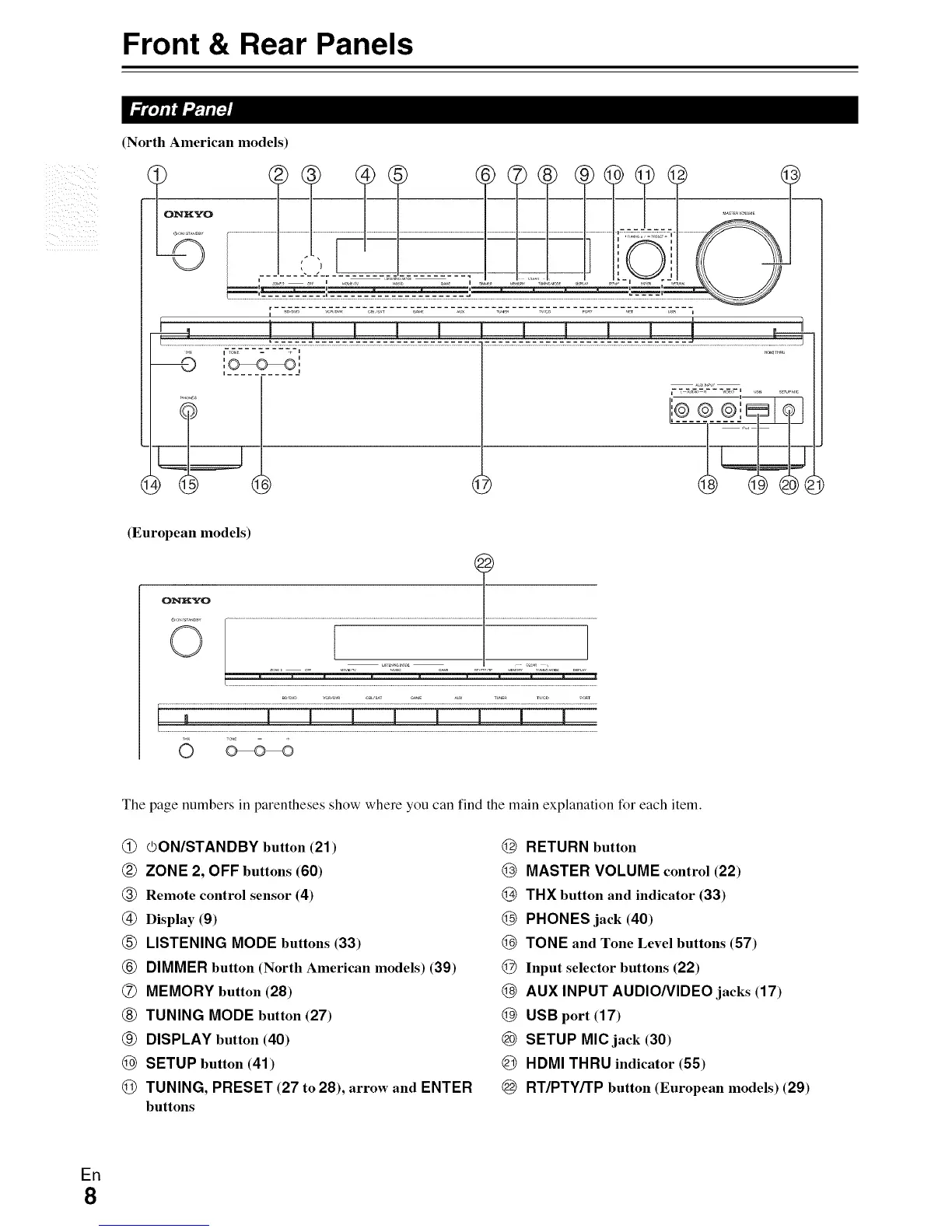

Front & Rear Panels
51 i
(North American models)
u.... =
1
(European models)
=
©
The page numbers in parentheses show where you can find the main explanation for each item.
@ _ON/STANDBY button (21)
(_) ZONE 2, OFF buttons (60)
@ Remote control sensor (4)
@ Display (9)
@ LISTENING MODE buttons (33)
@ DIMMER button (North American models) (39)
@ MEMORY button (28)
@ TUNING MODE button (27)
(_) DISPLAY button (40)
@ SETUP button (41)
@ TUNING, PRESET (27 to 28), arrow and ENTER
buttons
@ RETURN button
@ MASTER VOLUME control (22)
@ THX button and indicator (33)
@ PHONES jack (40)
@ TONE and Tone Level buttons (57)
@ Input selector buttons (22)
@ AUX INPUT AUDIO/VIDEO jacks (17)
@ USB port (17)
@ SETUP MICjack (30)
@ HDMI THRU indicator (55)
@ RT/PTY/TP button (European models) (29)
Erl
8
