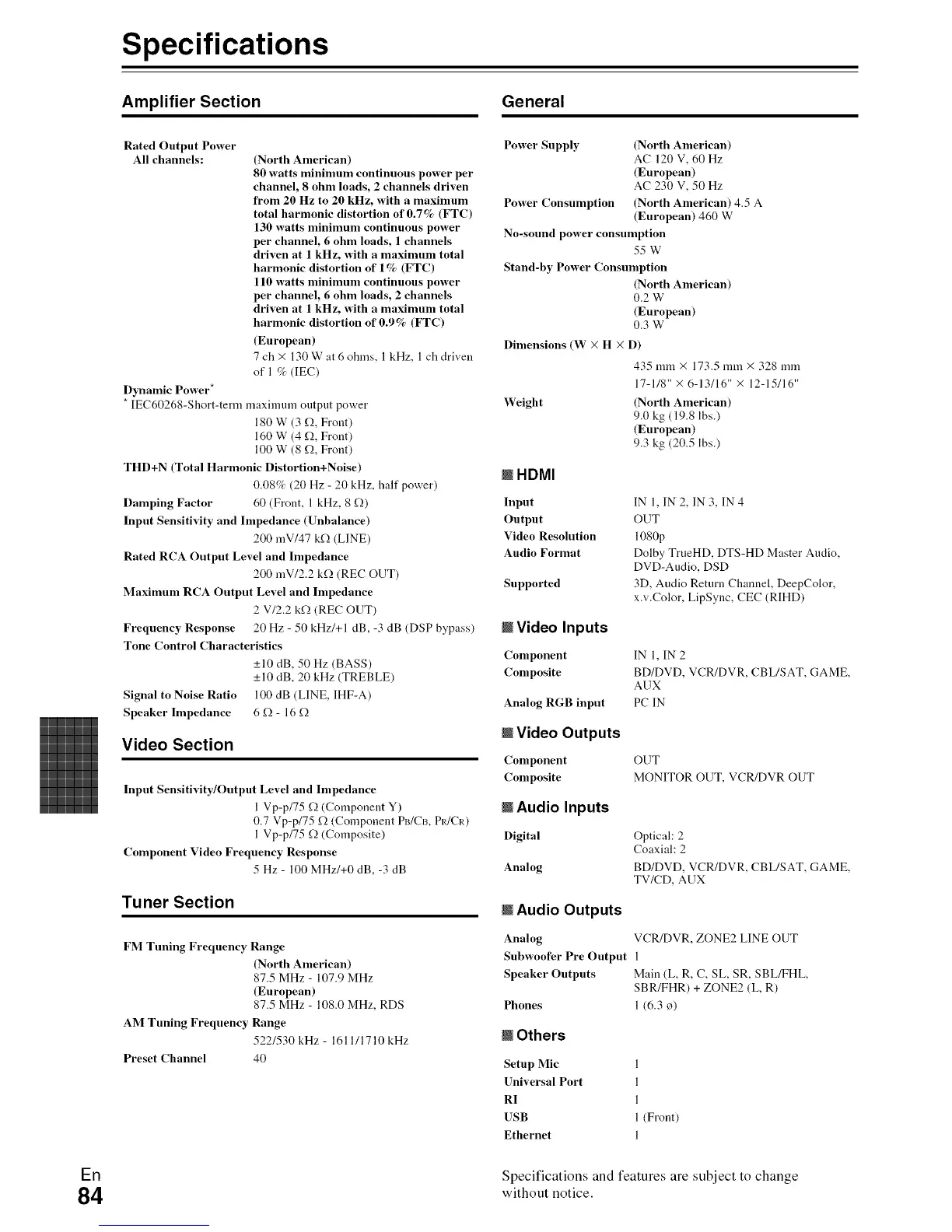

Specifications
Amplifier Section
General
Rated Output Power
All channels:
(North American)
80 watts minimum continuous power per
channel, 8 ohm loads, 2 channels driven
from 20 Hz to 20 kHz, with a maximum
total harmonic distortion of 0.7 % (FTC)
130 watts minimum continuous power
per channel, 6 ohm loads, 1 channels
driven at 1 kHz, with a maximum total
harmonic distortion of 1% (FTC)
110 watts minimum continuous power
per channel, 6 ohm loads, 2 channels
driven at 1 kHz, with a maximum total
harmonic distortion of 0.9% (FTC)
(European)
7ch × 130 W at 6 ohms, 1 kHz, 1 ch driven
of 1% (IEC)
Dynamic Power*
* IEC60268-Short-term maximum outpnt power
180 W (3 f!, Front)
160 W (4 fL Front)
100 W (8 fL Front)
THD+N (Total Harmonic Distortlon+Noise)
0.08% (20 Hz - 20 kHz, half power)
Damping Factor 60 (Front, 1 kHz, 8 f))
Input Sensitivity and Impedance (Unbalance)
200 mV/47 kf2 (LINE)
Rated RCA Output Level and Impedance
200 mV/2.2 kf) (REC OUT)
Maximum RCA Output Level and Impedance
2 V/2.2 kf2 (REC OUT)
Frequency Response 20 Hz - 50 kHz/+l dB, -3 dB (DSP bypass)
Tone Control Characteristics
_+10dB, 50 Hz (BASS)
_+10dB, 20 kHz (TREBLE)
Signal to Noise Ratio 100 dB (LINE, IHF-A)
Speaker Impedance 6 f_ - 16 f_
Video Section
Input Sensitivity/Output Level and Impedance
1 Vp-p/75 f_ (Component Y)
0.7 Vp-p/75 f2 (Component PB/Cm PIJCIO
1 Vp-p/75 f_ (Composite)
Component Video Frequency Response
5 Hz - 100 MHz/+0 dB, -3 dB
Tuner Section
FM Tuning Frequency Range
(North American)
87.5 MHz - 107.9 MHz
(European)
87.5 MHz - 108.0 MHz, RDS
AM Tuning Frequency Range
522/530 kHz - 1611/1710 kHz
Preset Channel 40
Power Supply (North American)
AC 120 V, 60 Hz
(European)
AC 230 V, 50 Hz
Power Consumption (North American) 4.5 A
(European) 460 W
No-sound power consumption
55 W
Stand-by Power Consumption
(North American)
0.2W
(European)
0.3 W
Dimensions (W × H × D)
435 mm × 173.5 mm× 328 mm
17-118" × 6-13116" × 12-15116"
Weight
(North American)
9.0 kg (19.8 lbs.)
(European)
9.3 kg (20.5 lbs.)
NHDMI
Input IN 1, IN 2, IN 3, IN 4
Output OUT
Video Resolution 1080p
Audio Format Dolby TrueHD, DTS-HD Master Audio,
DVD-Audio, DSD
Supported 3D, Audio Return Channel, DeepColor,
x.v.Color, LipSync, CEC (RIHD)
N Video Inputs
Component IN 1, IN 2
Composite BD/DVD, VCR/DVR, CBL/SAT, GAME,
AUX
Analog RGB input PC IN
N Video Outputs
Component OUT
Composite MONITOR OUT, VCR/DVR OUT
N Audio Inputs
Digital
Analog
Optical: 2
Coaxial: 2
BD/DVD, VCR/DVR, CBL/SAT, GAME,
TV/CD, AUX
N Audio Outputs
Analog VCR/DVR, ZONE2 LINE OUT
Subwoofer Pre Output 1
Speaker Outputs Main (L, R, C, SL, SR, SBL/FHL,
SBR/FHR) + ZONE2 (L, R)
Phones 1 (6.3 o)
N Others
Setup Mic 1
Universal Port 1
RI 1
USB 1 (Front)
Ethernet 1
EF1
84
Specifications and features are subject to change
without notice.
