Connecting the AV Receiver—Continued
Note:
When it is connected at the same time as AUX INPUT AUDIO L/R terminal, the input of PORTABLE is given priority
to and outputted.

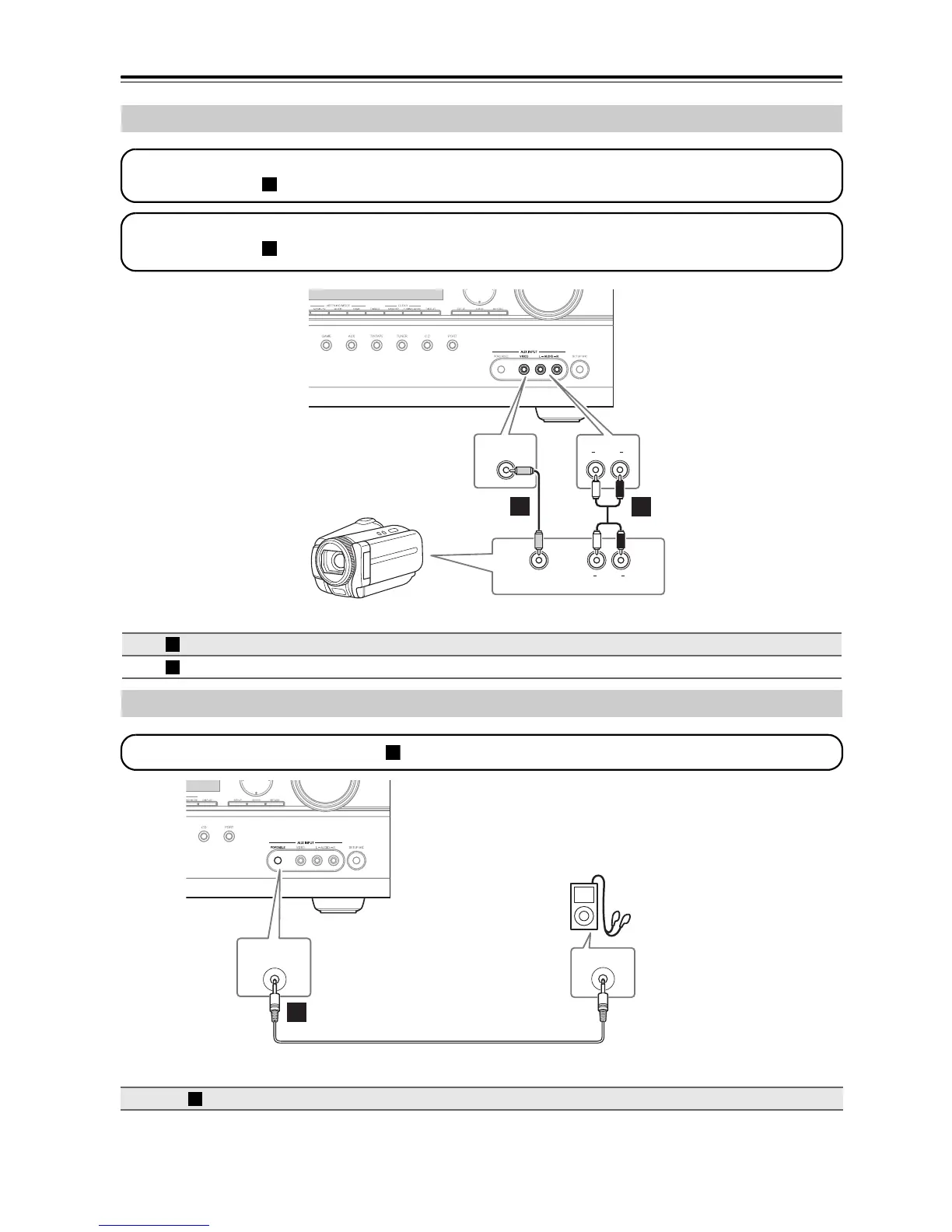

Connecting a Camcorder or Other Device
Connection AV receiver Signal flow Camcorder etc.
AUX INPUT VIDEO ⇐ Composite video output
AUX INPUT L-AUDIO-R ⇐ Analog audio L/R output
Step 1: Video Connection
Make the connection .
A
Step 2: Audio Connection
Make the connection .
a
AUDIO
OUT
VIDEO
OUT
LR
AUDIO
VIDEO
LR
AUX INPUT
AUX INPUT
A
a
Camcorder, etc.
A
a
Connecting a Portable Audio player
Connection AV receiver Signal flow Portable Audio Player
AUX INPUT PORTABLE ⇐ Analog audio line output
AUX INPUT
PORTABLE
AUDIO LINE OUT
a
Step 1: Make the audio connection .
a
Portable
Audio Player
a
