Connecting the AV Receiver—Continued
• With connection , you can play and record and listen in Zone 2.
• To connect the recorder digitally for playback, use connections and , or and .

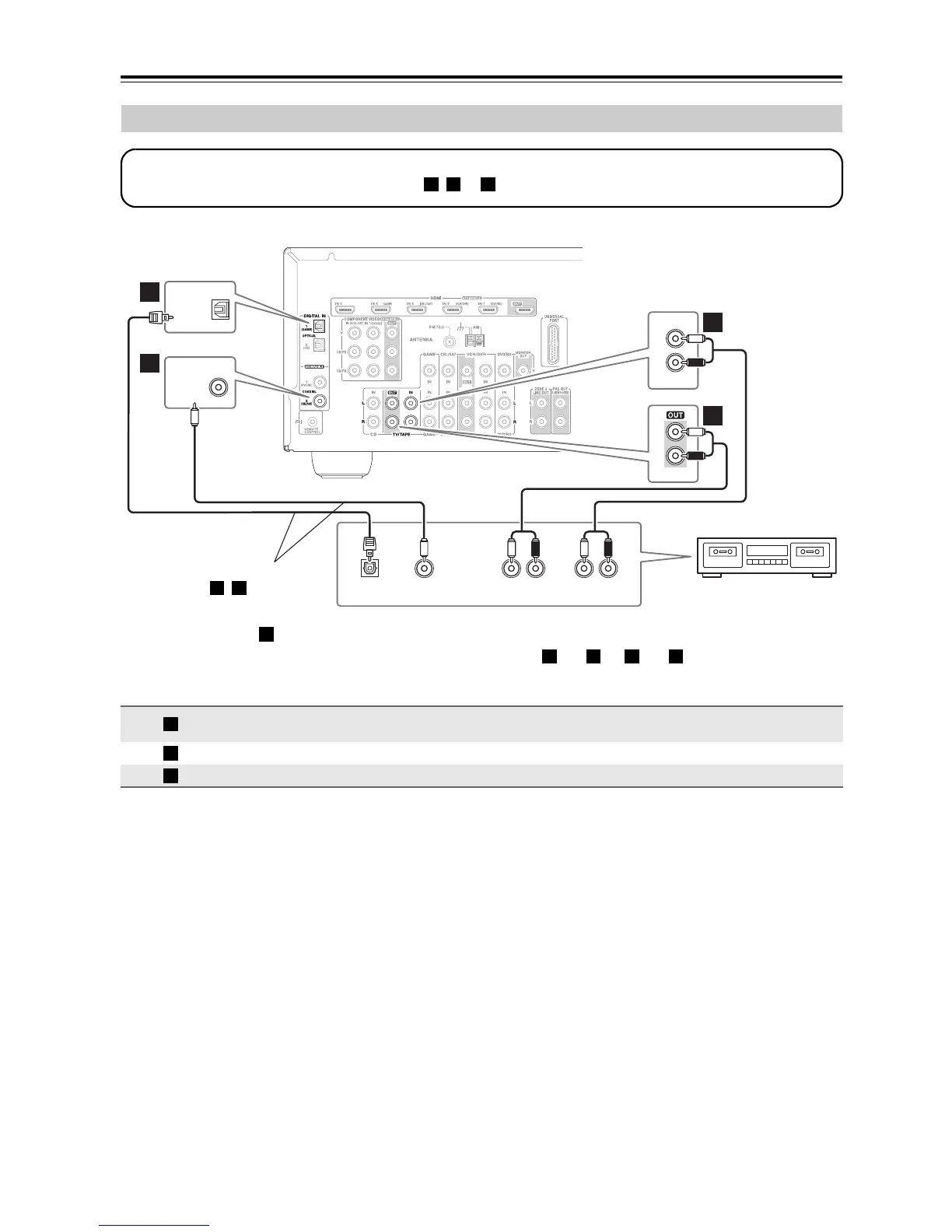

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder
TV/TAPE IN L/R
TV/TAPE OUT L/R
⇐
⇒
Analog audio L/R output
Analog audio L/R input
DIGITAL IN COAXIAL 2 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
COAXIAL
OUT
AUDIO
IN
LR
OPTICAL
OUT
L
R
IN
TV/TAPE
AUDIO
OUT
LR
L
R
TV/TAPE
COAXIAL
OPTICAL
2
(CBL/SAT)
1
(GAME)
b
a
a
c
Step 1:
Choose a connection that matches the recorder ( , or ), and then make the connection.
a b c
Cassette, CDR, MD, etc.
Connect one or the other
Connection , must be
assigned (see page 41)
b c
a
a b a c
a
b
c
