9
Front & Rear Panels—Continued
q MASTER VOLUME control (50)
This control is used to adjust the volume of the AV
receiver to Min, 1 through 79 or Max.
r PHONES jack (52)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
s Input selector buttons (50)
These buttons are used to select from the following
input sources: DVD/BD, VCR/DVR, CBL/SAT,
GAME, AUX, TV/TAPE, TUNER, CD, PORT.
t AUX INPUT (32)
This input can be used to connect a camcorder,
game console, and so on. There are jacks for com-
posite video, and analog audio.
PORTABLE (32):
Used to connect a portable Audio Player.
u SETUP MIC jack (46)
The Audyssey 2EQ™ Room Correction and
Speaker Setup microphone connects here.
For detailed information, see the pages in parentheses.
a SLEEP indicator (52)
Lights up when the Sleep function has been set.
b MUTING indicator (52)
Flashes while the AV receiver is muted.
c Listening mode and format indicators (59)
Show the selected listening mode and audio input
signal format.
d Tuning indicators (53)
AUTO (53):
Lights up when Auto Tuning mode is selected for
AM or FM radio. Goes off when Manual Tuning
mode is selected.
TUNED (53):
Lights up when tuned to a radio station.
FM STEREO (53):
Lights up when tuned to a stereo FM station.
e Message area
Displays various information.
f Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: PCM, MULTI CH, or HDMI.
g Audyssey indicator (45, 69)
Flashes during Audyssey 2EQ™ Room Correction
and Speaker Setup. Lights up when the “Equalizer
Settings” is set to “Audyssey”.

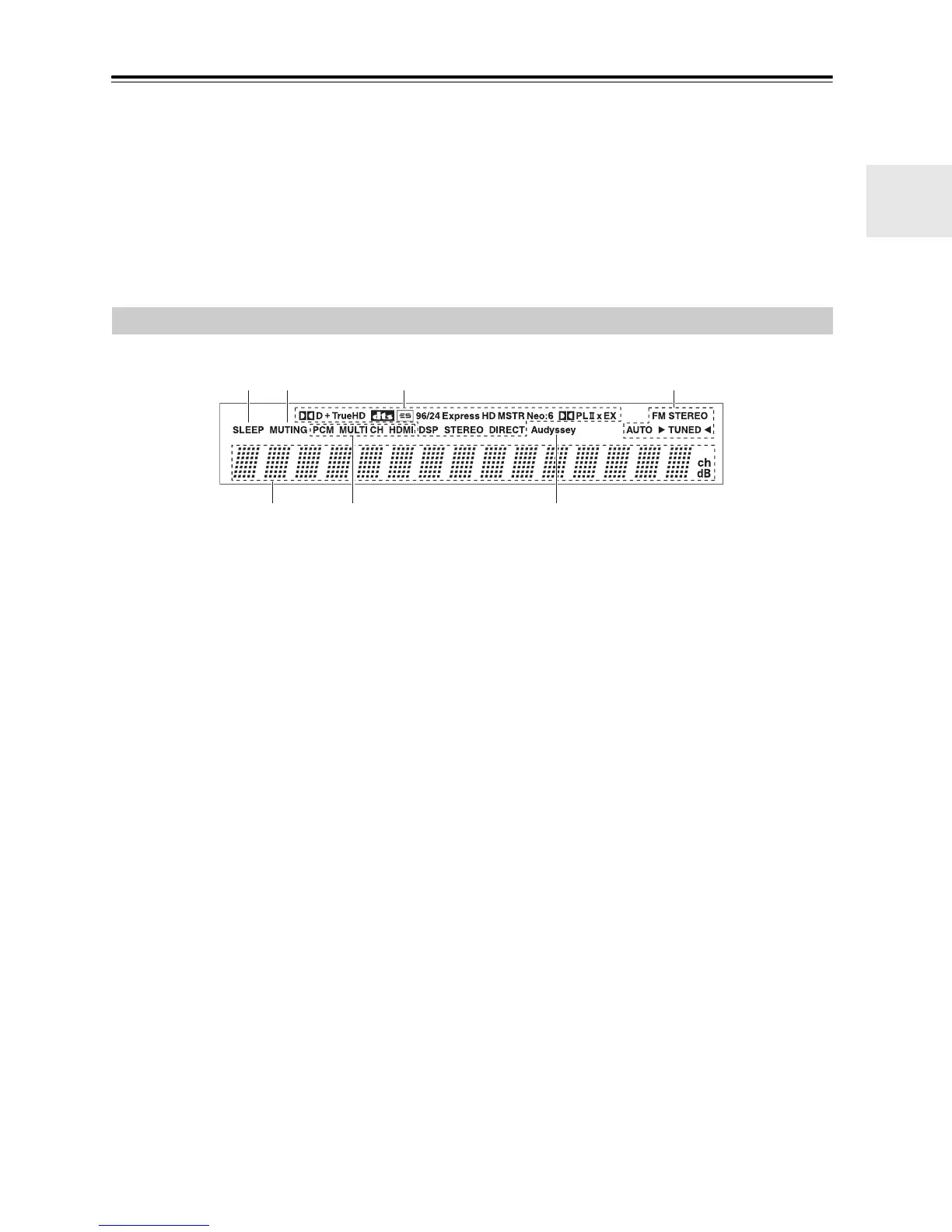

Display
ab
ef g
cd
