a DIGITAL IN COAXIAL and OPTICAL jacks
b u REMOTE CONTROL jack
c UNIVERSAL PORT jack
d ETHERNET port
e MONITOR OUT V and S jacks
f HDMI IN and OUT jacks
g COMPONENT VIDEO IN and MONITOR OUT
jacks
h FM ANTENNA jack and AM ANTENNA terminal
i PC IN port
j Power cord
k GND screw
l Composite, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT,
CBL/SAT IN, GAME IN, PC IN, TV/CD IN and
PHONO IN)
m Multichannel input jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R and SUBWOOFER)
n PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SB/FH/FW
*
L/R and SUBWOOFER)
*
SB···Surround Back, FH···Front High, FW···Front Wide
o ZONE 2 LINE OUT jacks
p Speaker Terminals
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)

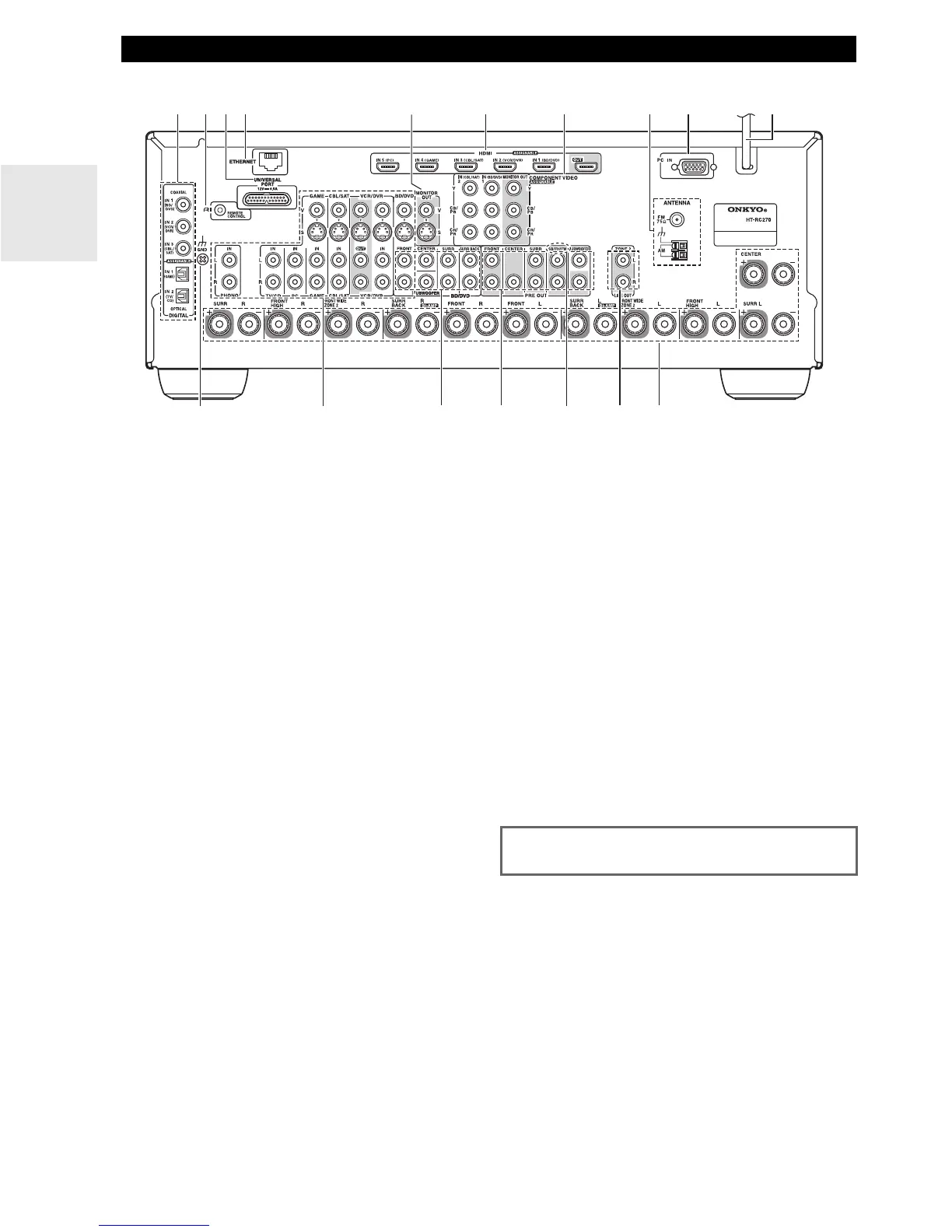

Rear Panel
a cb
h
e
d
f
ig
k
l m n
* p
o
j
See “Connecting the AV Receiver” for connection infor-
mation (➔ 13 to 23).
