Front & Rear Panels
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a ON/STANDBY button (➔ 24)
b STANDBY indicator (➔ 24)
c HDMI THRU indicator (➔ 55)
d ZONE 2 indicator (➔ 69)
e Remote control sensor (➔ 4)
f ZONE 2, OFF, ZONE 2 LEVEL/TONE LEVEL
and TONE buttons (➔ 56, 69 to 70)
g Display (➔ 9)
h LISTENING MODE buttons (MOVIE/TV, MUSIC
and GAME) (➔ 35)
i DIMMER button (➔ 25)
j MEMORY button (➔ 33)
k TUNING MODE button (➔ 32)
l DISPLAY button (➔ 25)
m SETUP button (➔ 41)
n TUNING, PRESET (➔ 32 to 33), arrow and
ENTER buttons
o RETURN button
p MASTER VOLUME control and indicator (➔ 25)
q PHONES jack (➔ 27)
r AUX INPUT HDMI jack (➔ 18)
s PURE AUDIO button and indicator (➔ 35)
t Input selector buttons (BD/DVD, VCR/DVR,
CBL/SAT, GAME, PC, AUX, TUNER, TV/CD,
PHONO, PORT and NET/USB) (➔ 25)
u USB port (➔ 66)
v AUX INPUT LINE IN jack (➔ 19)
w AUX INPUT VIDEO jack (➔ 19)
x AUX INPUT AUDIO jacks (➔ 19)
y SETUP MIC jack (➔ 29)

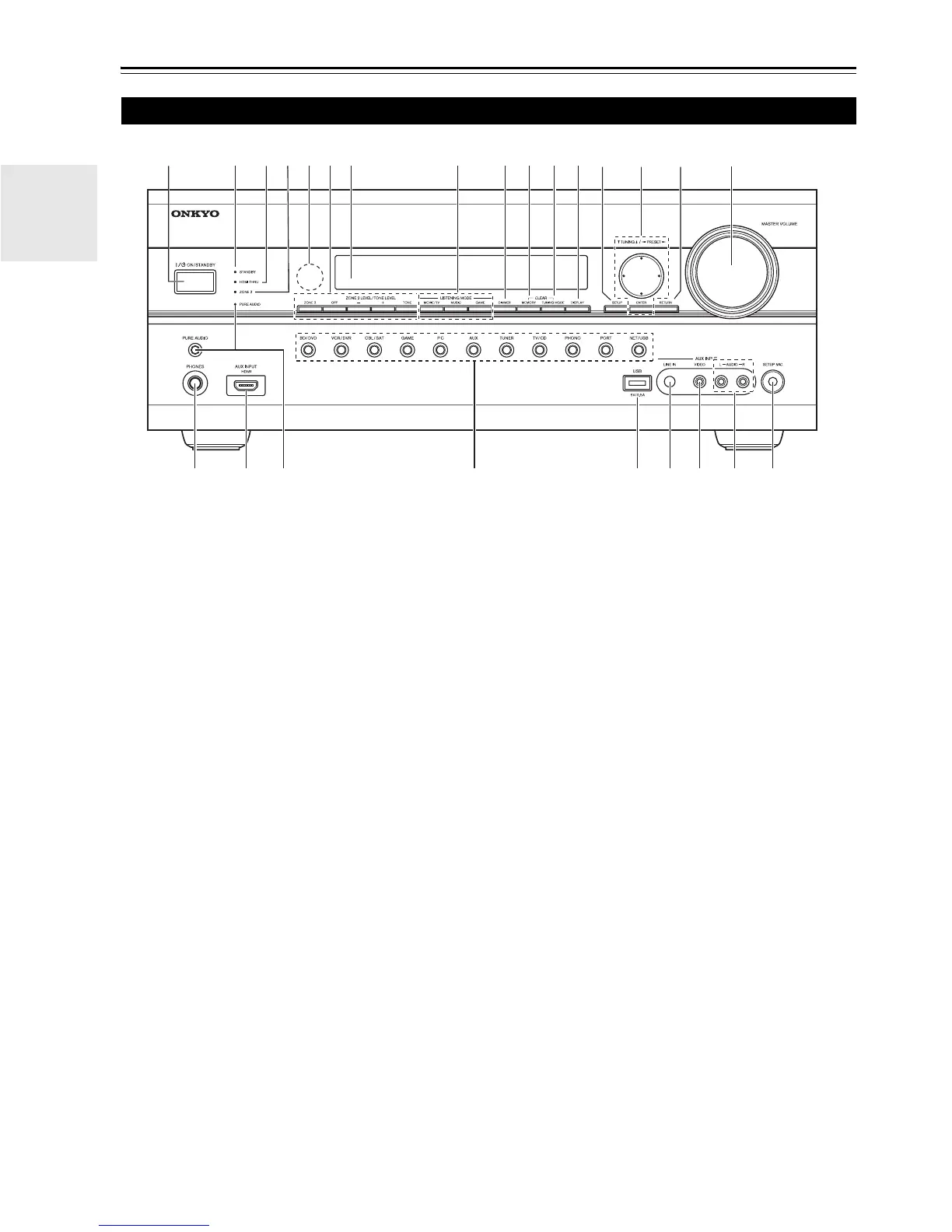

Front Panel
p
f
g h i j k lb de
mno
q r
ts
vuw yx
a c
