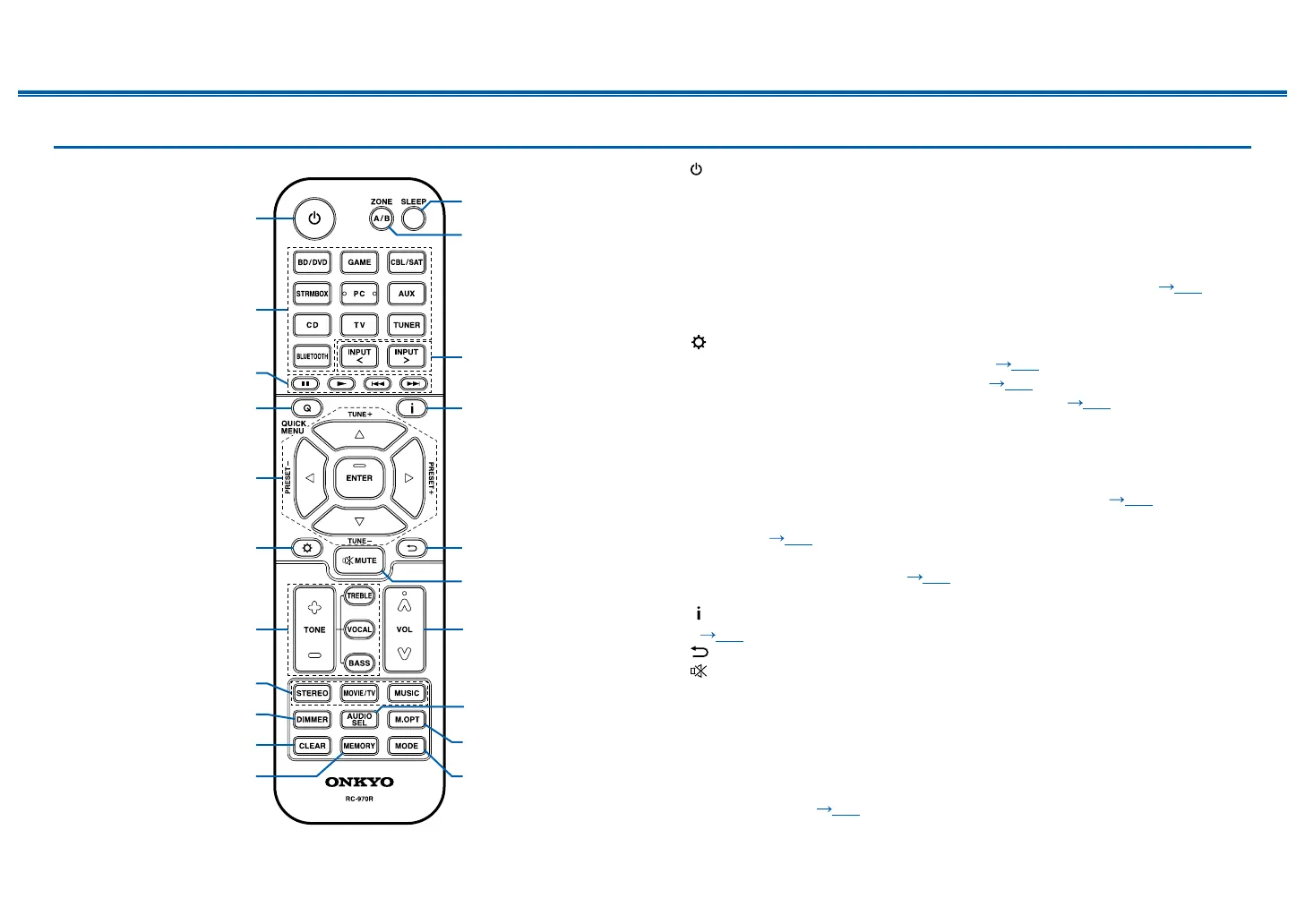

Remote Controller
1. ON/STANDBY button
2. Input selector buttons: Switches the input to be played.
3. Play buttons: Used for playback operation of a BLUETOOTH-enabled device. If the unit
is switched to "CEC MODE" using the MODE button, an HDMI CEC function-enabled AV
component can be operated. (Depending on the device, operation may not be possible.)
4. Q (QUICK MENU) button: Pressing this button during playback can make settings
such as "HDMI" and "Audio" quickly on the TV screen while playing. ( p81)
5. Cursor buttons and ENTER button: Select an item with the cursors, and press
ENTER to conrm your selection.
6. button: Display advanced setting items on the TV or the display to have a
more enjoyable experience with this unit. ( p65)
7. TONE button: Adjusts the sound quality. ( p48)
8. LISTENING MODE button: Select a listening mode ( p50).
9. DIMMER button: Switches the brightness of the display with three levels. It
cannot be turned off completely.
10. CLEAR button: Deletes all characters you have entered when entering text on
the TV screen.
11. MEMORY button: Used to register AM/FM radio stations. ( p42)
12. SLEEP button: Set the sleep timer. Select the time from "30 min", "60 min" and
"90 min". ( p49)
13. ZONE A/B button: Selects an audio output destination from among "ZONE A",
"ZONE B" and "ZONE A+B". ( p45)
14. Input selector cursors: Switches the input to be played.
15. button: Switches the information on the display and is used to operate RDS
( p44).
16. button: Returns the display to the previous state while setting.
17. button: Temporarily mutes audio. Press the button again to cancel muting.
18. VOLUME buttons
19. AUDIO SEL button: When a device is connected to two or more audio input
terminals for one input selector, you can select which audio input signal to play.
20. M.OPT button: Turns on/off the MUSIC OPTIMIZER function that improves the
quality of the compressed audio.
21. MODE button: Switches between automatic tuning and manual tuning for
AM/FM stations ( p40). Also, when an HDMI CEC function-enabled AV
component is connected to this unit, you can switch "3. Play buttons" between
"CEC MODE" and "RCV MODE" (normal mode).






















Onkyo HT-S3910 Specifications

General

Disc types supported	No
Optical disc player type	Not included
3D	Yes
Video formats supported	-
Audio decoders	DTS:X, Dolby Atmos
RMS rated power	155 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	10 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speakers RMS power	150 W
Front speaker frequency range	80 - 20000 Hz
Front speaker woofer diameter (imperial)	3 \
Satellite speaker frequency range	80 - 2000 Hz
Subwoofer frequency range	28 - 5000 Hz
Subwoofer driver diameter (imperial)	6.3 \
Product color	Black
HDMI in	4
SCART ports quantity	0
Number of HDMI outputs	1
Package depth	435 mm
Package width	535 mm
Package height	675 mm
Package weight	19000 g
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	445 W

Weight and Dimensions

Subwoofer weight	4600 g
Center speaker weight	600 g
Subwoofer dimensions (WxDxH)	230 x 331 x 389 mm
Front speaker dimensions (WxDxH)	98.5 x 106 x 140.5 mm
Center speaker dimensions (WxDxH)	244 x 102 x 96 mm
