Speaker Connections and "Speaker Setup" Settings
Connections
 (Note) Speaker Impedance
When using the included speakers, setup explained in this section is not required. When using speakers sold separately, use speakers with impedance of 4 Ω to
16 Ω. If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4 ohms" for "Speaker Setup" in the
Initial Setup section ( p83). When setting "Speaker Impedance" from the Setup menu, press on the remote controller, and set "2. Speaker" - "Conguration" -
"Speaker Impedance" ( p71) to "4 ohms".

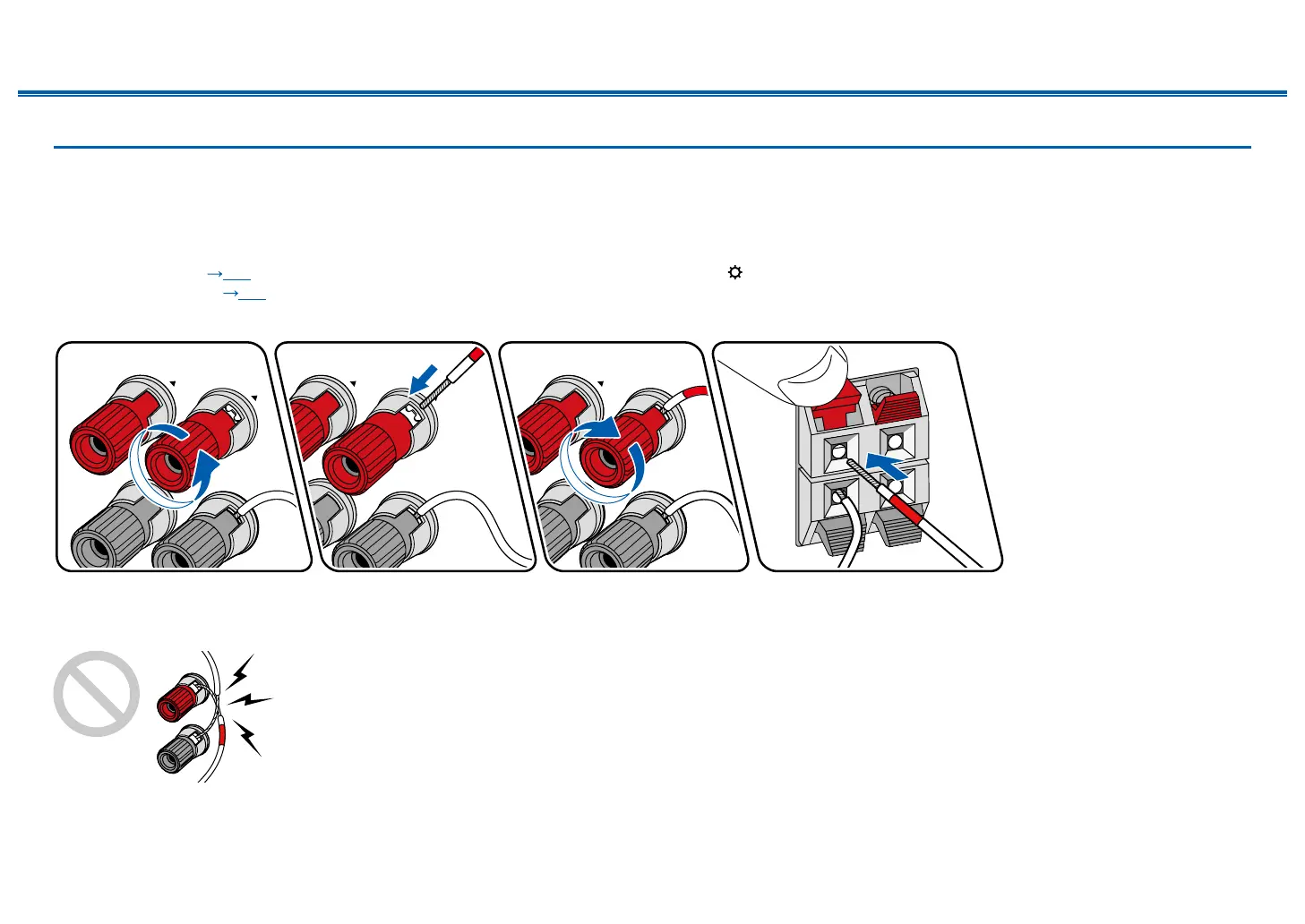

 Connect the Speaker Cables
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound
will not be reproduced properly due to reverse phase. The wires exposed from the tip of the speaker cable do not stick out of the speaker terminal when connecting. If
the exposed wires touch the rear panel, or the + side and - side wires touch each other, a malfunction may occur.

Onkyo HT-S3910 Specifications

General

Disc types supported	No
Optical disc player type	Not included
3D	Yes
Video formats supported	-
Audio decoders	DTS:X, Dolby Atmos
RMS rated power	155 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	10 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speakers RMS power	150 W
Front speaker frequency range	80 - 20000 Hz
Front speaker woofer diameter (imperial)	3 \
Satellite speaker frequency range	80 - 2000 Hz
Subwoofer frequency range	28 - 5000 Hz
Subwoofer driver diameter (imperial)	6.3 \
Product color	Black
HDMI in	4
SCART ports quantity	0
Number of HDMI outputs	1
Package depth	435 mm
Package width	535 mm
Package height	675 mm
Package weight	19000 g
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	445 W

Weight and Dimensions

Subwoofer weight	4600 g
Center speaker weight	600 g
Subwoofer dimensions (WxDxH)	230 x 331 x 389 mm
Front speaker dimensions (WxDxH)	98.5 x 106 x 140.5 mm
Center speaker dimensions (WxDxH)	244 x 102 x 96 mm
