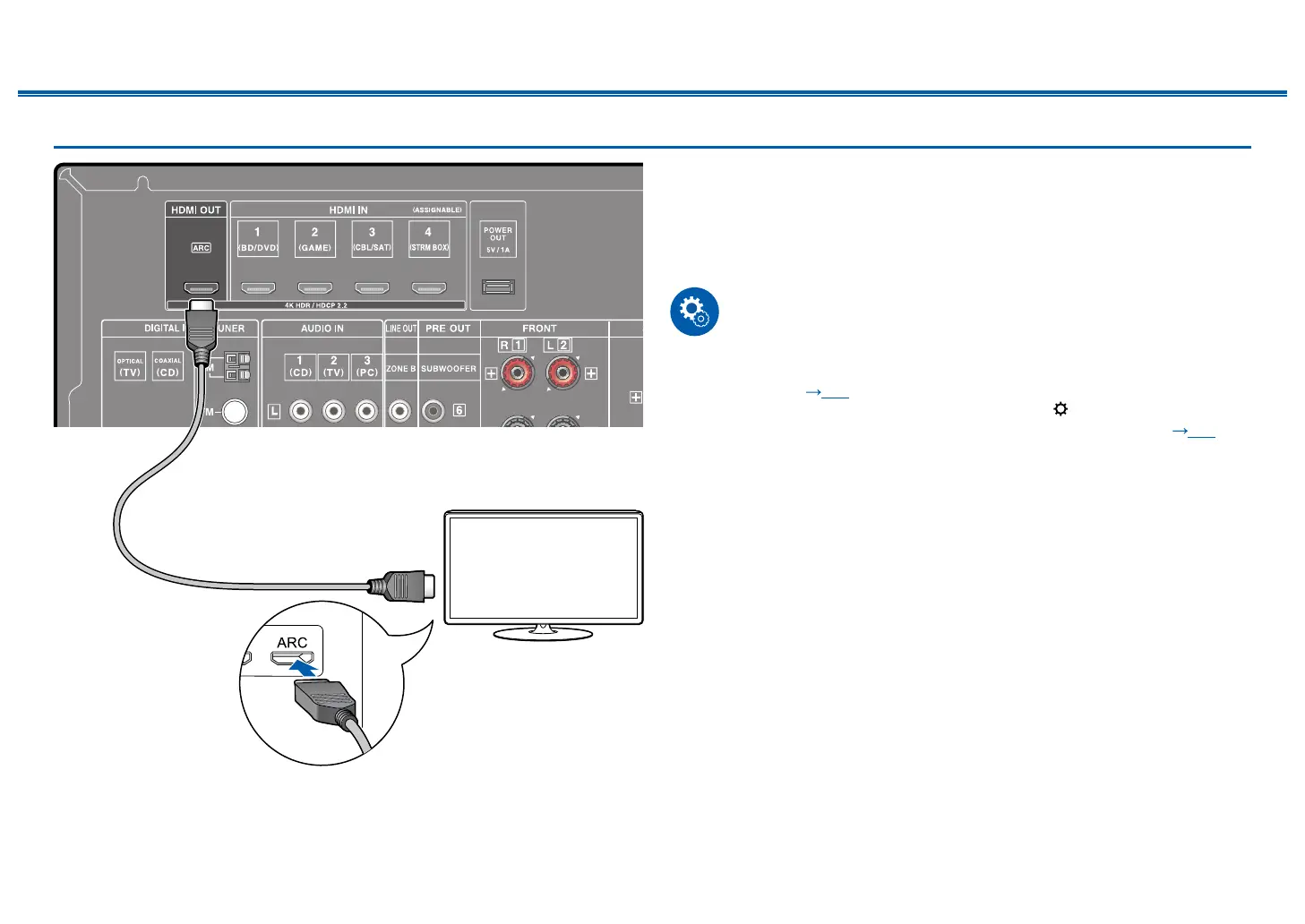

To ARC TV
If the TV supports the ARC (Audio Return Channel) function (*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the
TV for connection.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has a
"PREMIUM Certied Cable" label.
Setup
• Settings are required to use the ARC function. Select "Yes" for "2. ARC Setup"
in Initial Setup ( p83). If "No, Skip" is selected, settings are required in the
Setup menu after Initial Setup is completed. Press on the remote controller,
and set "5. Hardware" - "HDMI" - "Audio Return Channel" to "On". ( p78)
• For detailed settings for TV connection, CEC function and audio output, refer
to the instruction manual of the TV.
(*) ARC function: This function transmits the audio signals of the TV via an
HDMI cable, and plays the audio of the TV on this unit. Connection to an ARC-
compatible TV is complete with one HDMI cable. To check if the TV supports the
ARC function, refer to the instruction manual of the TV, etc.
a HDMI cable
a
TV

Onkyo HT-S3910 Specifications

General

Disc types supported	No
Optical disc player type	Not included
3D	Yes
Video formats supported	-
Audio decoders	DTS:X, Dolby Atmos
RMS rated power	155 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	10 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speakers RMS power	150 W
Front speaker frequency range	80 - 20000 Hz
Front speaker woofer diameter (imperial)	3 \
Satellite speaker frequency range	80 - 2000 Hz
Subwoofer frequency range	28 - 5000 Hz
Subwoofer driver diameter (imperial)	6.3 \
Product color	Black
HDMI in	4
SCART ports quantity	0
Number of HDMI outputs	1
Package depth	435 mm
Package width	535 mm
Package height	675 mm
Package weight	19000 g
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	445 W

Weight and Dimensions

Subwoofer weight	4600 g
Center speaker weight	600 g
Subwoofer dimensions (WxDxH)	230 x 331 x 389 mm
Front speaker dimensions (WxDxH)	98.5 x 106 x 140.5 mm
Center speaker dimensions (WxDxH)	244 x 102 x 96 mm
