Connecting the AV controller—Continued
Using Dipole Speakers
You can use dipole speakers for the surround left and
right, surround back left and right speakers. Dipole
speakers output the same sound in two directions.
Dipole speakers typically have an arrow printed on them
to indicate how they should be positioned. The surround
left and right dipole speakers should be positioned so
that their arrows point toward the TV/screen, while the
surround back left and right and front high left and right
and front wide left and right dipole speakers should be
positioned so that their arrows point toward each other,
as shown.
You can connect the AV controller to a multichannel power amplifier with RCA input jacks by using a multichannel
RCA audio cable or several stereo RCA audio cables.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
Note:
* Specify crossover frequency for the channel that you want to output in “Speaker Configuration” (see page 90).
1
1
5
6
7 8
2
3
4
5
7 8
6
1
9 10
11 12
2
3
4
9 10
11 12
1
TV/screen
TV/screen
1. Subwoofers
2. Front left speaker
3. Center speaker
4. Front right speaker
5. Surround left speaker
6. Surround right speaker
7. Surround back left
speaker
8. Surround back right
speaker
9. Front high left speaker
10.Front high right speaker
11.Front wide left speaker
12.Front wide right speaker
Dipole speakers
Normal speakers

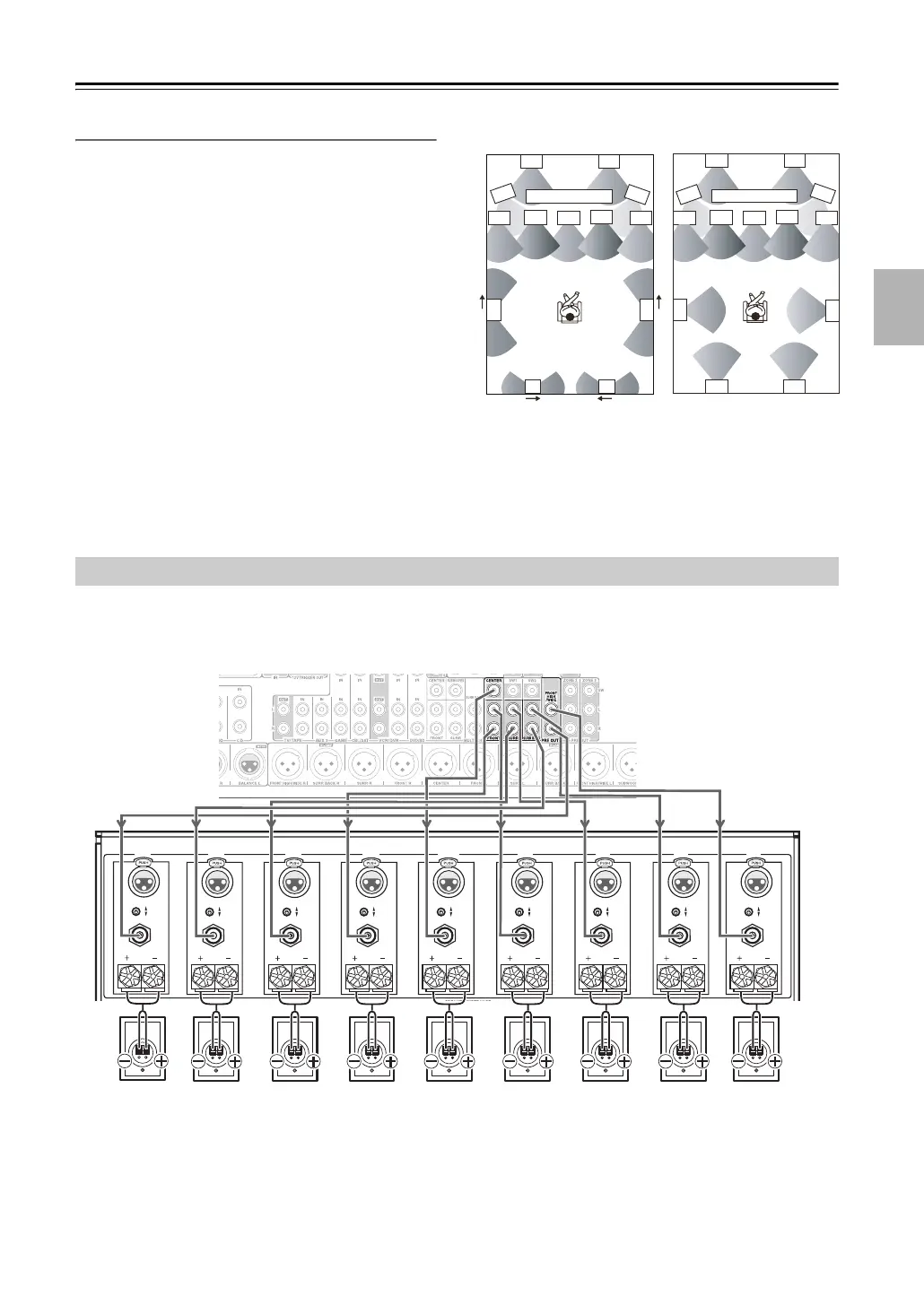

Connecting a Power Amplifier with RCA Inputs
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET
SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURR OUND B A CK
RIGHT
SURR OUND
RIGHT
12V TRIGGER
IN OUT
SURR OUND
LEFT
CENTER
FR ONT
LEFT
SURR OUND B A CK
LEFT
FR ONT
RIGHT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
FRONT HIGH/
FRONT WIDE
LEFT
INPUT
SELECT
OUTPUT
FRONT HIGH/
FRONT WIDE
RIGHT
INPUT
SELECT
OUTPUT
Front high/
Front wide/
right speaker*
AV controller
Multichannel
power amplifier
Center
speaker
Front left
speaker
Surround
left
speaker
Surround
right
speaker
Surround
back right
speaker
Front right
speaker
Surround
back left
speaker
Front high/
Front wide/
left speaker*
