Onkyo PR-SC5507 User Manual

21
Connecting the AV controller—Continued
The FRONT L/R and SURR BACK L/R outputs can be used with front speakers and surround back speakers, respec-
tively, or bi-amped to provide separate tweeter and woofer feeds for a pair of front speakers that support bi-amping,
providing improved bass and treble performance.
• When bi-amping is used, the AV controller is able to feed up to 7.2 speakers in the main room.
• For bi-amping, the FRONT L/R outputs feed the front speakers’ woofer terminals. And the SURR BACK L/R
outputs feed the front speakers’ tweeter terminals.
• Once you’ve completed the bi-amping connections shown below and turned on the AV controller, you must set
the “Speakers Type(Front)” setting to “Bi-Amp” to enable bi-amping (see page 53).
Important:
• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’
tweeter (high) and woofer (low) terminals.
• Bi-amping can only be used with speakers that support bi-amping. Refer to your speaker manual.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.

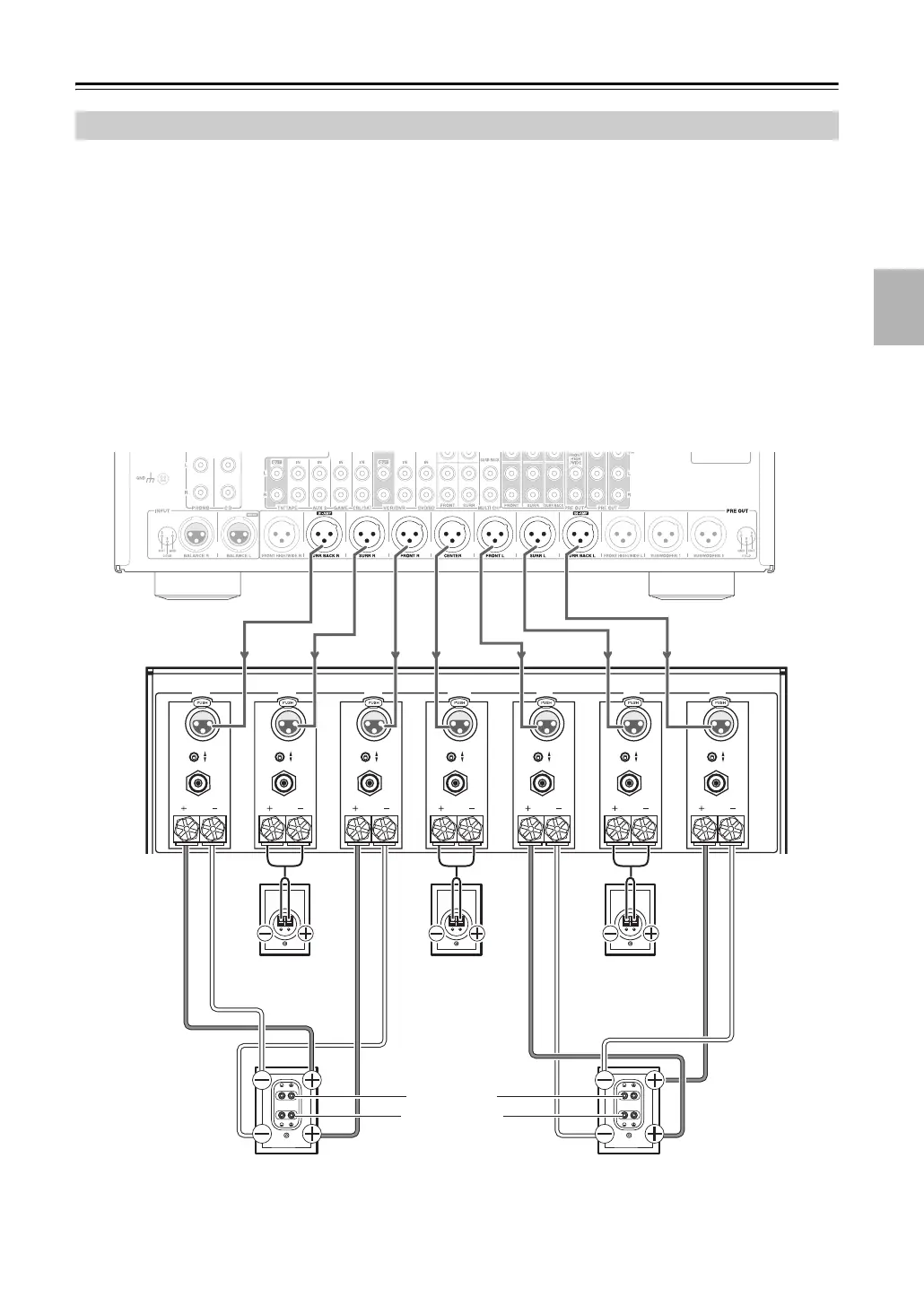

Bi-amping the Front Speakers
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET
SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURR OUND B A CK
RIGHT
SURR OUND
RIGHT
12V TRIGGER
IN OUT
SURR OUND
LEFT
CENTER
FR ONT
LEFT
SURR OUND B A CK
LEFT
FR ONT
RIGHT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
AV controller
Multichannel
power amplifier
Surround right
speaker
Front right speaker
Center speaker
Front left speaker
Surround left
speaker
Tweeter (high)
Woofer (low)
