41

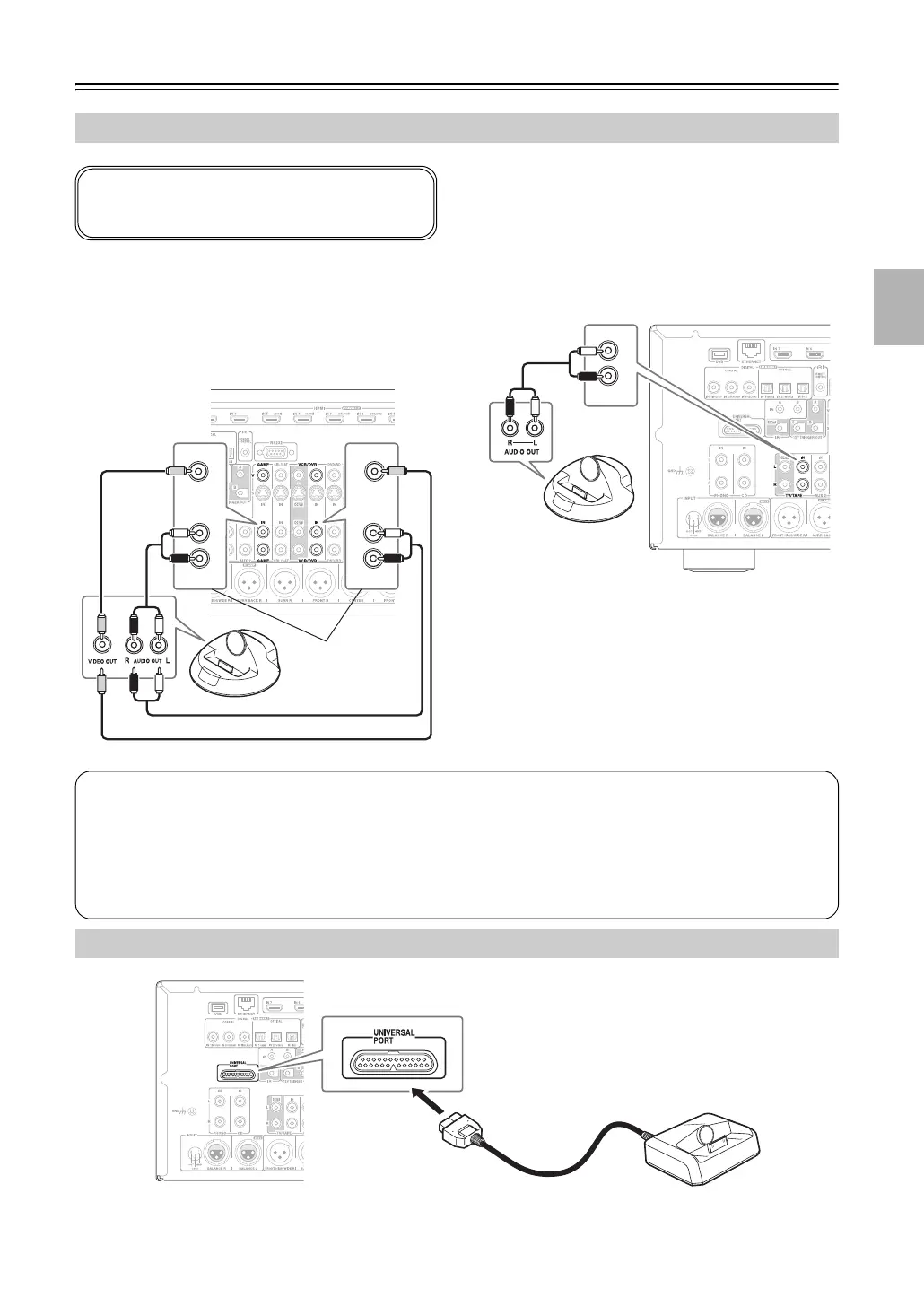

Connecting the AV controller—Continued
■ If Your iPod Supports Video:
Connect your RI Dock’s audio output jacks to the
AV controller’s GAME IN or VCR/DVR IN L/R
jacks, and connect its video output jack to the AV
controller’s GAME IN V or VCR/DVR IN V jack.
(Onkyo DS-A2 hookup shown below.)
■ If you have an Onkyo DS-A1 RI Dock
Connect its video output jack to the AV controller’s
GAME IN S or VCR/DVR IN S jack.
■ If Your iPod Doesn’t Support Video:
Connect your RI Dock’s audio output jacks to the
AV controller’s TV/TAPE IN L/R jacks. (Onkyo DS-
A2 hookup shown below.)
Note:
When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases.
Connecting an RI Dock
Not all iPod models output video. For information
about which iPod models are supported by the RI
Dock, see the RI Dock’s instruction manual.
L
R
IN
GAME
V
GAME
L
R
IN
IN
VCR/DVR
VCR/DVR
V
V
IN
Make either
connection.
L
R
IN
TV/TAPE
Connecting a Universal Port Option Series
Notes:
• Enter the appropriate remote control code before using the AV controller’s remote controller for the first time
(see page 135).
• Connect the RI Dock to the AV controller with an u cable (see page 42).
• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.
• Set the AV controller’s Input Display to “DOCK” (see page 55).
• See the RI Dock’s instruction manual for more information.
ex. UP-A1
To Next Page
