Onkyo TX-RZ900 User Manual

Amp Diag Mode after Abnormal Conditions
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6
COMMON
Self-diagnostics
This function is for avoiding the rupture of electrolytic capacitors with amplifier circuit
failure during power-ON.
Operation of Self-diagnostic
Self-diagnostic will start at the timing of next power on, after goes to the protect mode
by Current detection or DC voltage detection.
Only On/Standby key could work in this mode. Also remote control does not work.
However, the CLEAR operation is enabled.
During Self-diagnostic, the power supply for amplifier circuit become low voltage
state(SEC1-LOW), and the speaker relay will be turned off. Then, MPU will check each
amplifier circuits Internally by entering the test signal (20 kHz,-20 dBFS sine wave) to
each channel from DSP.
MPU will judge the amplifier circuit is good or not from VOLH value.
The normal range of VOLH value is 0.04 V < VOLH < 0.20 V.
If VOLH value is in the out of this range, it will be judged as NG (No good).
No problem found
When protected by current detection, and no problem found, "CHECK SP WIRE“ will be displayed.
In this State, Only the On/Standby key is effective. And if do not anything for 3 m
inutes, unit goes
into standby automatically.
When protected by a DC voltage detection, and no problem found, unit goes into normal
operation.
Problem found
When judged as there is a problem on any channel, the information of channel that has a problem
will be displayed as in the right figure.
In this State, Only the On/Standby key is effective. Also remote control does not work. If do not
anything for 3 minutes, unit goes into standby automatically. This state will keep also after unit
turn on/off, or AC unplugged.
the power supply for amplifier circuit become low voltage state(SEC1-LOW), and the speaker
relay will be turned off.
Display of during Self-diagnostics
A M P D i a g M o d e
2 Line FL tube type
“Mode” This part display the channel which is currently checked. (E.g. "[FL]", etc.)
A M P D i a g M o d e
1 Line FL tube type
Display of when problem found
N G C H :
L C R S L S R B L B R
N G : L C R S L S R B L B R
2 Line FL tube type
1 Line FL tube type

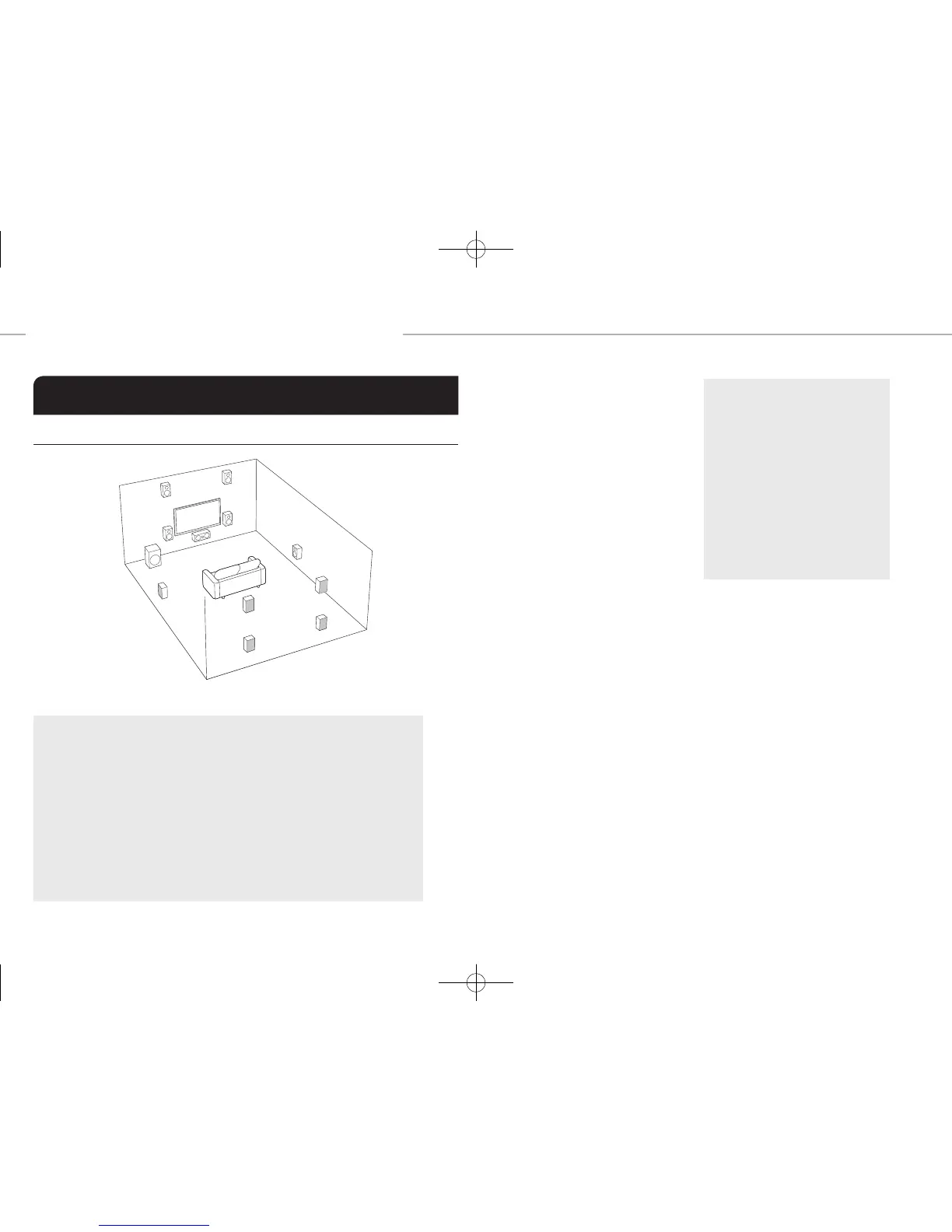

L
C
R
S L
S R
B L
B R
 Front L channel
 Center channel
 Front R channel
 Surround L channel
 Surround R channel
 Surround back R channel
 Surround back L channel

Onkyo TX-RZ900 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	235 W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	3
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	-
Display	LCD
Product color	Black
Audio decoders	DTS
Apple docking compatibility	iPad, iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	95 W
THX-certified	THX Select2 Plus
Package weight	21500 g

Weight and Dimensions

Depth	433.5 mm
Width	435 mm
Height	201.5 mm
Weight	18000 g
