Onkyo TX-RZ900 User Manual

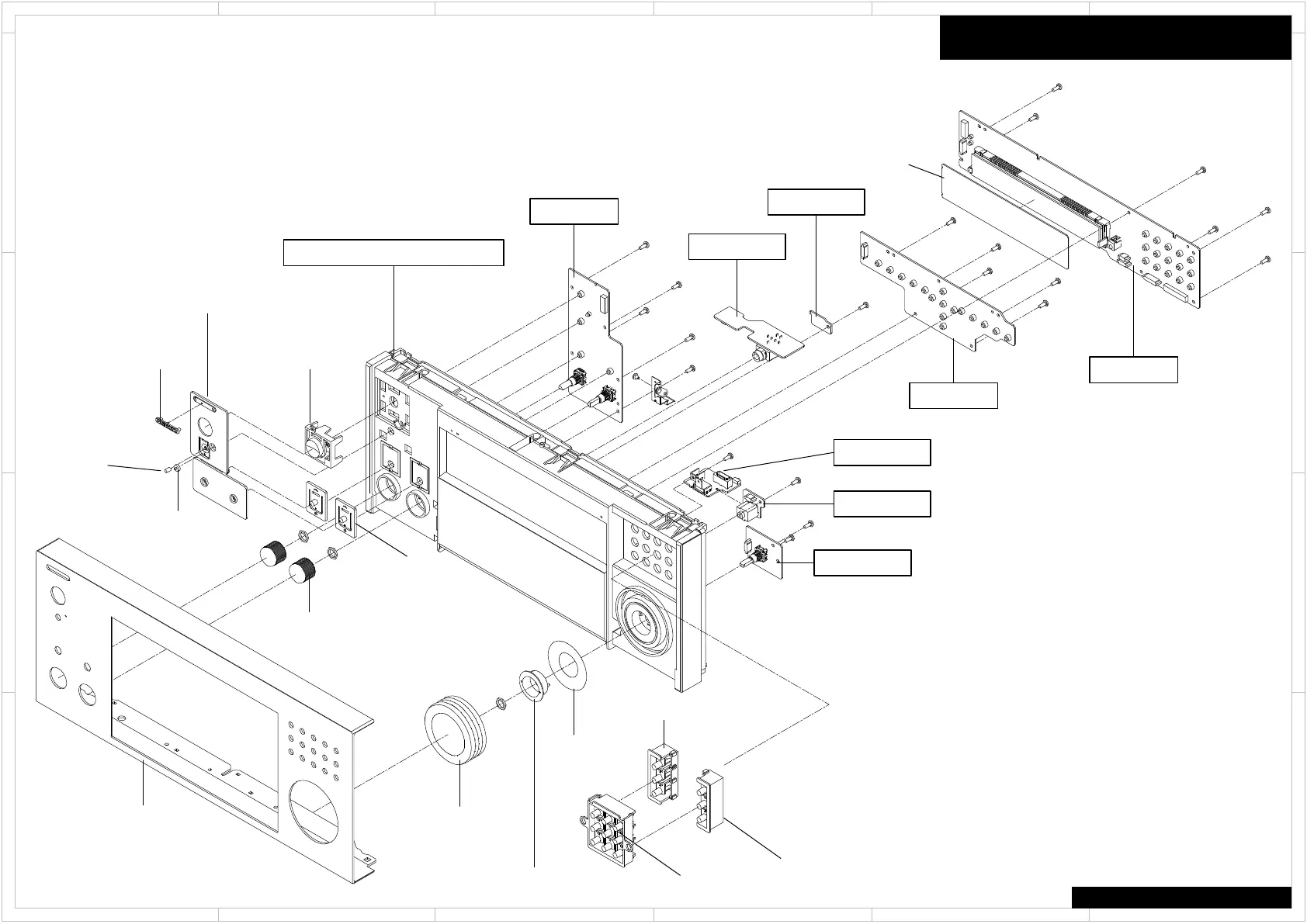

Exploded View
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6
TX-RZ800
Front Section 1
A412
BASW-1812
BASW-1811
BAETC-1828
BAETC-1830
BAETC-1814
BAETC-1813
BAHDM-1823
BADIS-1810
A442
A445
A441
A480(A481)
x 2pcs.
A443
x 2pcs.
Refer to Front Section 2
A455
A482
A440
A444
A426
A427
A446
A448
A447

Onkyo TX-RZ900 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	235 W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	3
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	-
Display	LCD
Product color	Black
Audio decoders	DTS
Apple docking compatibility	iPad, iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	95 W
THX-certified	THX Select2 Plus
Package weight	21500 g

Weight and Dimensions

Depth	433.5 mm
Width	435 mm
Height	201.5 mm
Weight	18000 g
