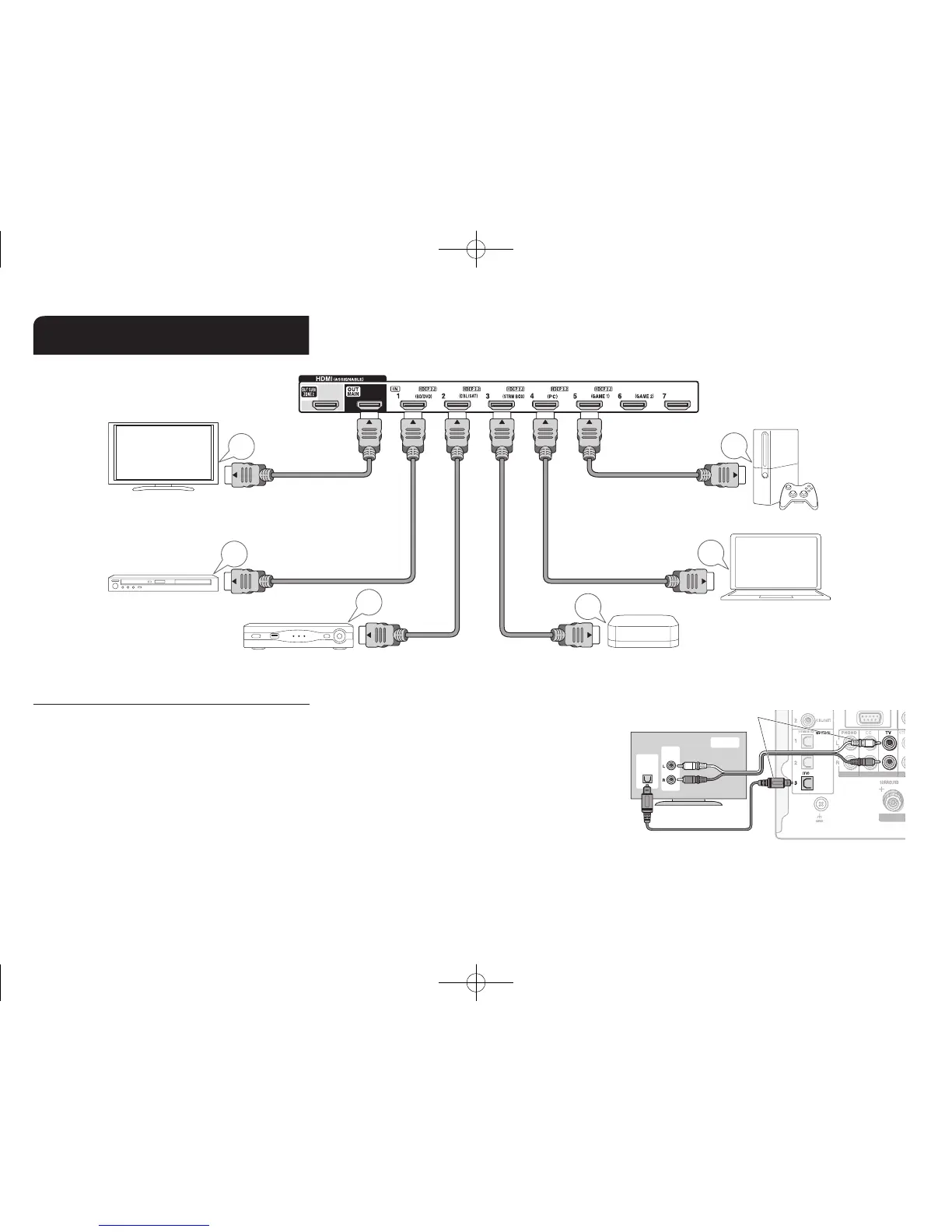

Onkyo TX-RZ900 User Manual

Adjustment
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6

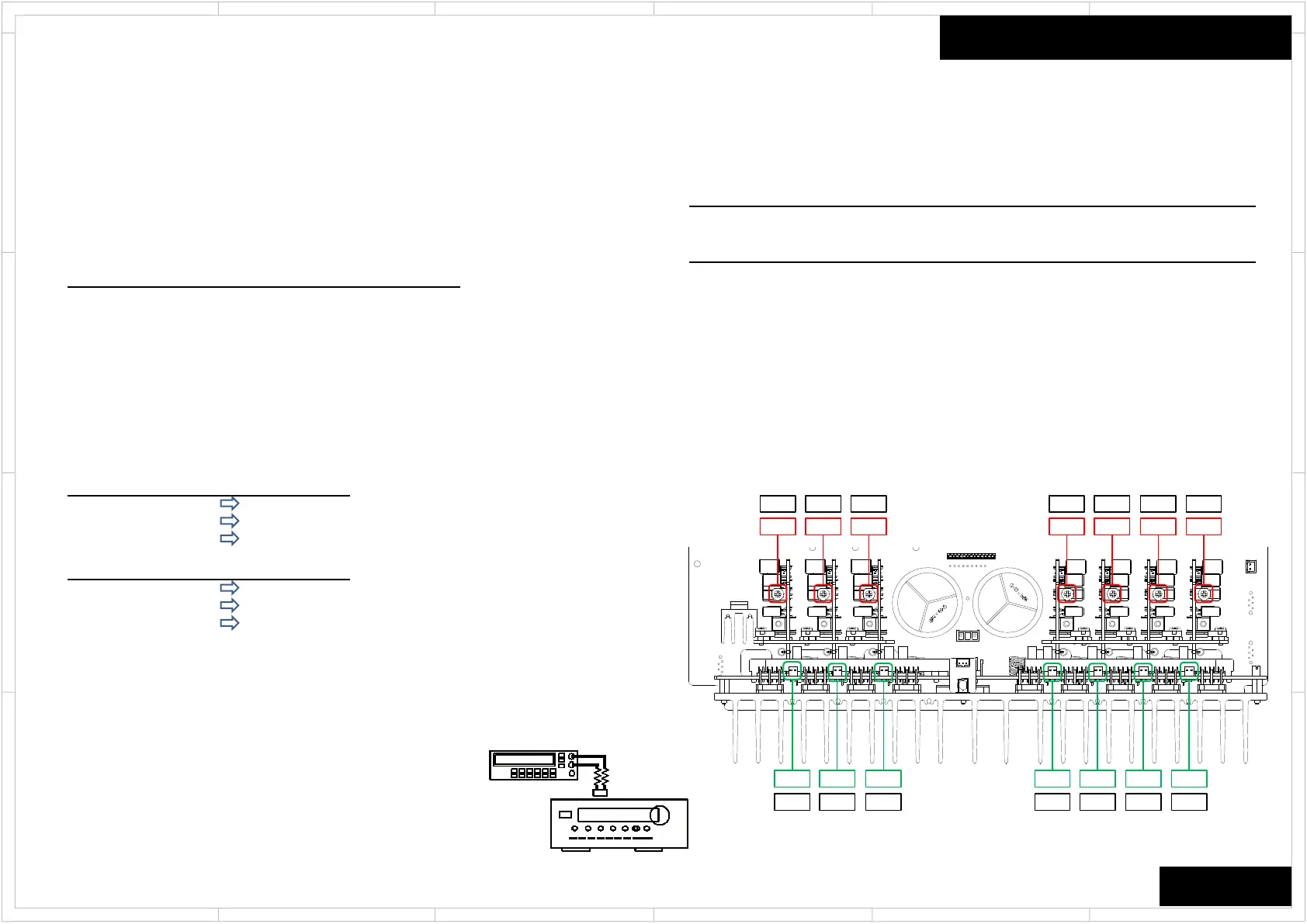

How to Adjust Idling
TX-RZ800/900
DTR-50.7/60.7
Final adjustment
Chanel Measurement
Points
Adjustment
Points
Adjustment Value
FL P6090 R6040 (BACLA-1787)
9mV ~ 11mV
FR P6091 R6041 (BACLA-1788)
C P6092 R6042 (BACLA-1789)
5mV ~ 7mV
SL P6093 R6043 (BACLA-1790)
SR P6094 R6044 (BACLA-1791)
SBL P6095 R6045 (BACLA-1792)
SBR P6096 R6046 (BACLA-1793)
Applied
to the following models.
Model : TX-RZ800, RZ900, DTR-50.7, 60.7 (Except DHC-60.7)
a.
Pre-adjustment
Before POWER ON, keep the following resisters to minimum position.
No-load and quiescent state immediately after POWER ON, to set below voltage resistor
voltage measuring terminals.
Channel
L/R
C/SL/SR/SBL/SBR
Terminals
P6090, 6091
P6092 ~ 6096
Registers
R6040,
6041
R6042 ~ 6046
Voltage
10mV
6mV
b.
Aging
Heat run during the following the time.
Time : 4 ~ 6 minutes
c.
Final adjustment
After the aging of above time to readjust in the steps below.
L/R
Below
9mV
9mV
Between
9 ~ 11mV
Do
not adjust.
Over
11mV
11mV
C/SL/SR/SBL(SW
)/SBR
Below
5mV
5mV
Between
5 ~ 7mV
Do not adjust
.
Over
7mV
7mV
Connection
DC Volt meter
AVR
100ohms,
1/4W
C SR SBR FR FL SBL SL
P6092 P6094 P6096 P6091 P6090 P6095 P6093
C SR SBR FR FL SBL SL
R6042 R6044 R6046 R6041 R6040 R6045 R6043

Onkyo TX-RZ900 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
Power output per channel (20-20KHz@8 Ohm)	235 W
HDMI in	8
AC (power) in	Yes
Remote (IR) input	1
Composite video in	3
Component video (YPbPr/YCbCr) in	2
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	-
Display	LCD
Product color	Black
Audio decoders	DTS
Apple docking compatibility	iPad, iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	95 W
THX-certified	THX Select2 Plus
Package weight	21500 g

Weight and Dimensions

Depth	433.5 mm
Width	435 mm
Height	201.5 mm
Weight	18000 g
